Home >> Chrysler >> 2003 >> 300M Pro-Am Edition >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Memory Seat - Symptoms >> Symptom: *DRIVER MIRROR INOPERATIVE FROM MEMORY >> Diagnostic Procedure

Diagnostic Procedure

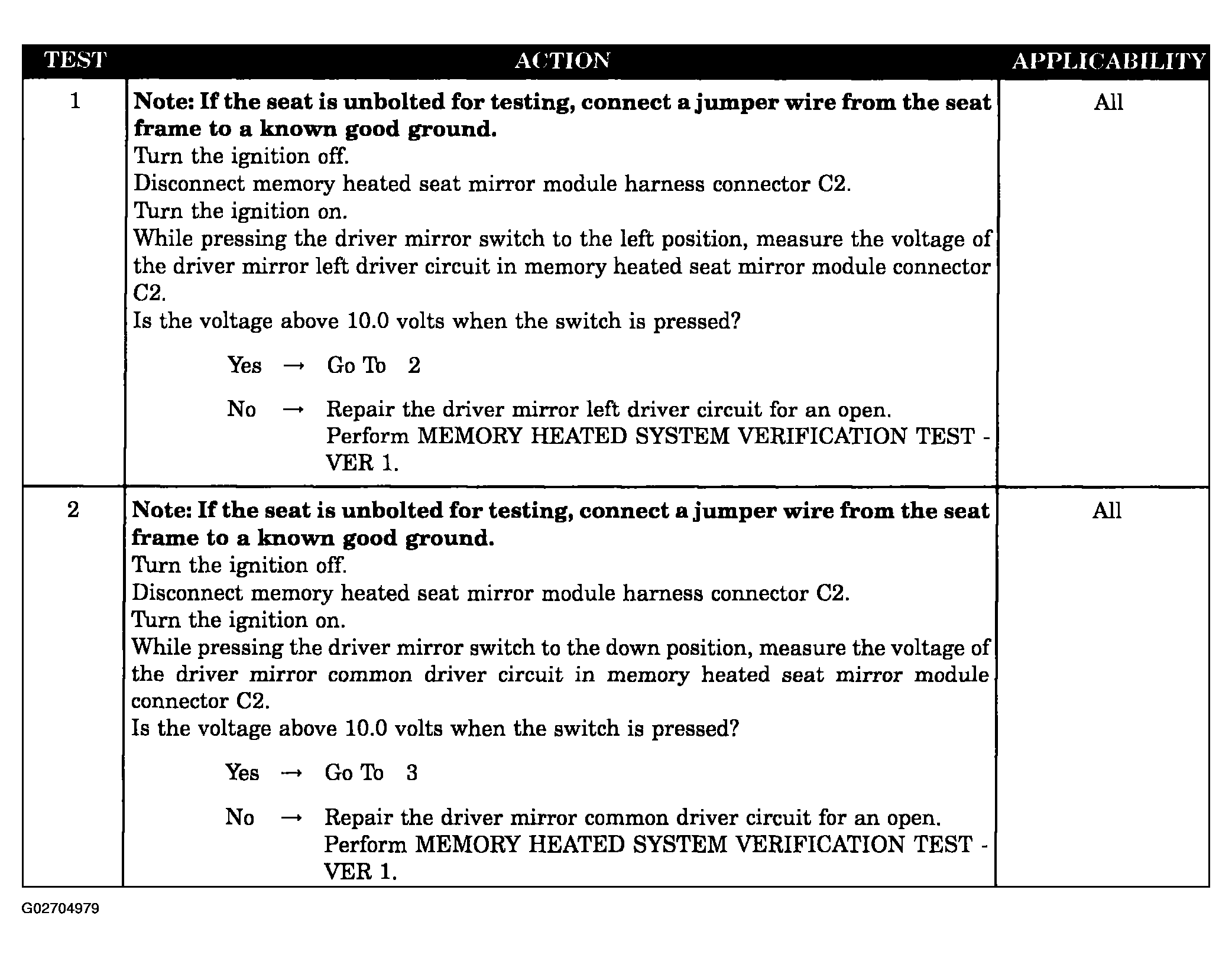

Fig 1: Driver Mirror Inoperative From Memory - Diagnostic Procedure (1 Of 2)
G02704979Courtesy of DAIMLERCHRYSLER CORP.

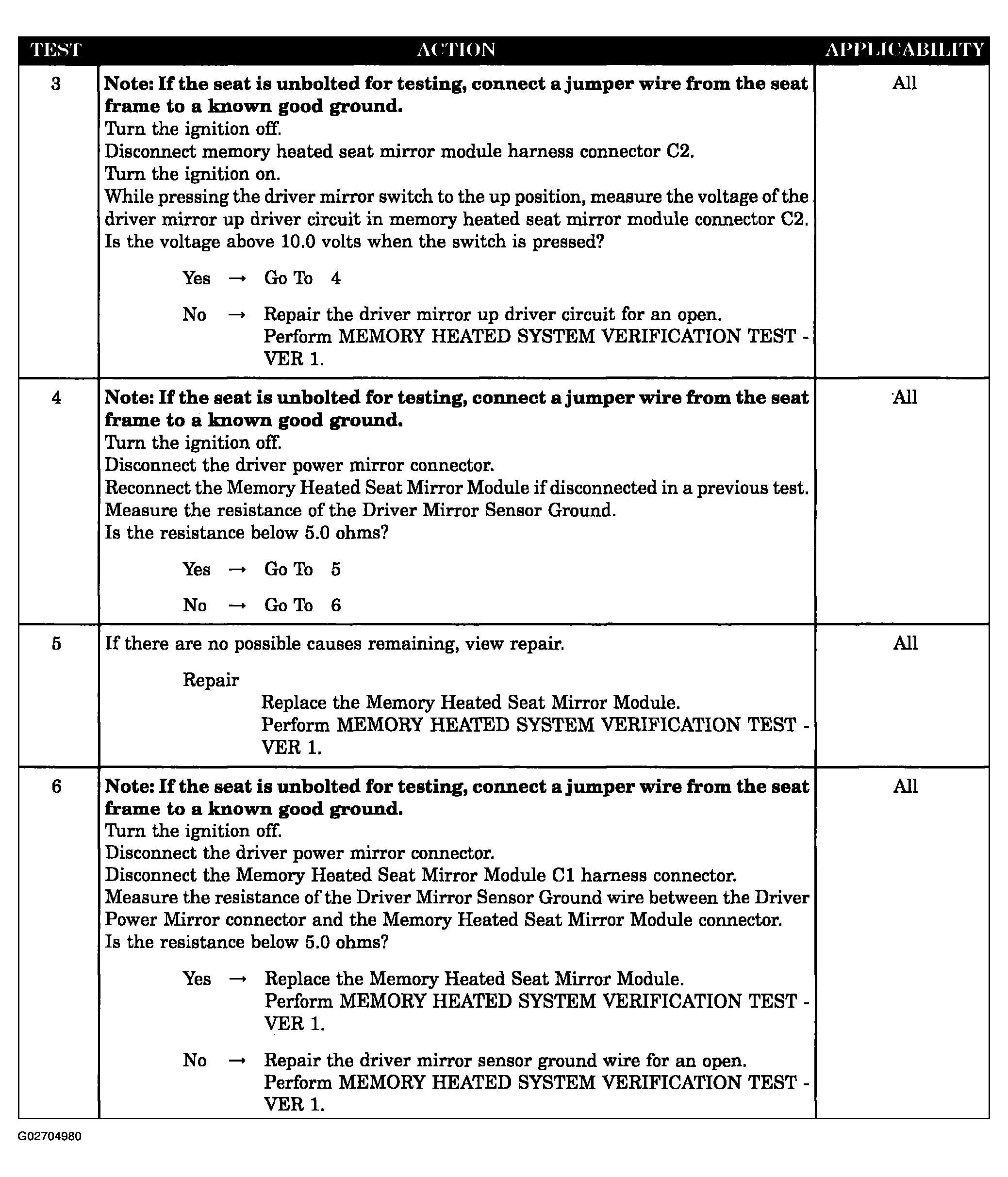

Fig 2: Driver Mirror Inoperative From Memory - Diagnostic Procedure (2 Of 2)
G02704980Courtesy of DAIMLERCHRYSLER CORP.
