Diagnostic Procedure

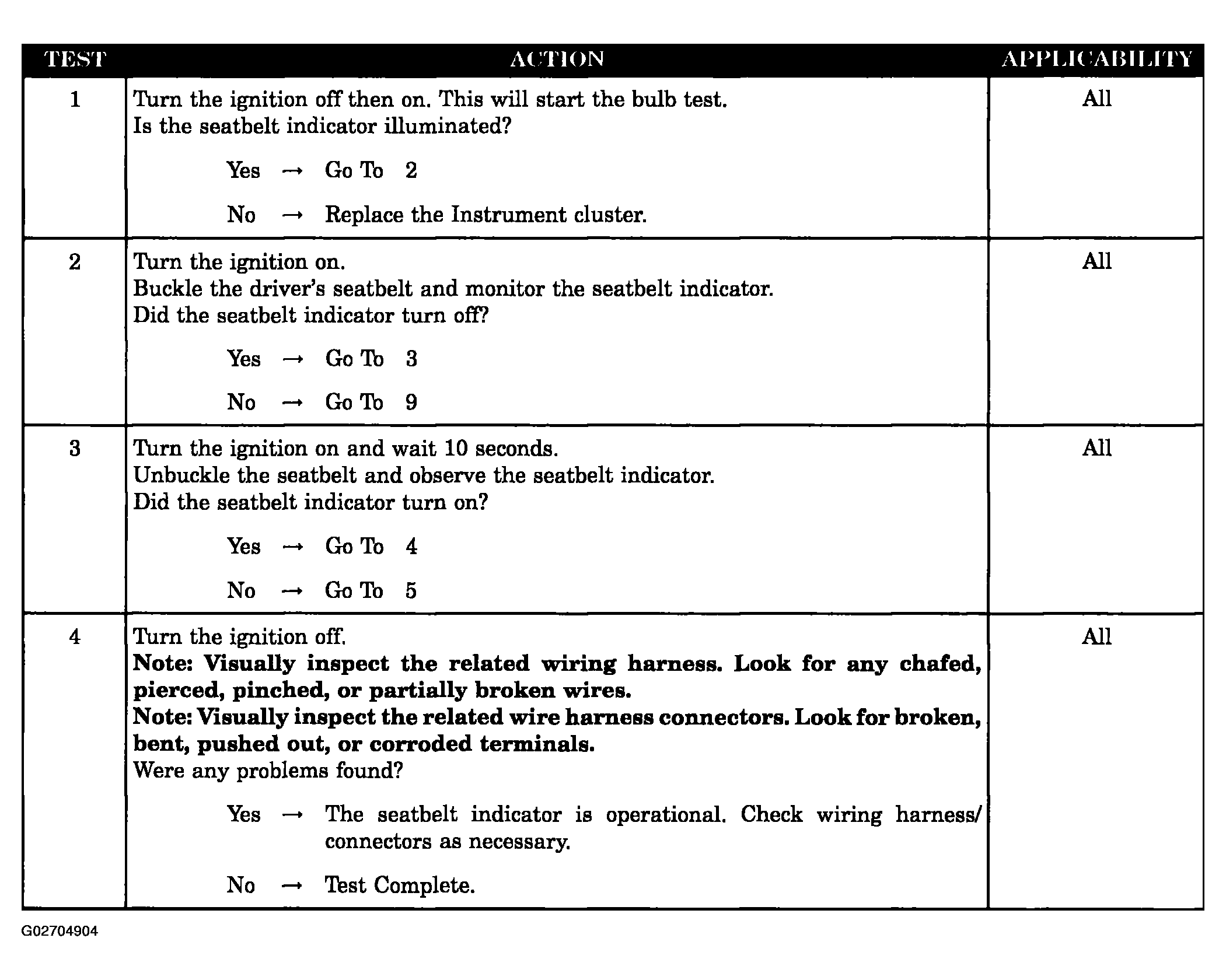

Fig 1: Seat Belt Indicator Not Operating Properly - Diagnostic Procedure (1 Of 3)
G02704904Courtesy of DAIMLERCHRYSLER CORP.

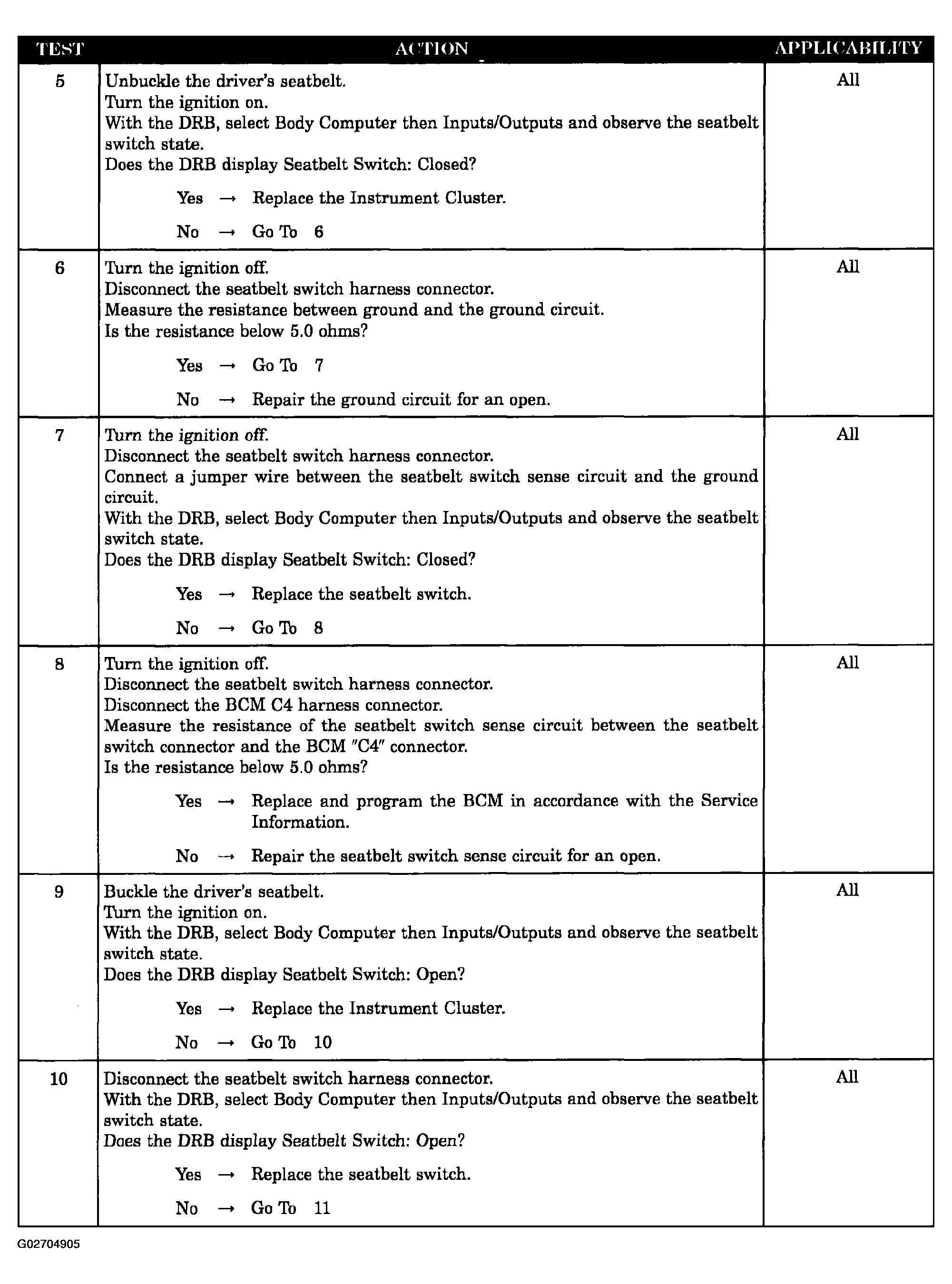

Fig 2: Seat Belt Indicator Not Operating Properly - Diagnostic Procedure (2 Of 3)
G02704905Courtesy of DAIMLERCHRYSLER CORP.

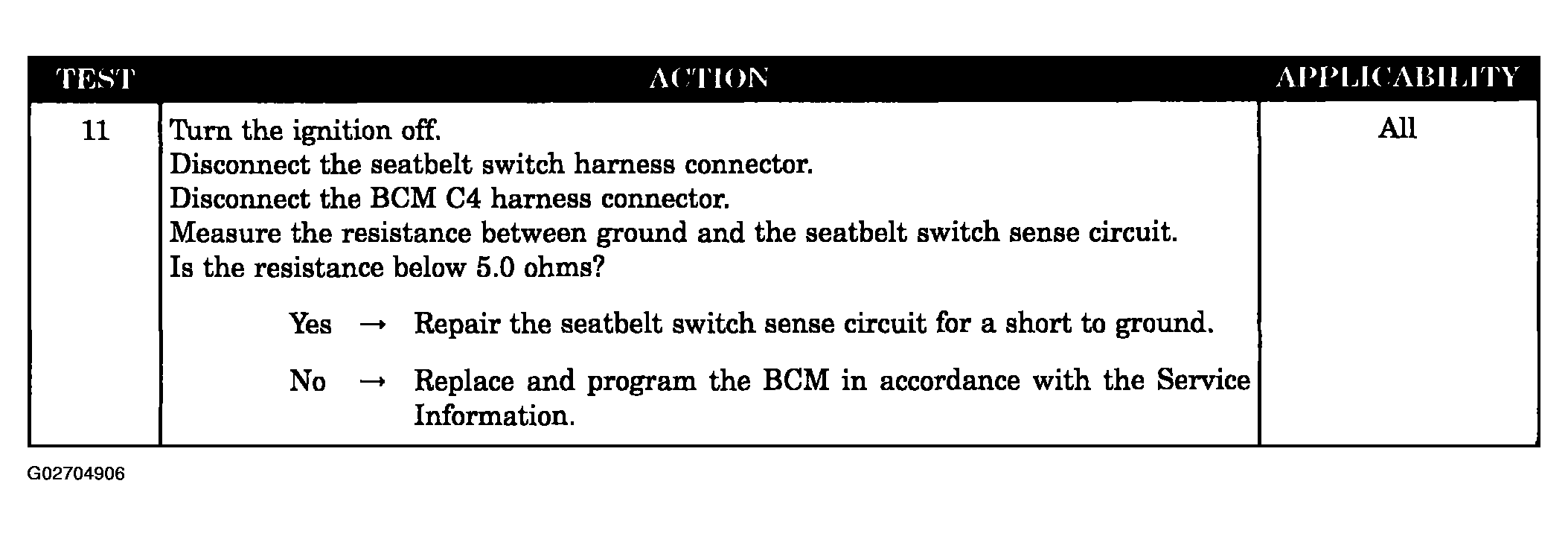

Fig 3: Seat Belt Indicator Not Operating Properly - Diagnostic Procedure (3 Of 3)
G02704906Courtesy of DAIMLERCHRYSLER CORP.
