Diagnostic Procedure

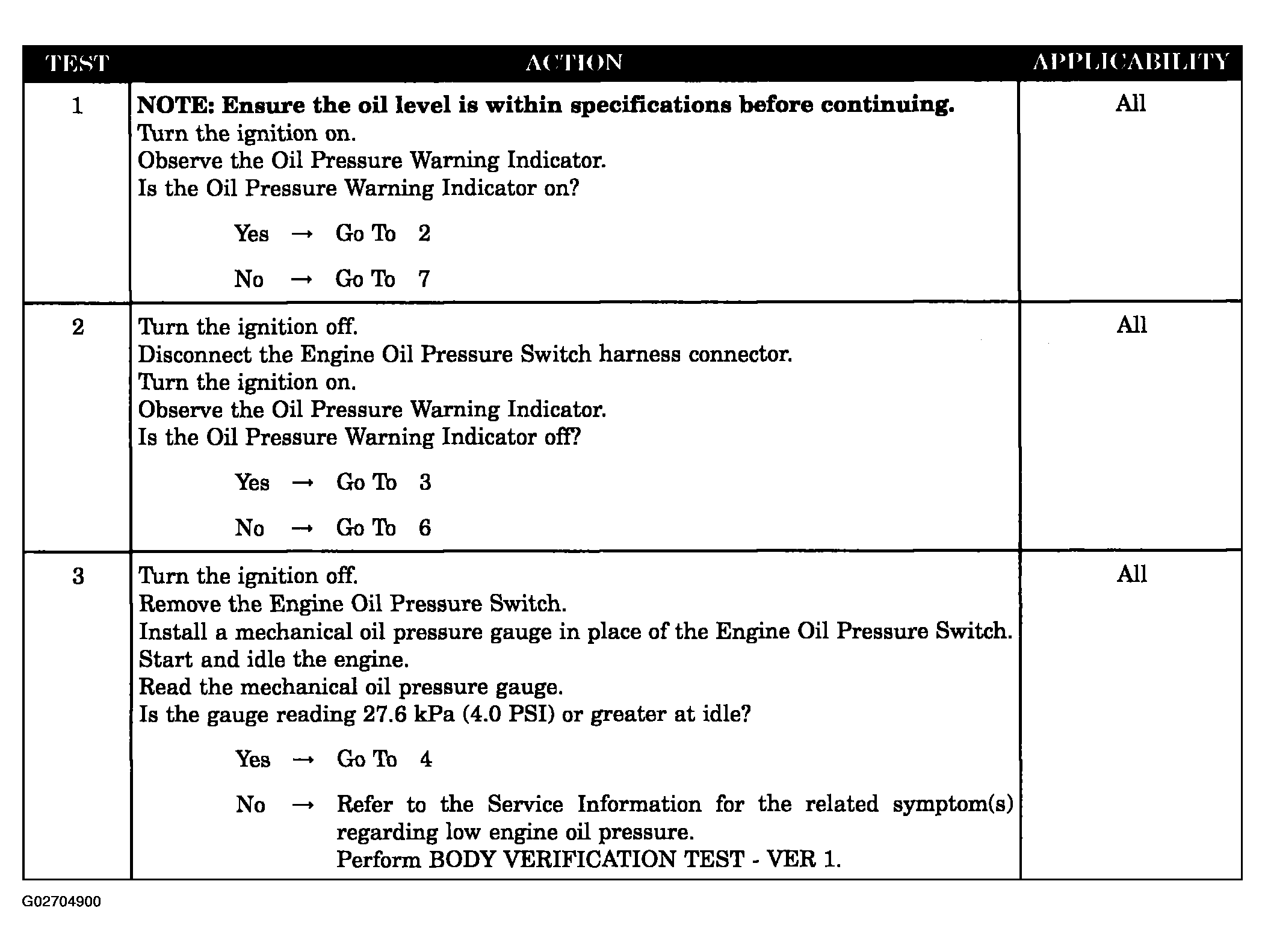

Fig 1: Oil Pressure Warning Indicator Not Operating Properly - Diagnostic Procedure (1 Of 3)
G02704900Courtesy of DAIMLERCHRYSLER CORP.

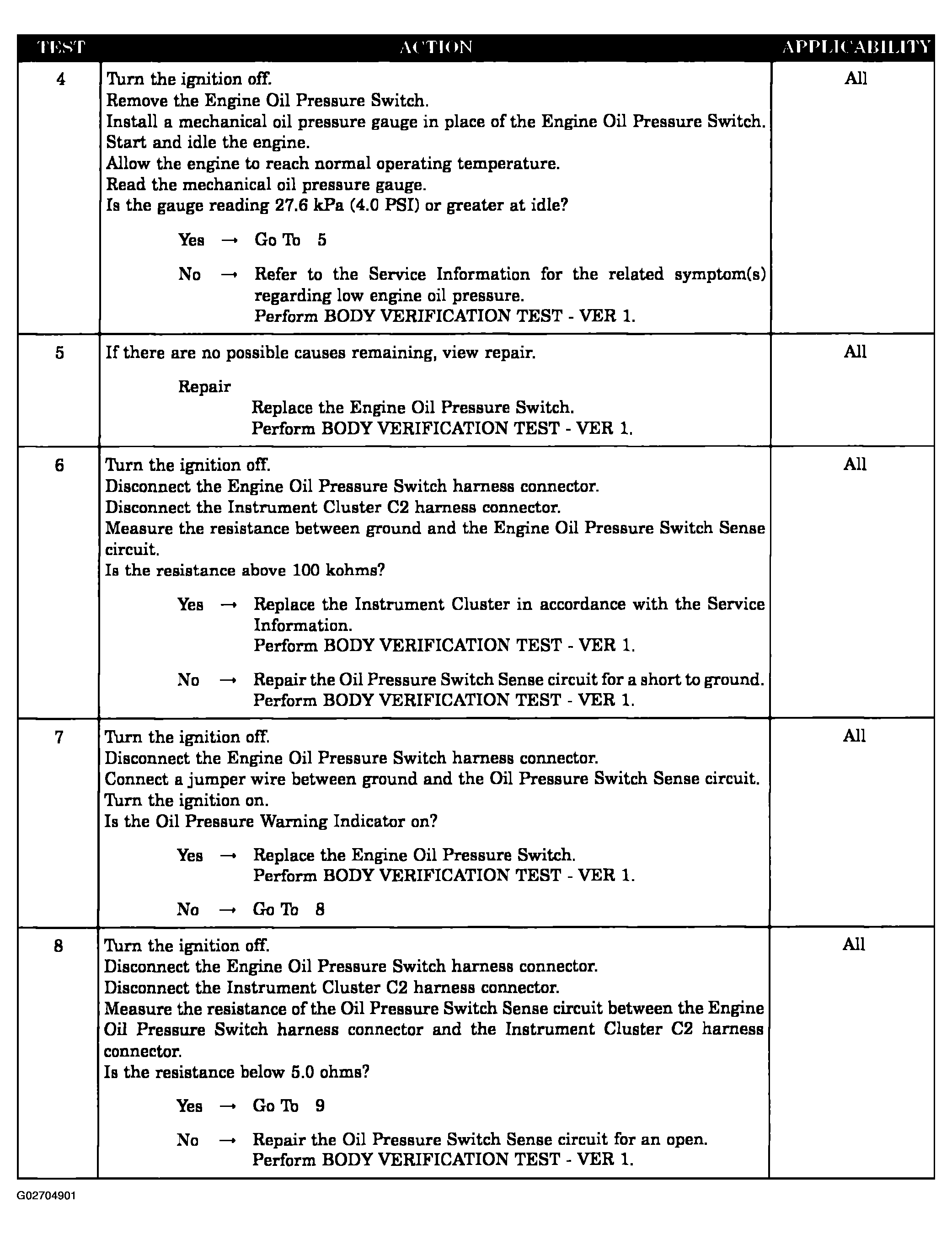

Fig 2: Oil Pressure Warning Indicator Not Operating Properly - Diagnostic Procedure (2 Of 3)
G02704901Courtesy of DAIMLERCHRYSLER CORP.

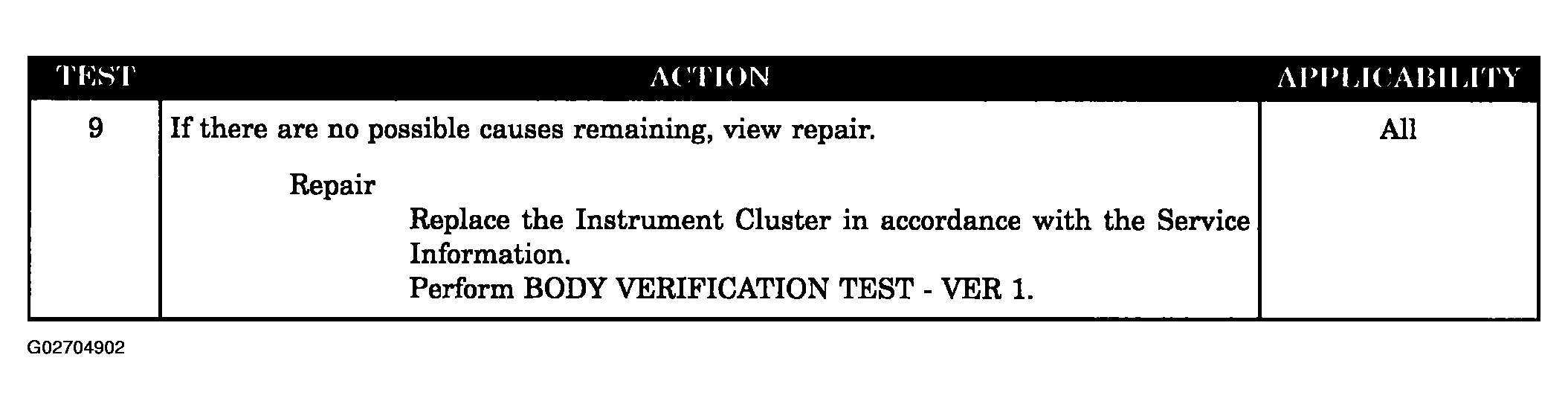

Fig 3: Oil Pressure Warning Indicator Not Operating Properly - Diagnostic Procedure (3 Of 3)
G02704902Courtesy of DAIMLERCHRYSLER CORP.
