Diagnostic Procedure

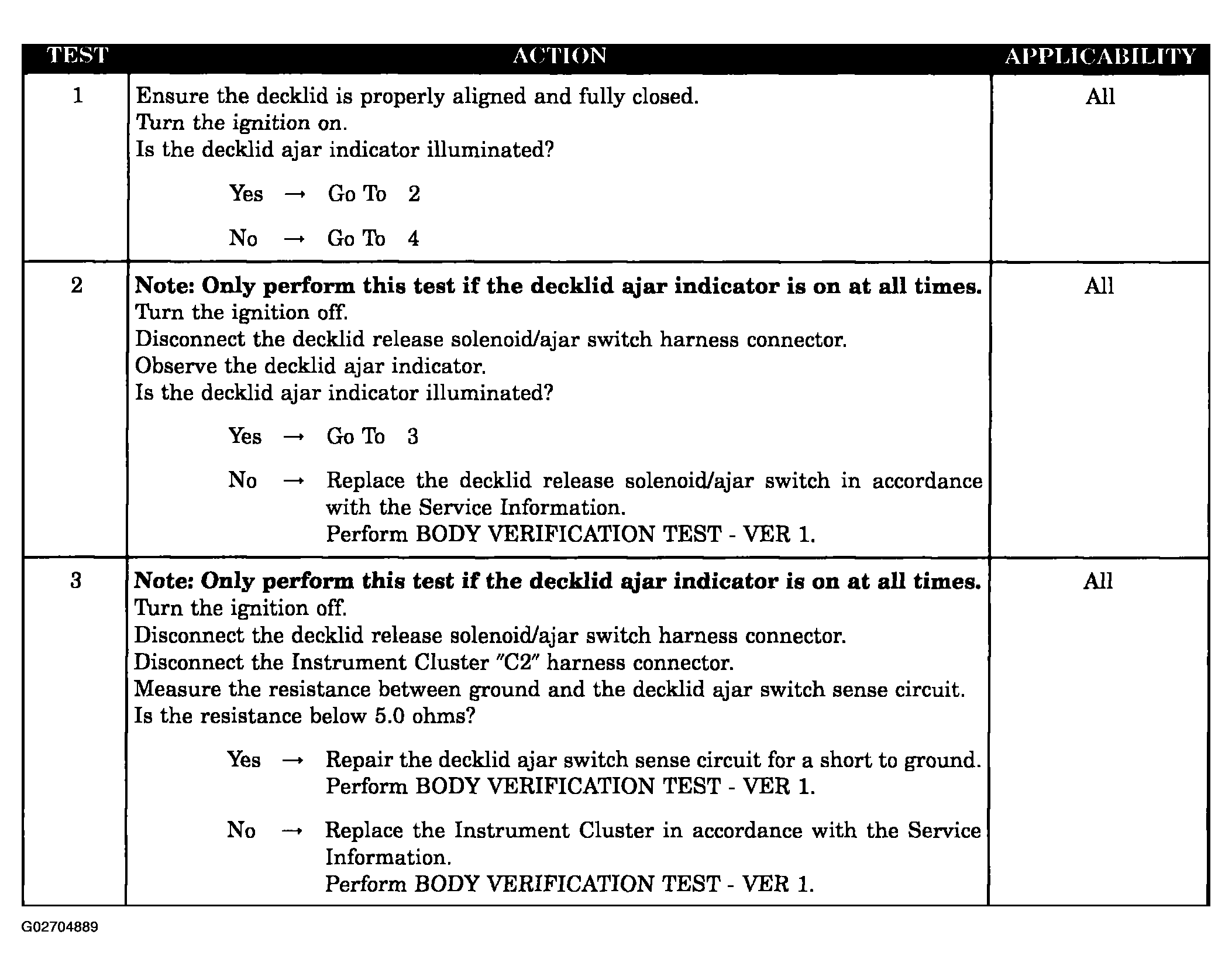

Fig 1: Decklid Ajar Indicator Not Operating Properly - Diagnostic Procedure (1 Of 2)
G02704889Courtesy of DAIMLERCHRYSLER CORP.

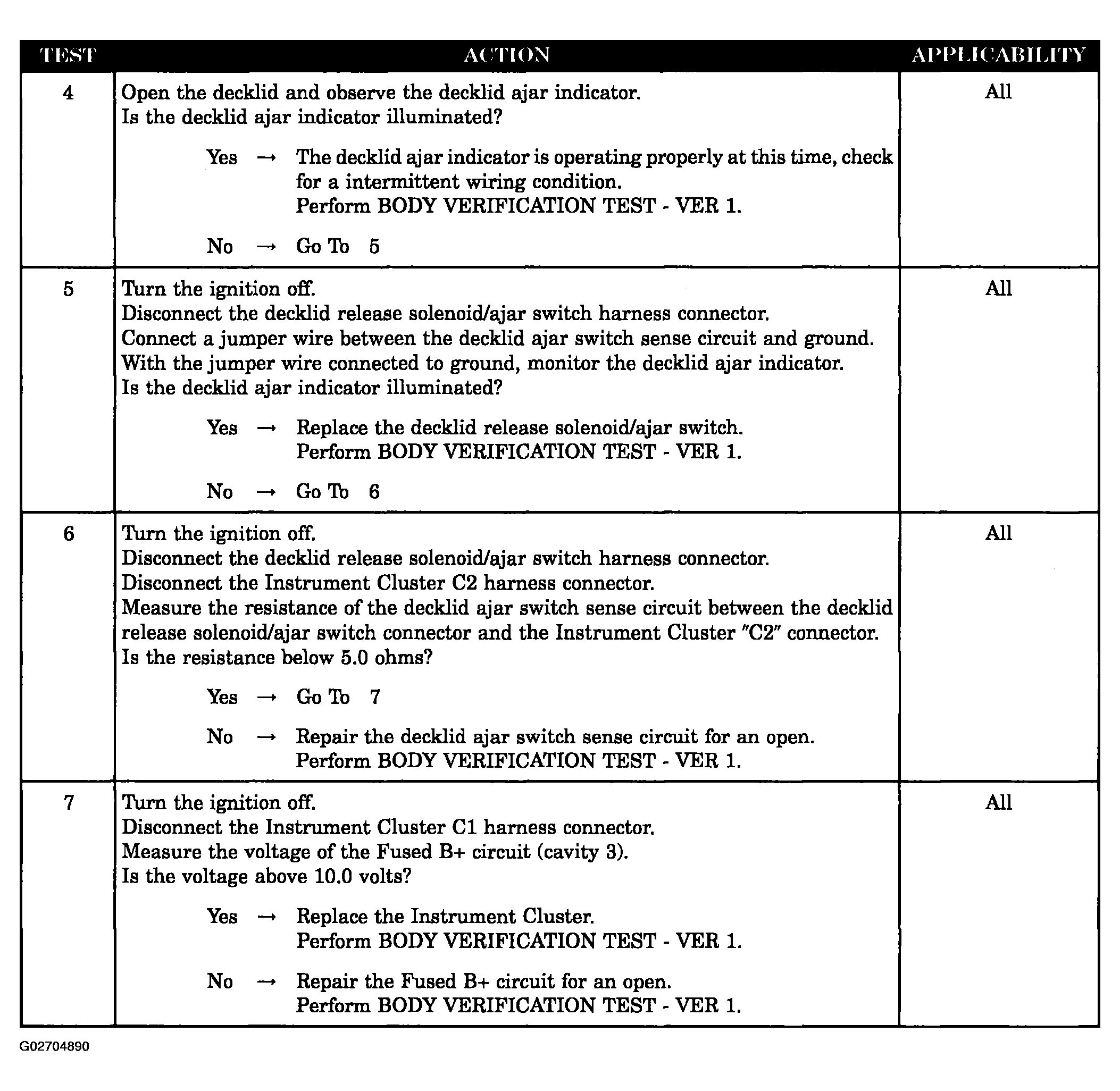

Fig 2: Decklid Ajar Indicator Not Operating Properly - Diagnostic Procedure (2 Of 2)
G02704890Courtesy of DAIMLERCHRYSLER CORP.
