Diagnostic Procedure

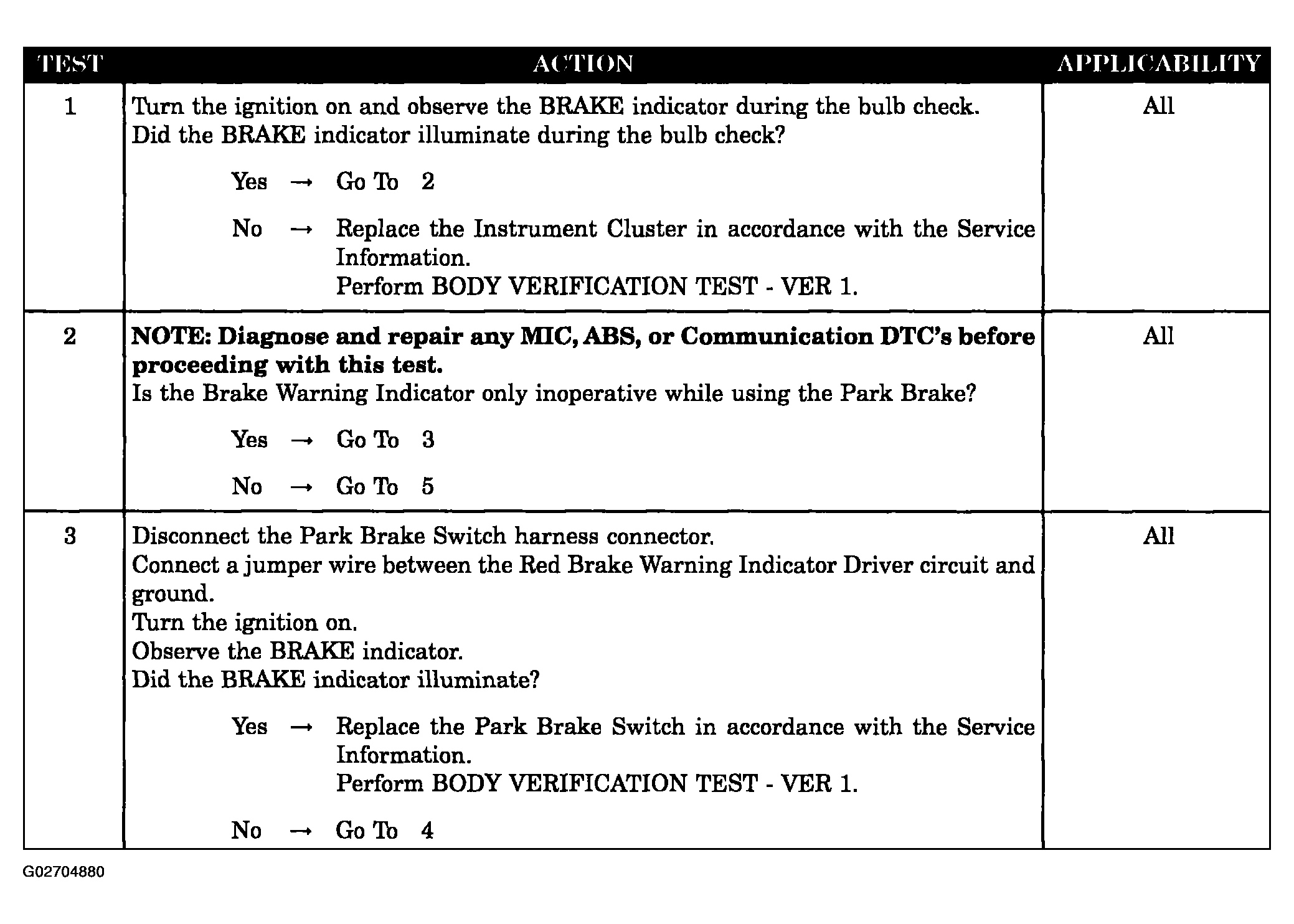

Fig 1: Brake Warning Indicator Inoperative - Diagnostic Procedure (1 Of 3)
G02704880Courtesy of DAIMLERCHRYSLER CORP.

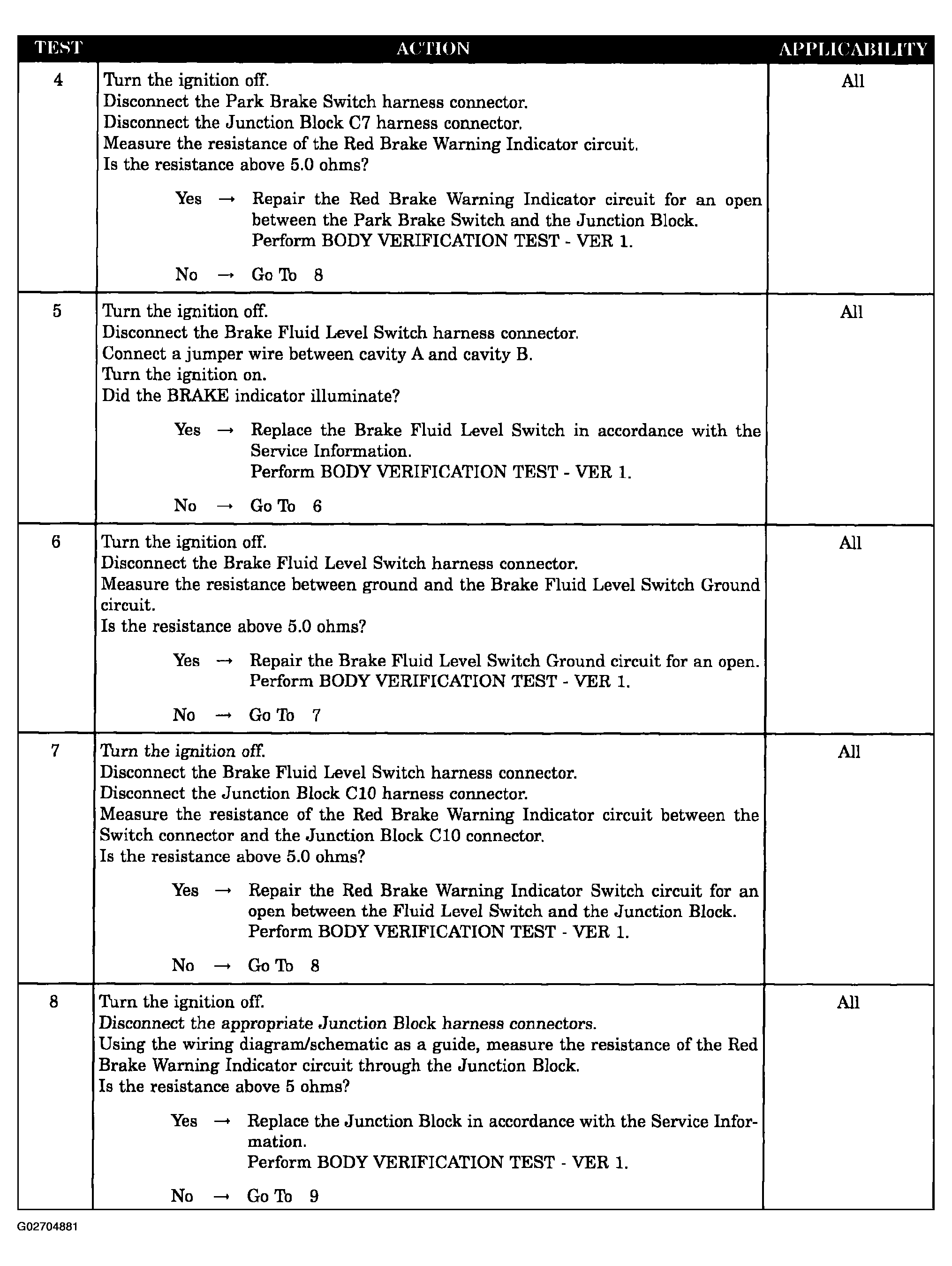

Fig 2: Brake Warning Indicator Inoperative - Diagnostic Procedure (2 Of 3)
G02704881Courtesy of DAIMLERCHRYSLER CORP.

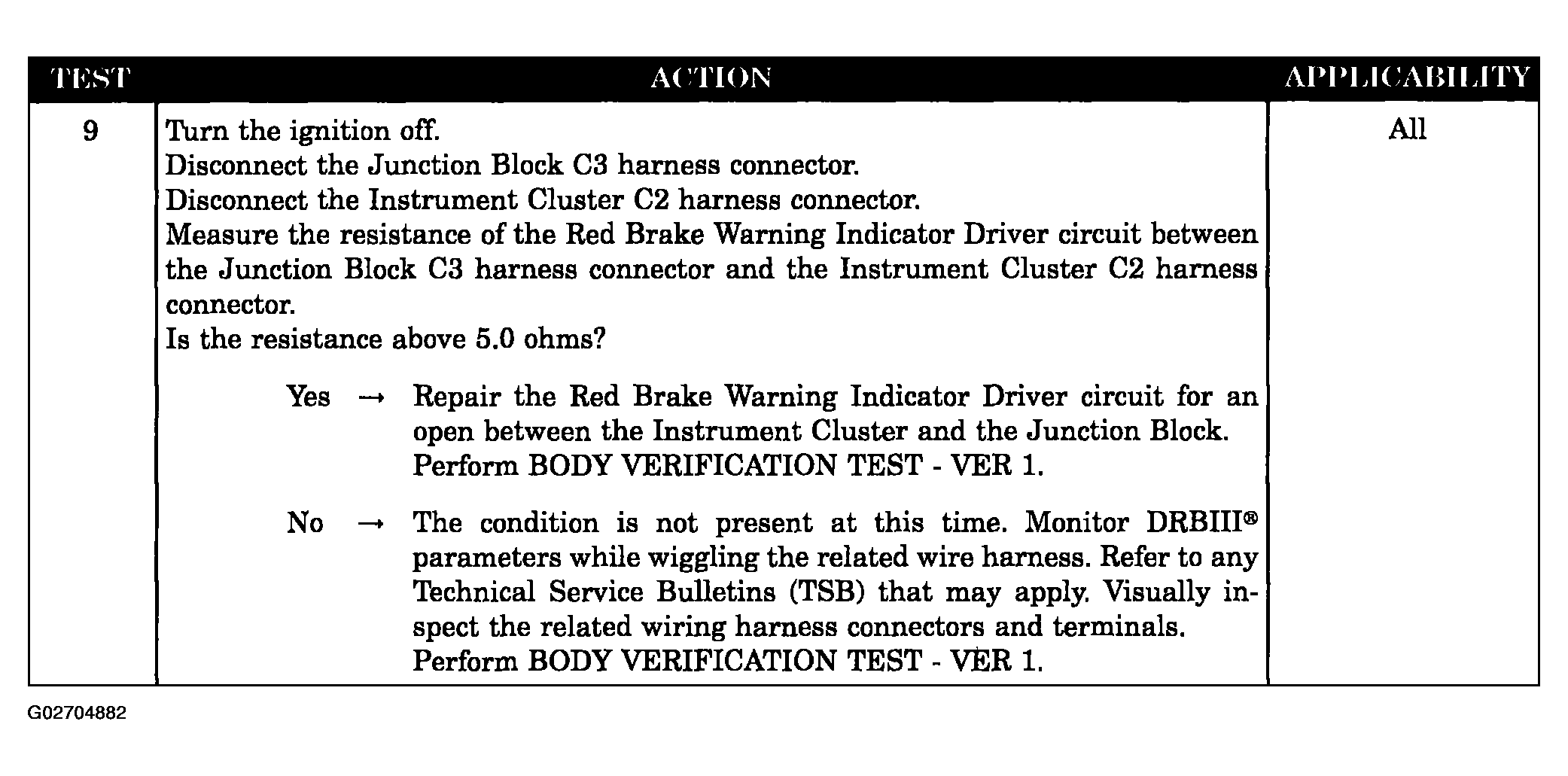

Fig 3: Brake Warning Indicator Inoperative - Diagnostic Procedure (3 Of 3)
G02704882Courtesy of DAIMLERCHRYSLER CORP.
