Diagnostic Procedure

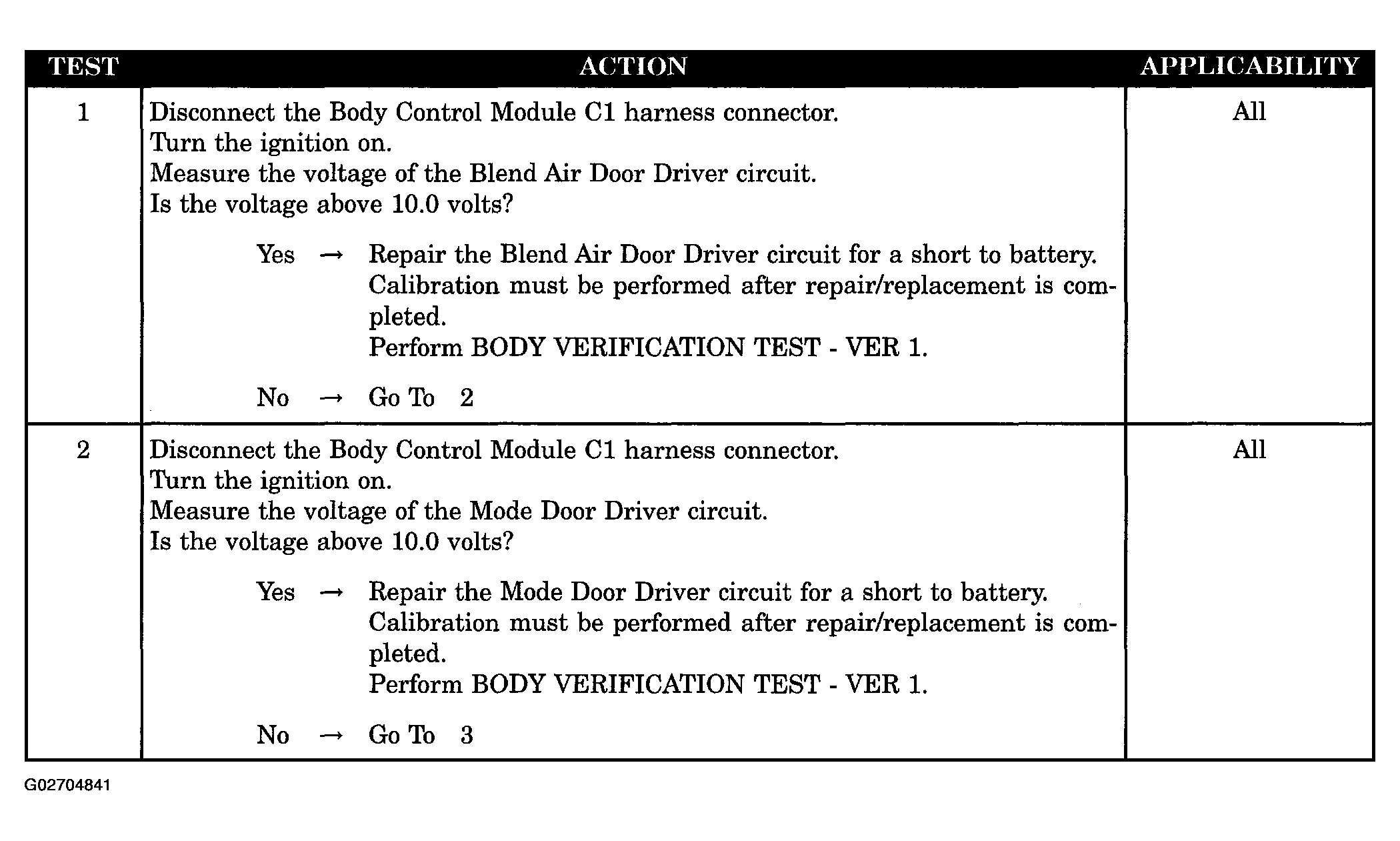

Fig 1: RECIRC Door Output Shorted To Battery - Diagnostic Procedure (1 Of 3)
G02704841Courtesy of DAIMLERCHRYSLER CORP.

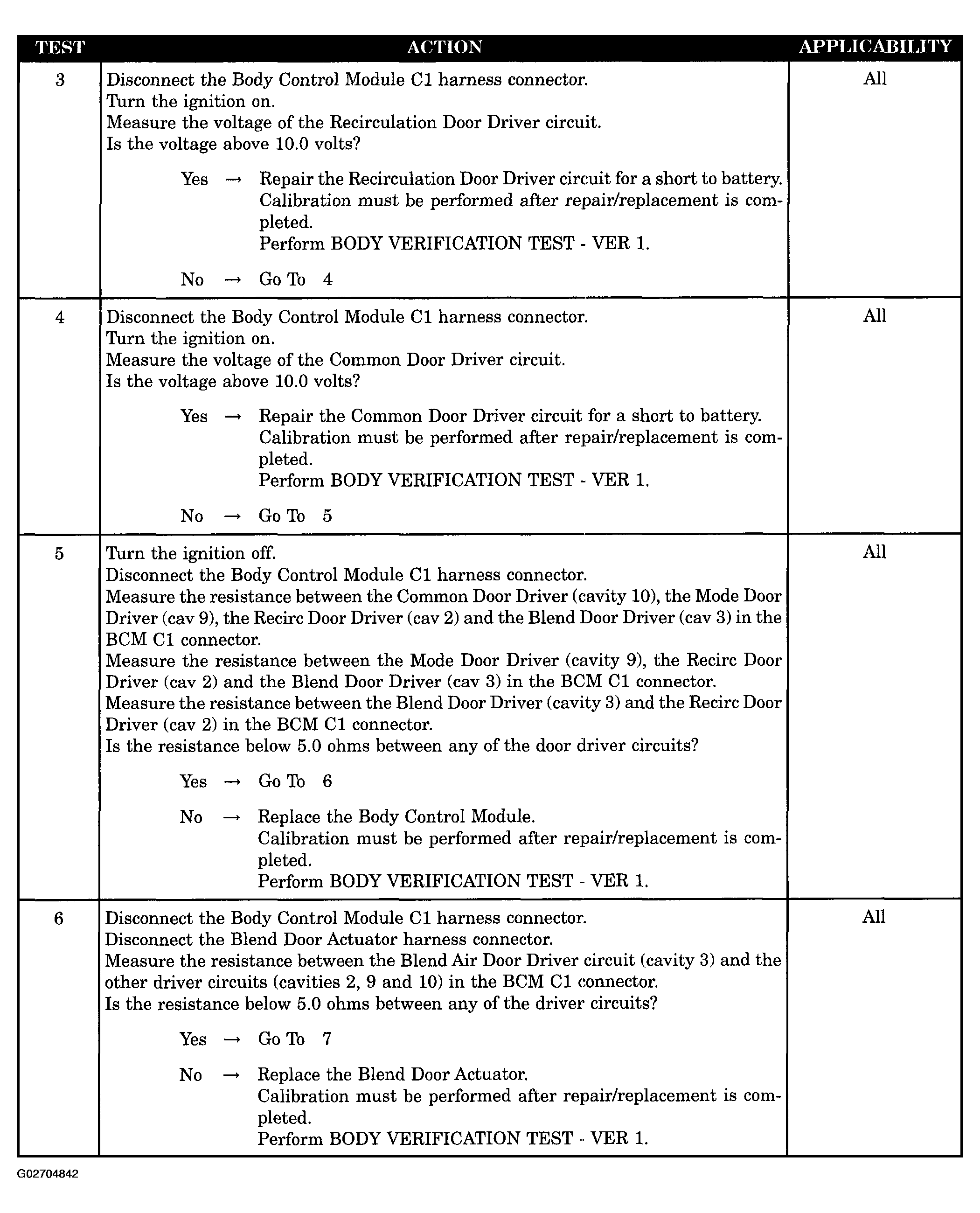

Fig 2: RECIRC Door Output Shorted To Battery - Diagnostic Procedure (2 Of 3)
G02704842Courtesy of DAIMLERCHRYSLER CORP.

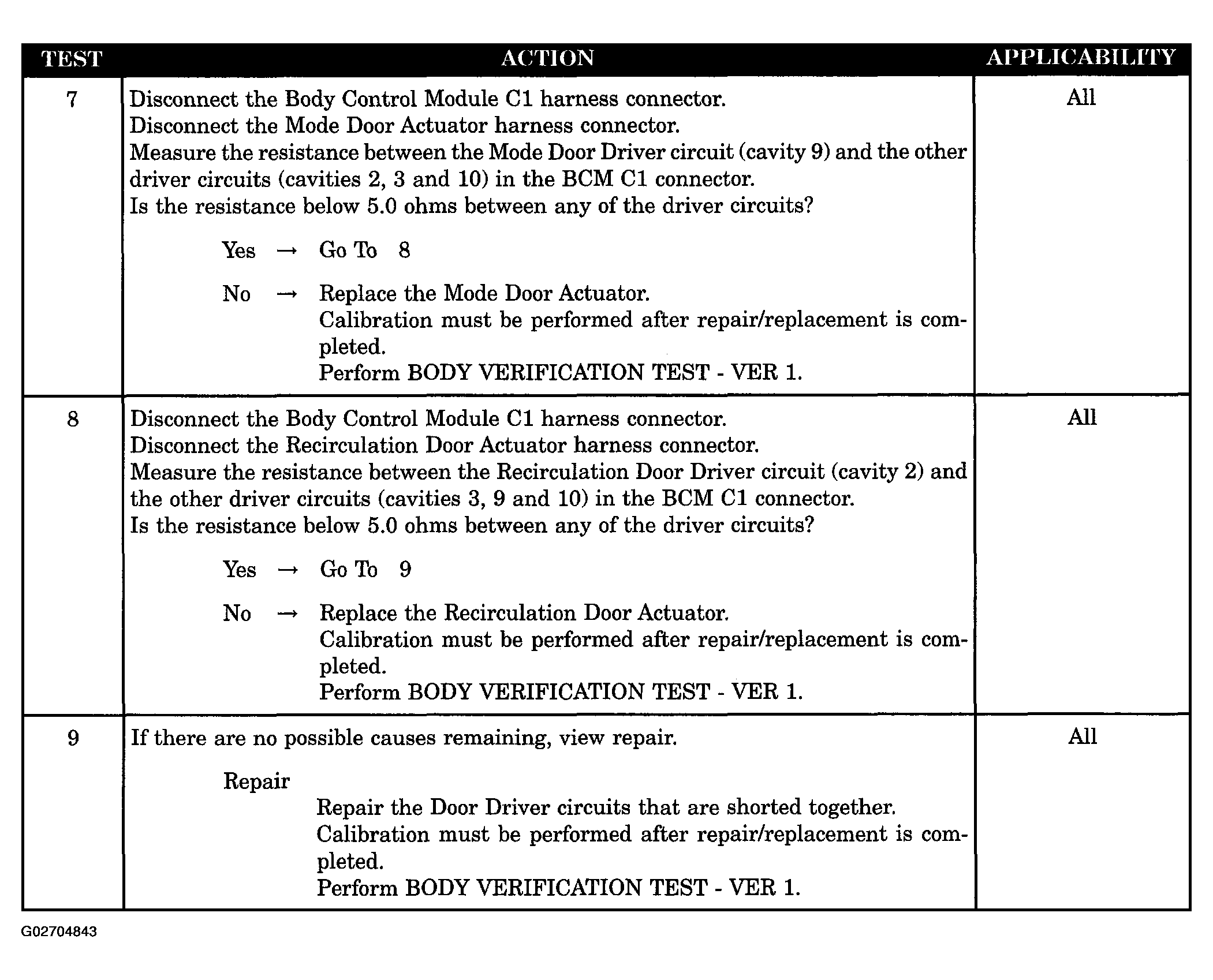

Fig 3: RECIRC Door Output Shorted To Battery - Diagnostic Procedure (3 Of 3)
G02704843Courtesy of DAIMLERCHRYSLER CORP.
