Diagnostic Procedure

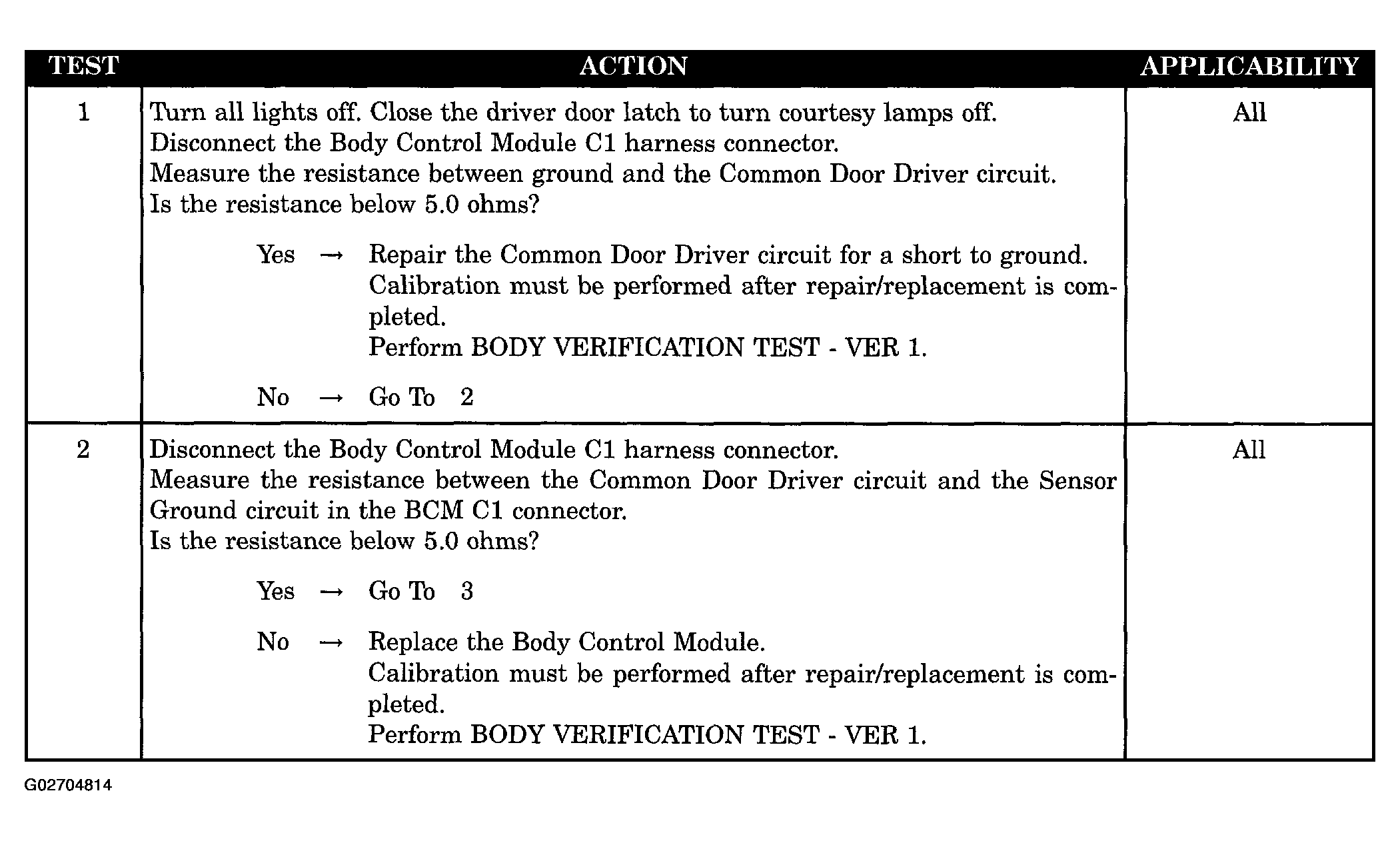

Fig 1: Common Output Shorted To Ground - Diagnostic Procedure (1 Of 2)
G02704814Courtesy of DAIMLERCHRYSLER CORP.

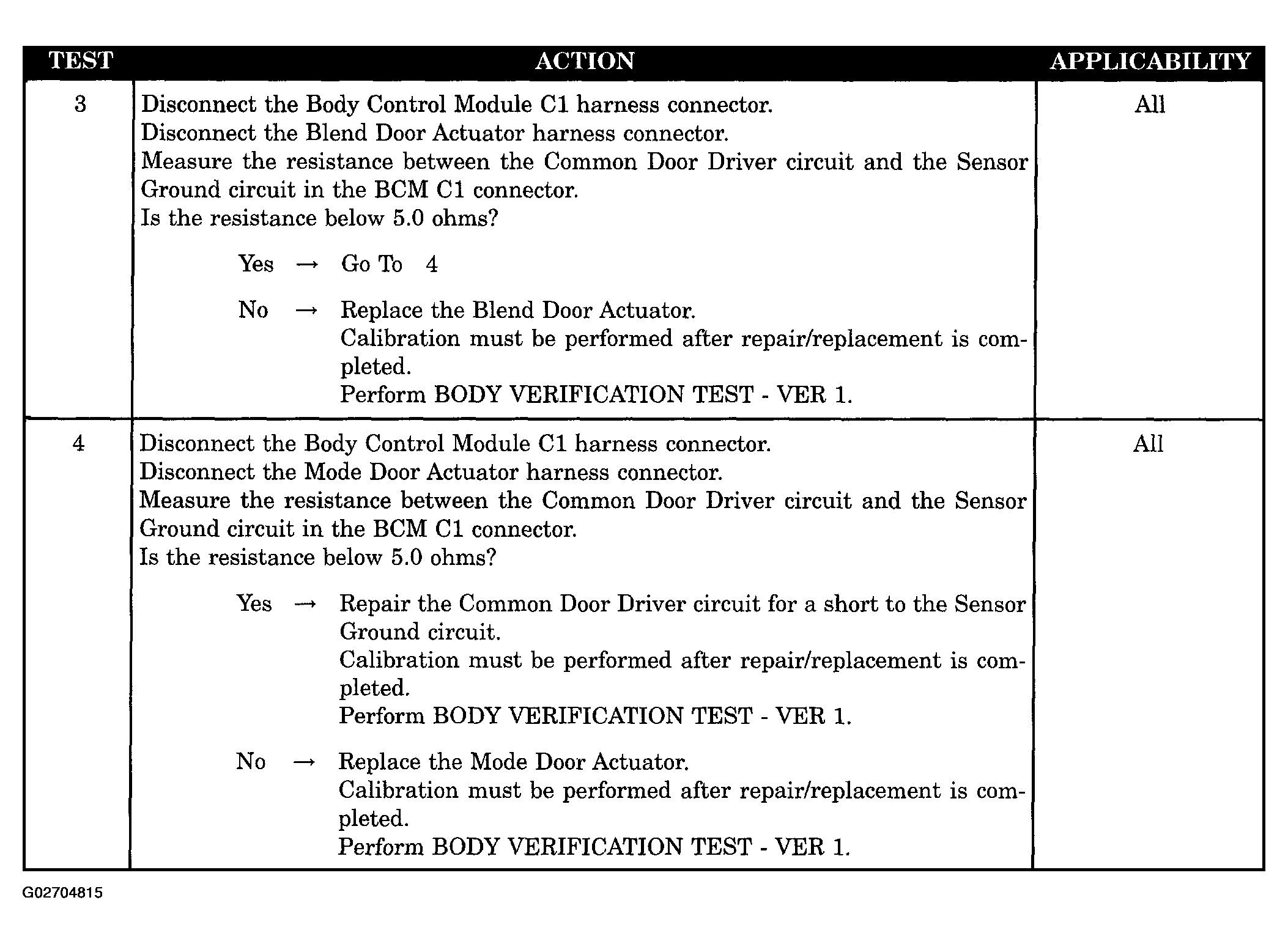

Fig 2: Common Output Shorted To Ground - Diagnostic Procedure (2 Of 2)
G02704815Courtesy of DAIMLERCHRYSLER CORP.
