Home >> Chrysler >> 2003 >> 300M Pro-Am Edition >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Heating & A/C - Symptoms >> Symptom: BLEND DOOR OUTPUT SHORTED TO GROUND >> Diagnostic Procedure

Diagnostic Procedure

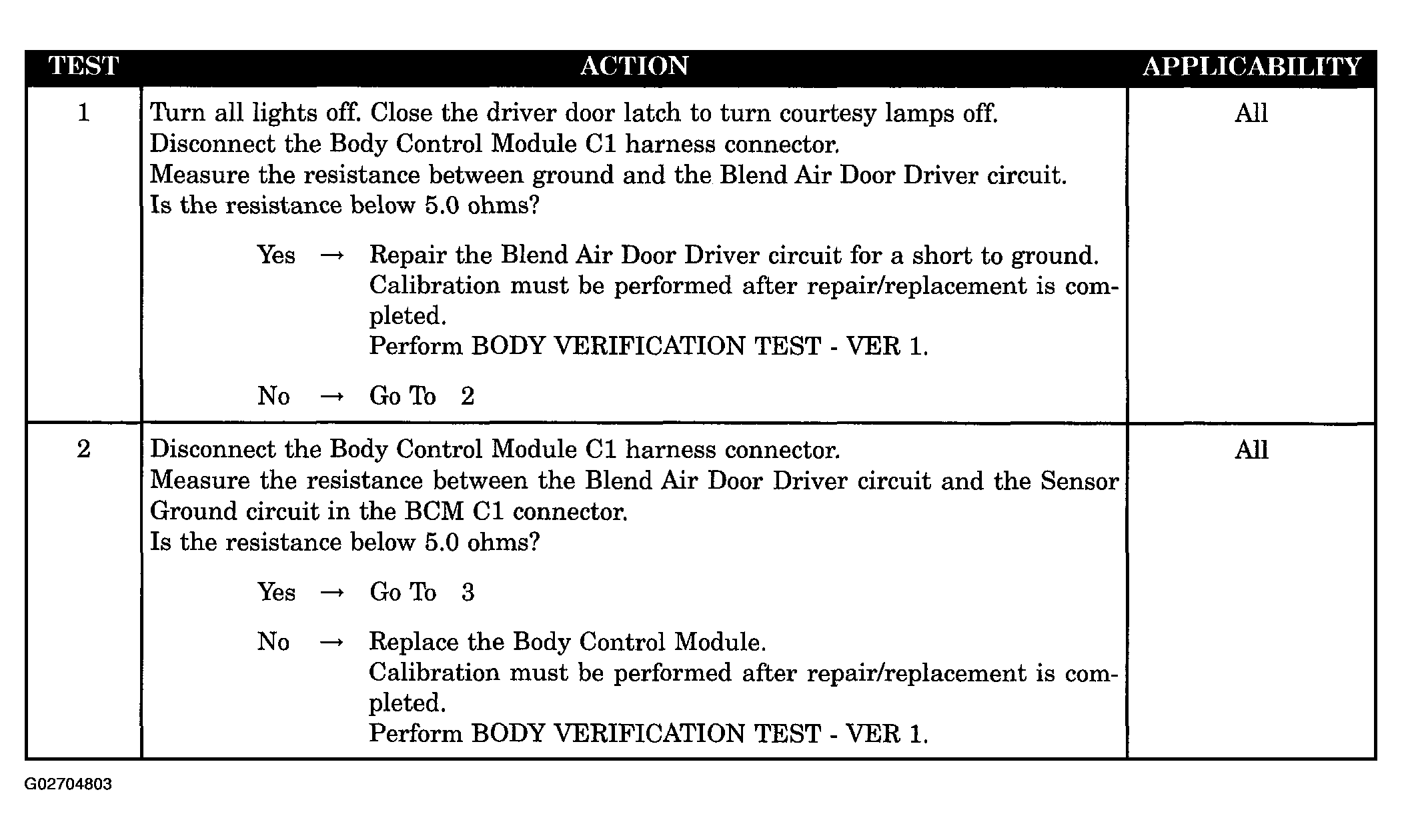

Fig 1: Blend Door Output Shorted To Ground - Diagnostic Procedure (1 Of 2)
G02704803Courtesy of DAIMLERCHRYSLER CORP.

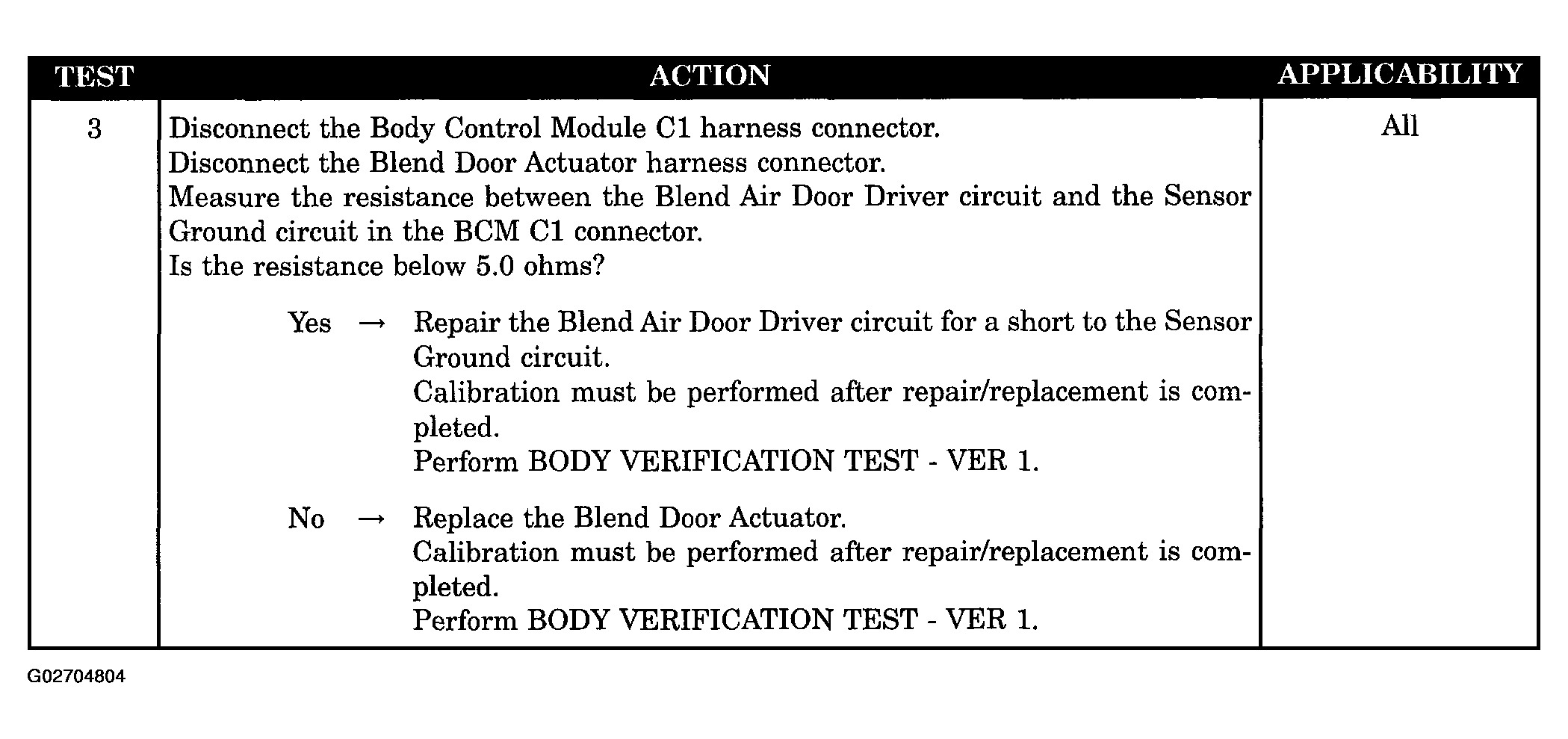

Fig 2: Blend Door Output Shorted To Ground - Diagnostic Procedure (2 Of 2)
G02704804Courtesy of DAIMLERCHRYSLER CORP.
