Diagnostic Procedure

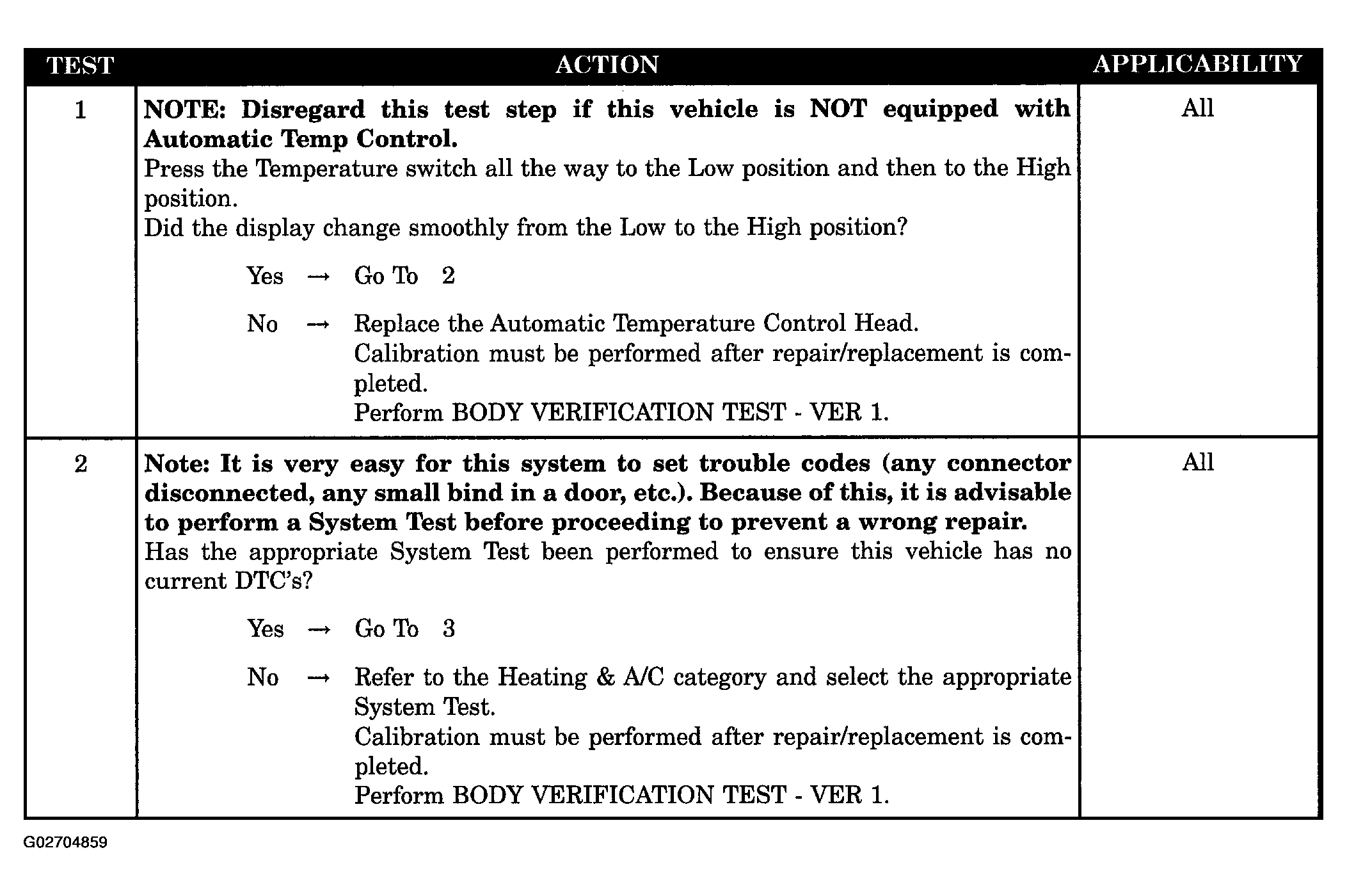

Fig 1: Blend Door Inoperative - Diagnostic Procedure (1 Of 2)
G02704859Courtesy of DAIMLERCHRYSLER CORP.

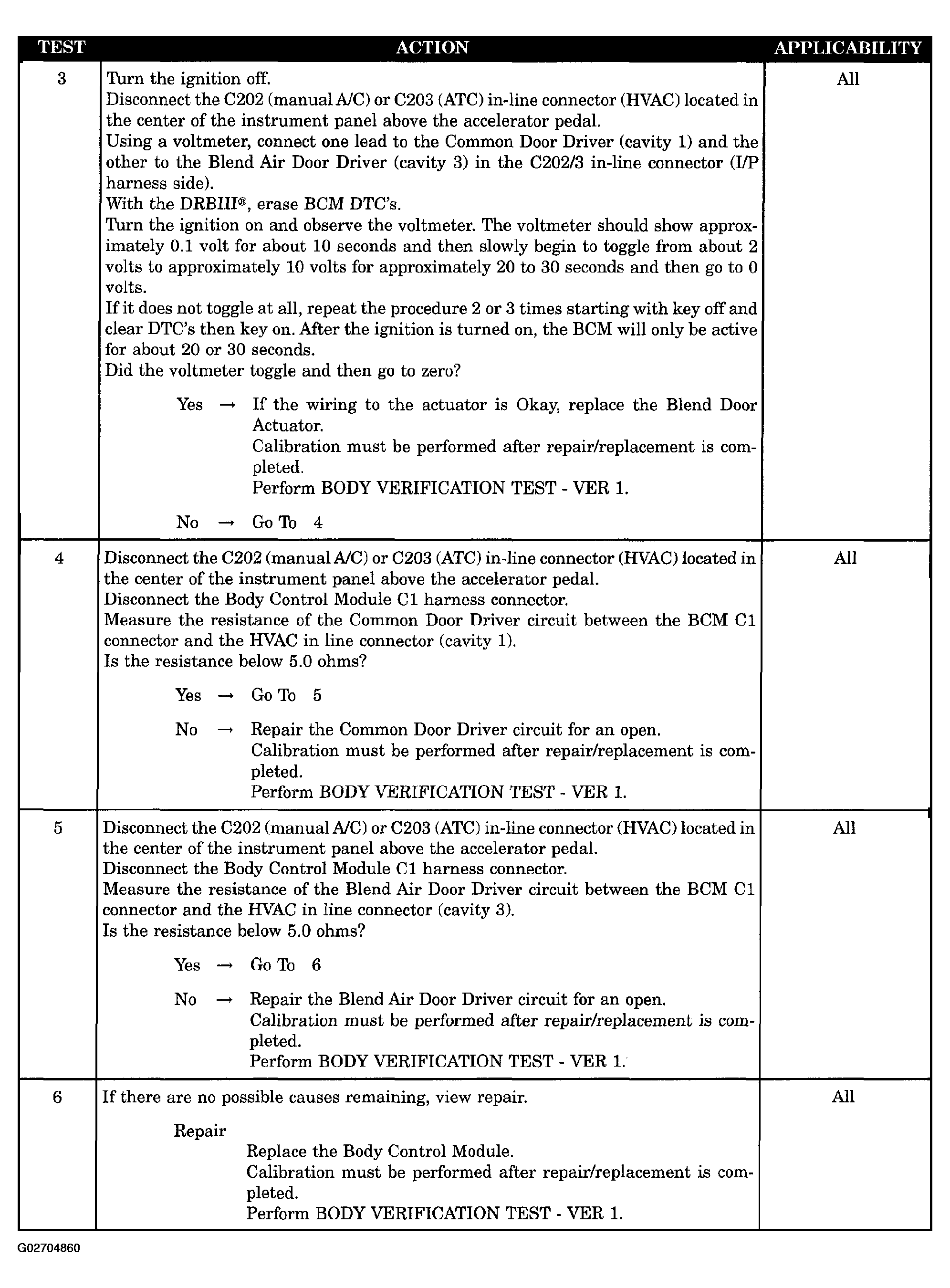

Fig 2: Blend Door Inoperative - Diagnostic Procedure (2 Of 2)
G02704860Courtesy of DAIMLERCHRYSLER CORP.
