Diagnostic Procedure

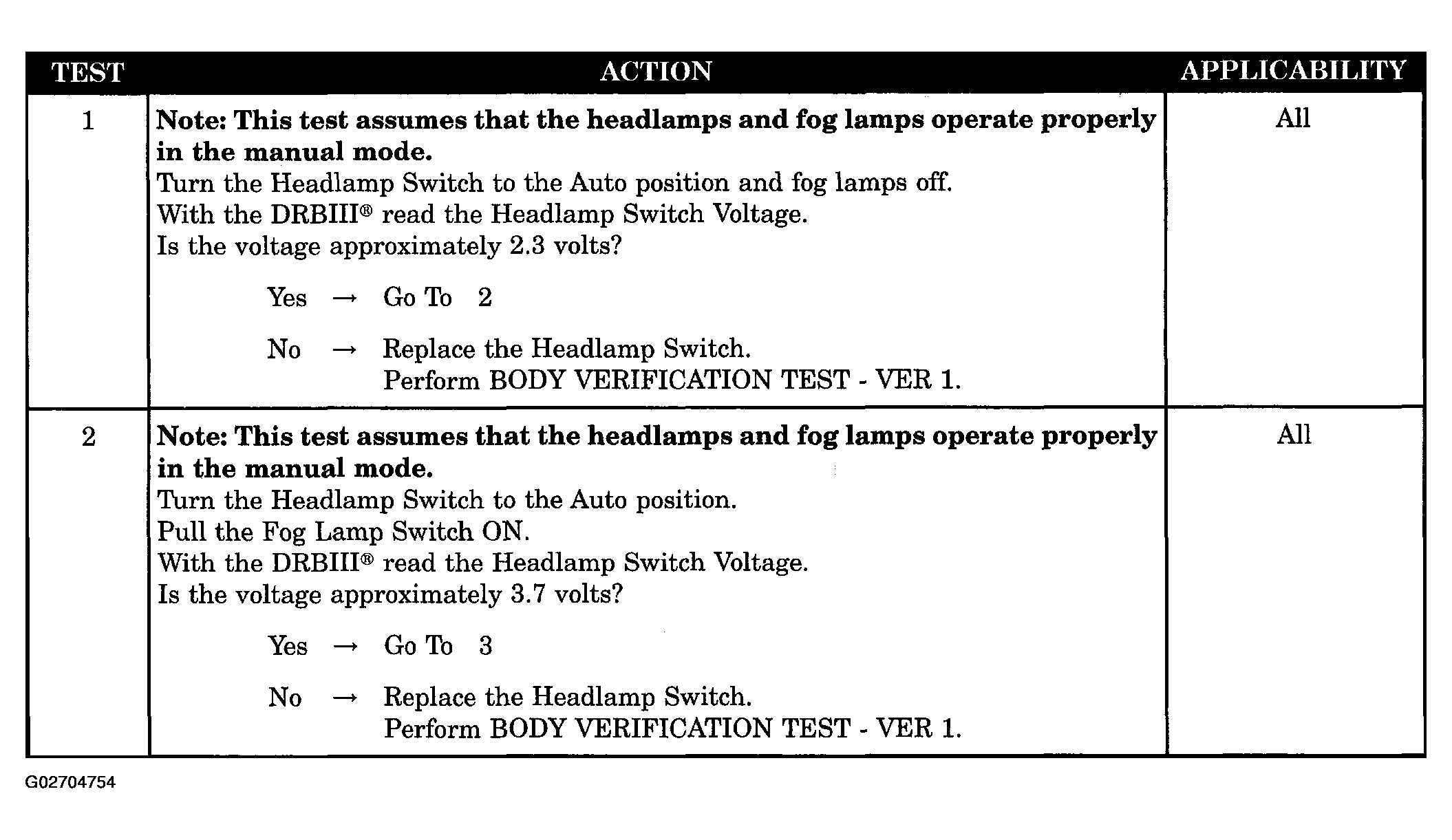

Fig 1: Auto Headlamps And Or Fog Lamps Not Operating Properly - Diagnostic Procedure (1 Of 3)
G02704754Courtesy of DAIMLERCHRYSLER CORP.

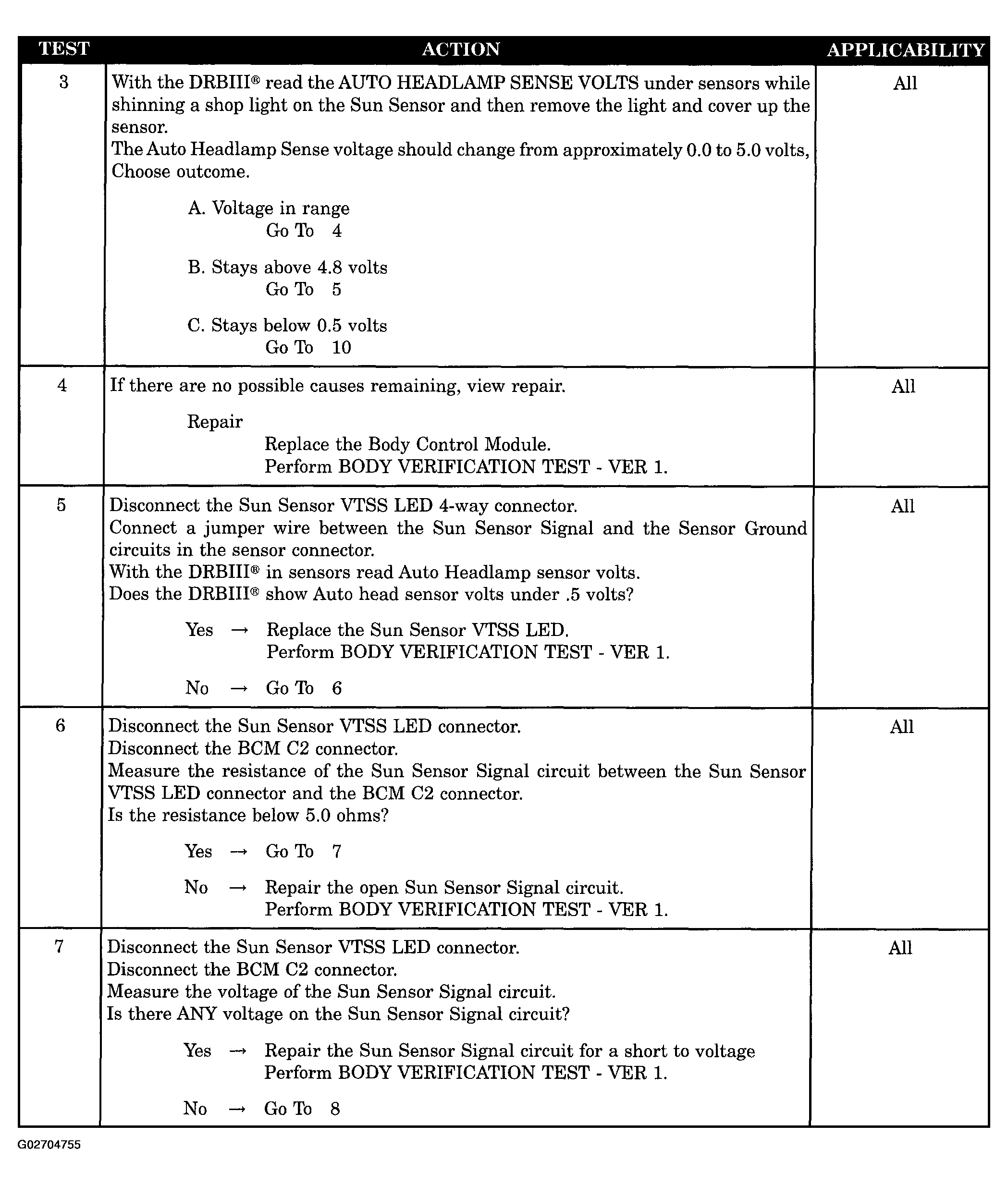

Fig 2: Auto Headlamps And Or Fog Lamps Not Operating Properly - Diagnostic Procedure (2 Of 3)
G02704755Courtesy of DAIMLERCHRYSLER CORP.

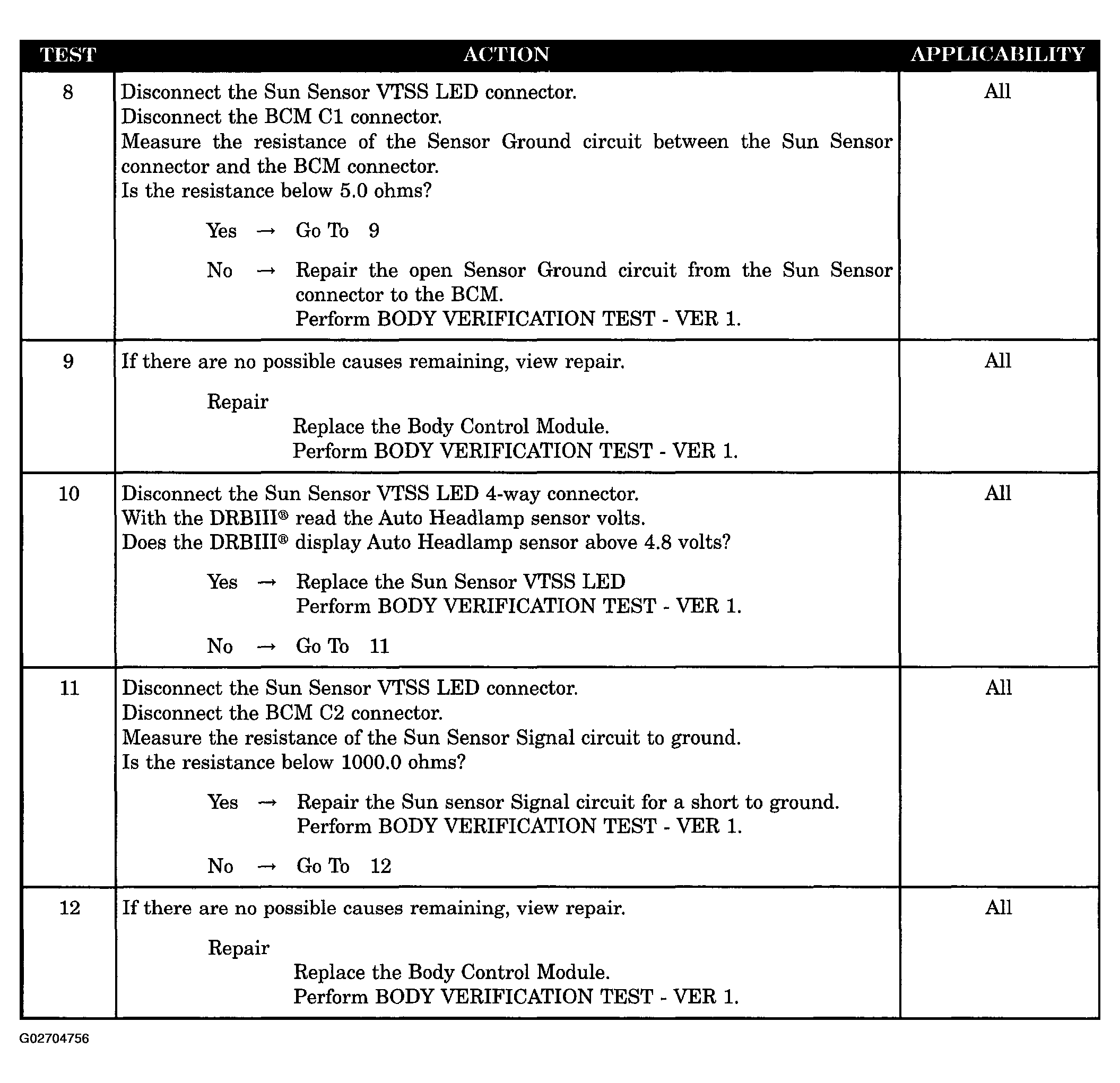

Fig 3: Auto Headlamps And Or Fog Lamps Not Operating Properly - Diagnostic Procedure (3 Of 3)
G02704756Courtesy of DAIMLERCHRYSLER CORP.
