Diagnostic Procedure

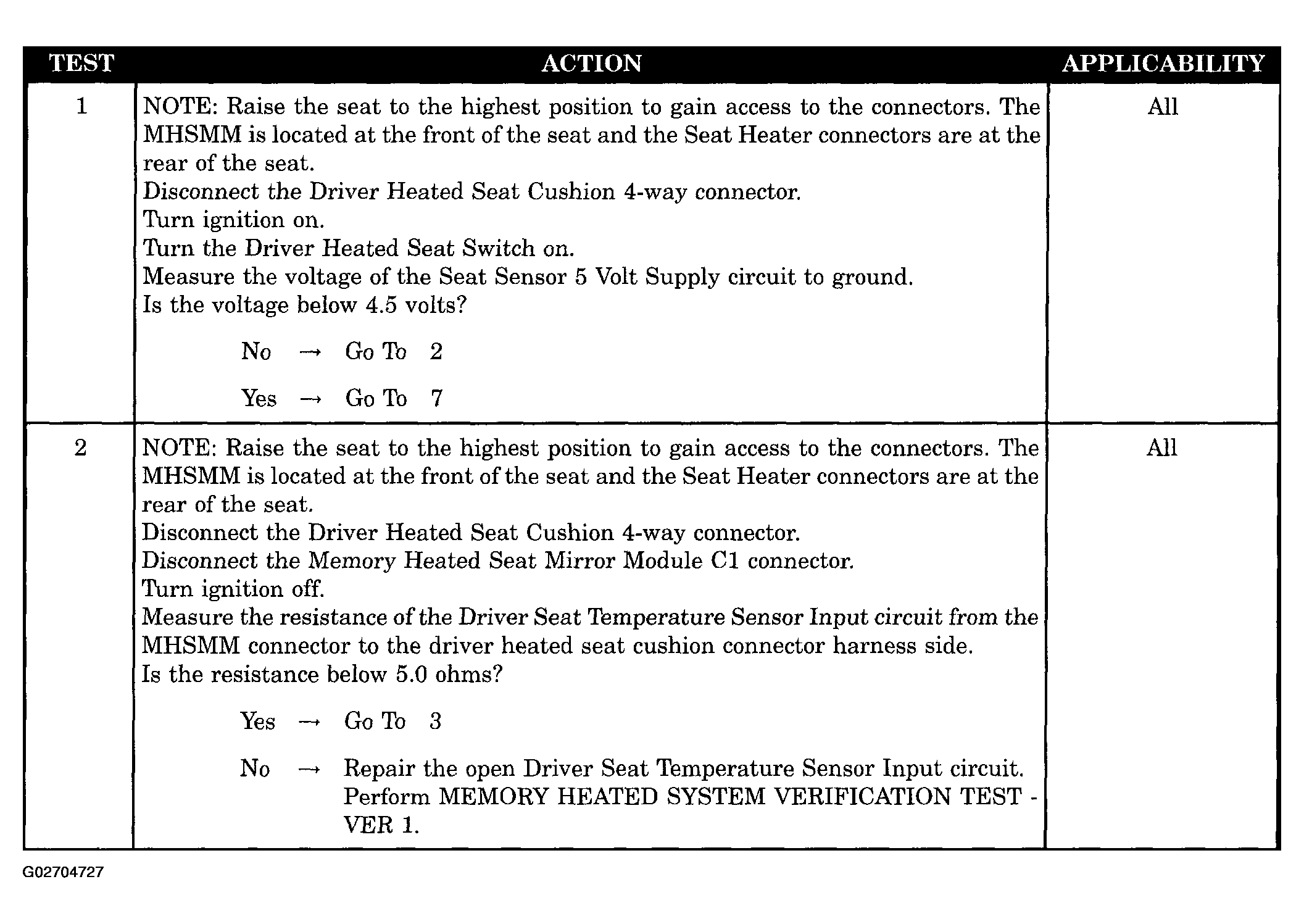

Fig 1: Driver Thermistor Out Of Range Low - Diagnostic Procedure (1 Of 3)
G02704727Courtesy of DAIMLERCHRYSLER CORP.

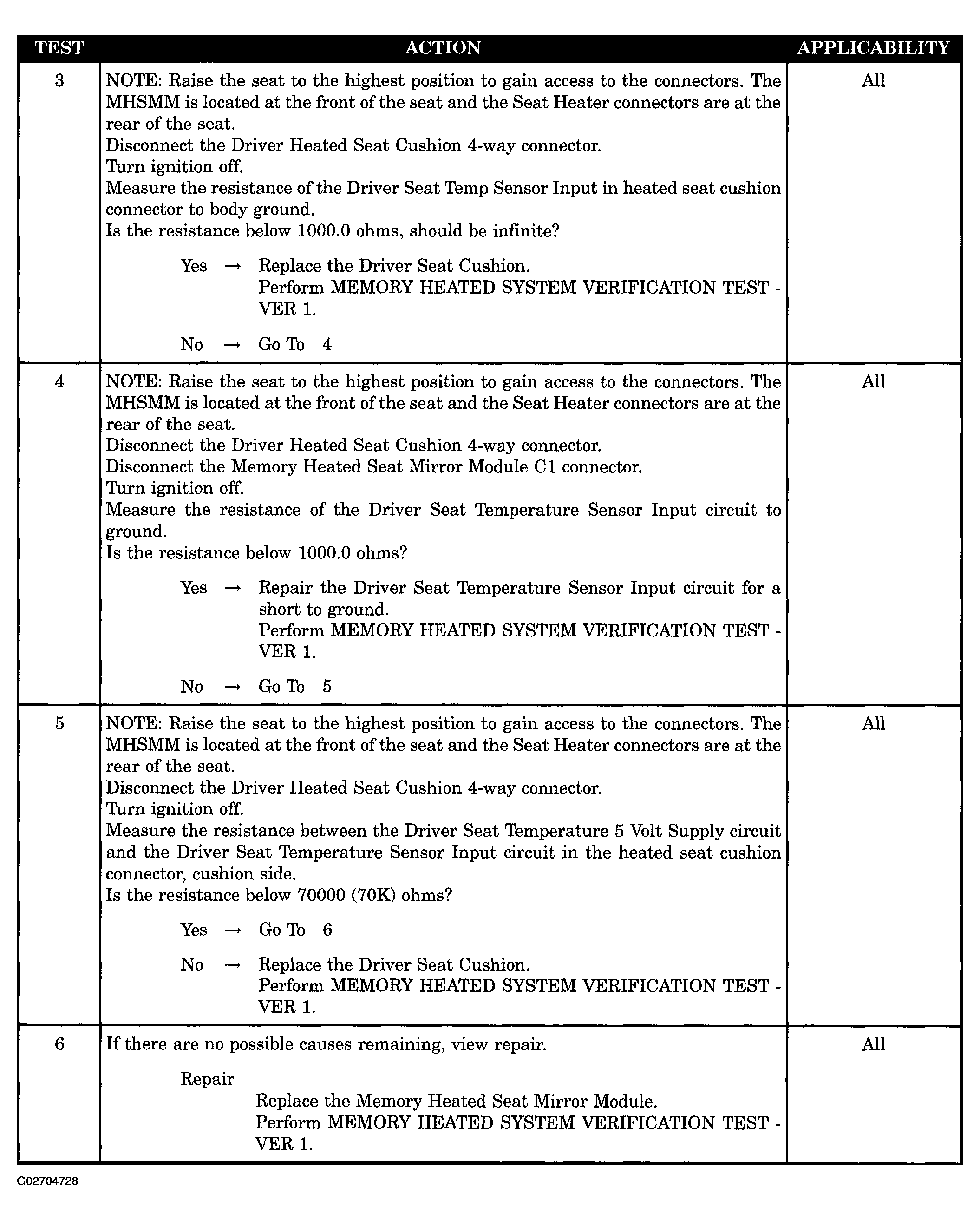

Fig 2: Driver Thermistor Out Of Range Low - Diagnostic Procedure (2 Of 3)
G02704728Courtesy of DAIMLERCHRYSLER CORP.

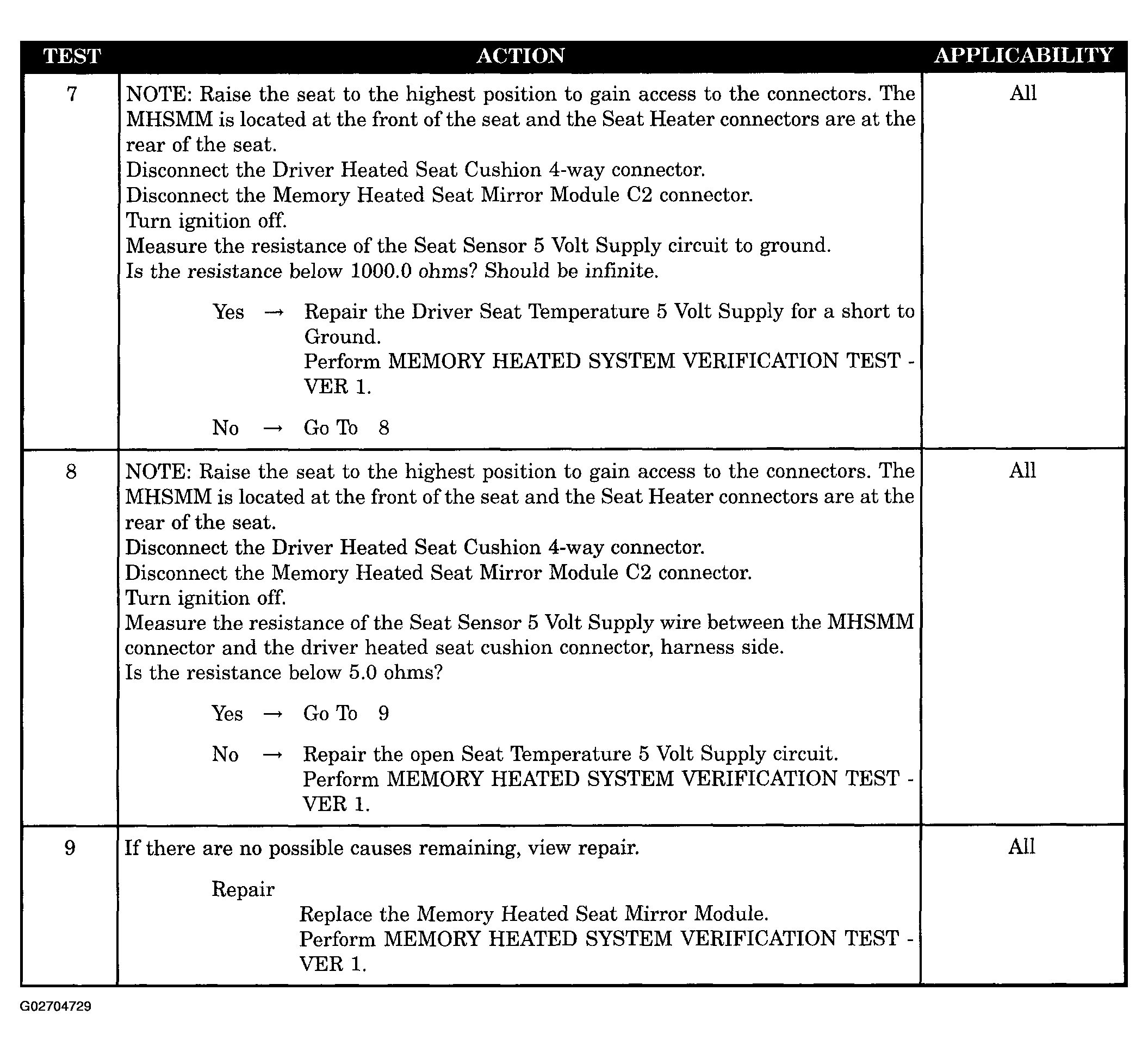

Fig 3: Driver Thermistor Out Of Range Low - Diagnostic Procedure (3 Of 3)
G02704729Courtesy of DAIMLERCHRYSLER CORP.
