Diagnostic Procedure

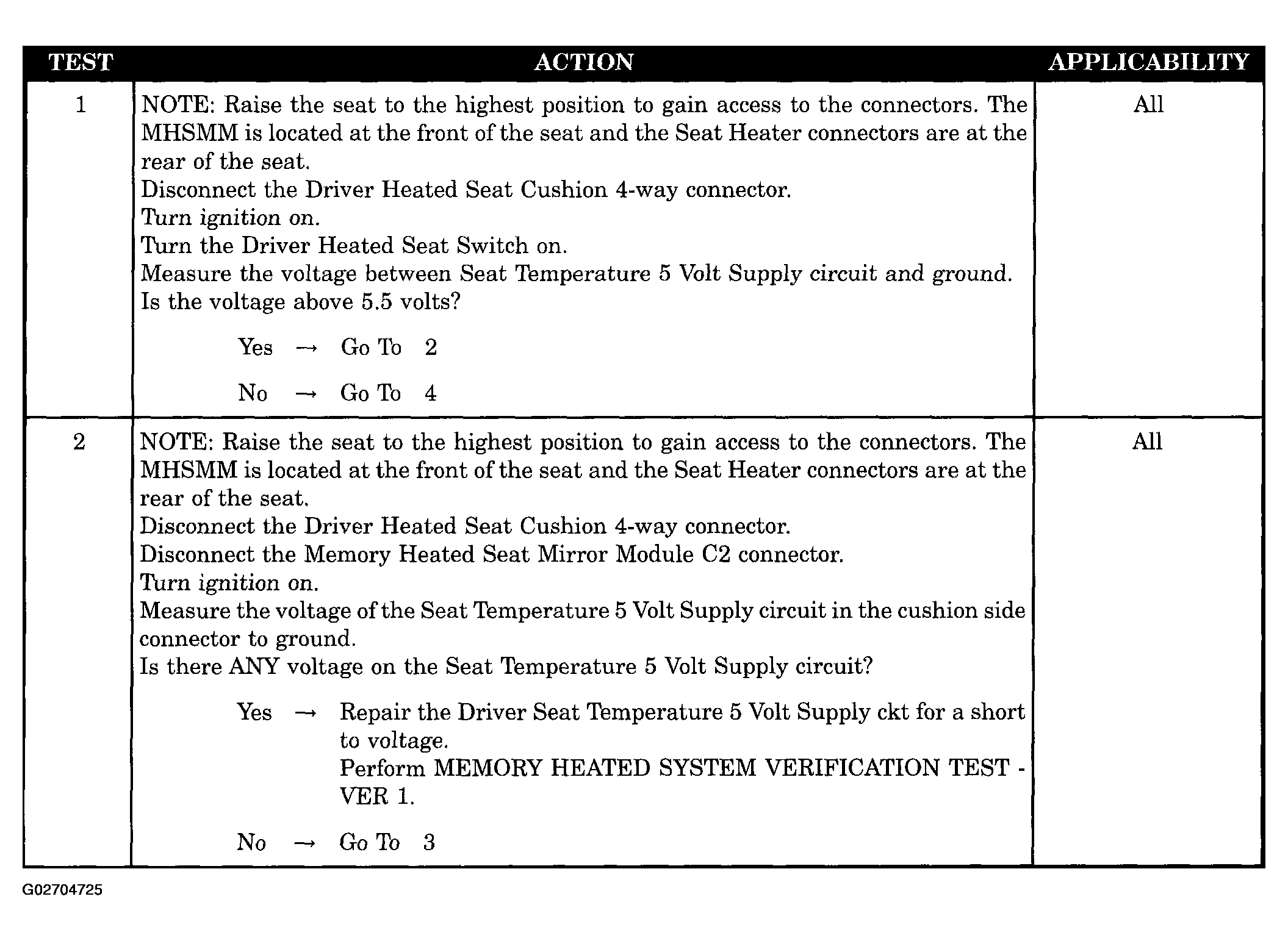

Fig 1: Driver Thermistor Out Of Range High - Diagnostic Procedure (1 Of 2)
G02704725Courtesy of DAIMLERCHRYSLER CORP.

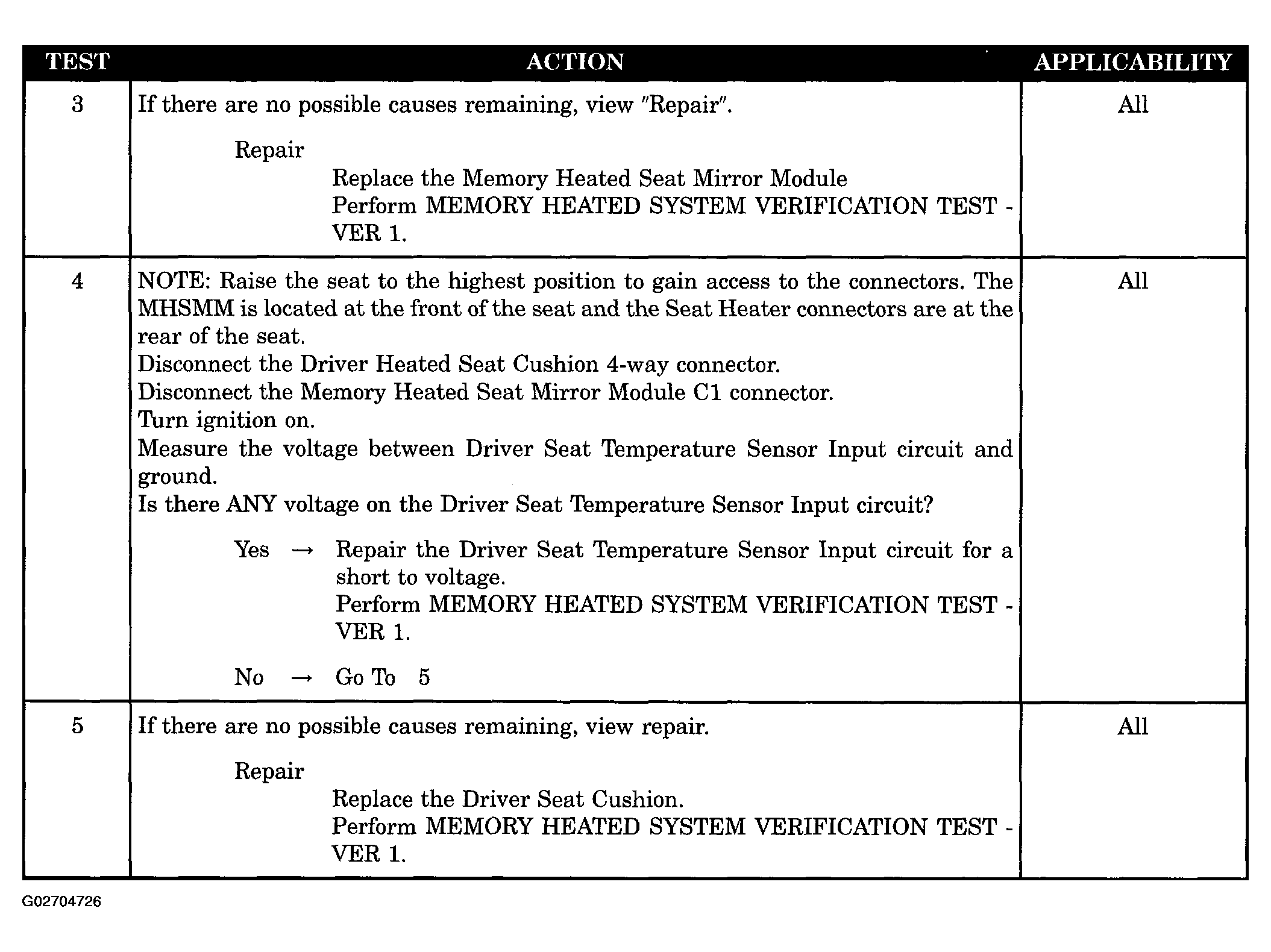

Fig 2: Driver Thermistor Out Of Range High - Diagnostic Procedure (2 Of 2)
G02704726Courtesy of DAIMLERCHRYSLER CORP.
