Diagnostic Procedure

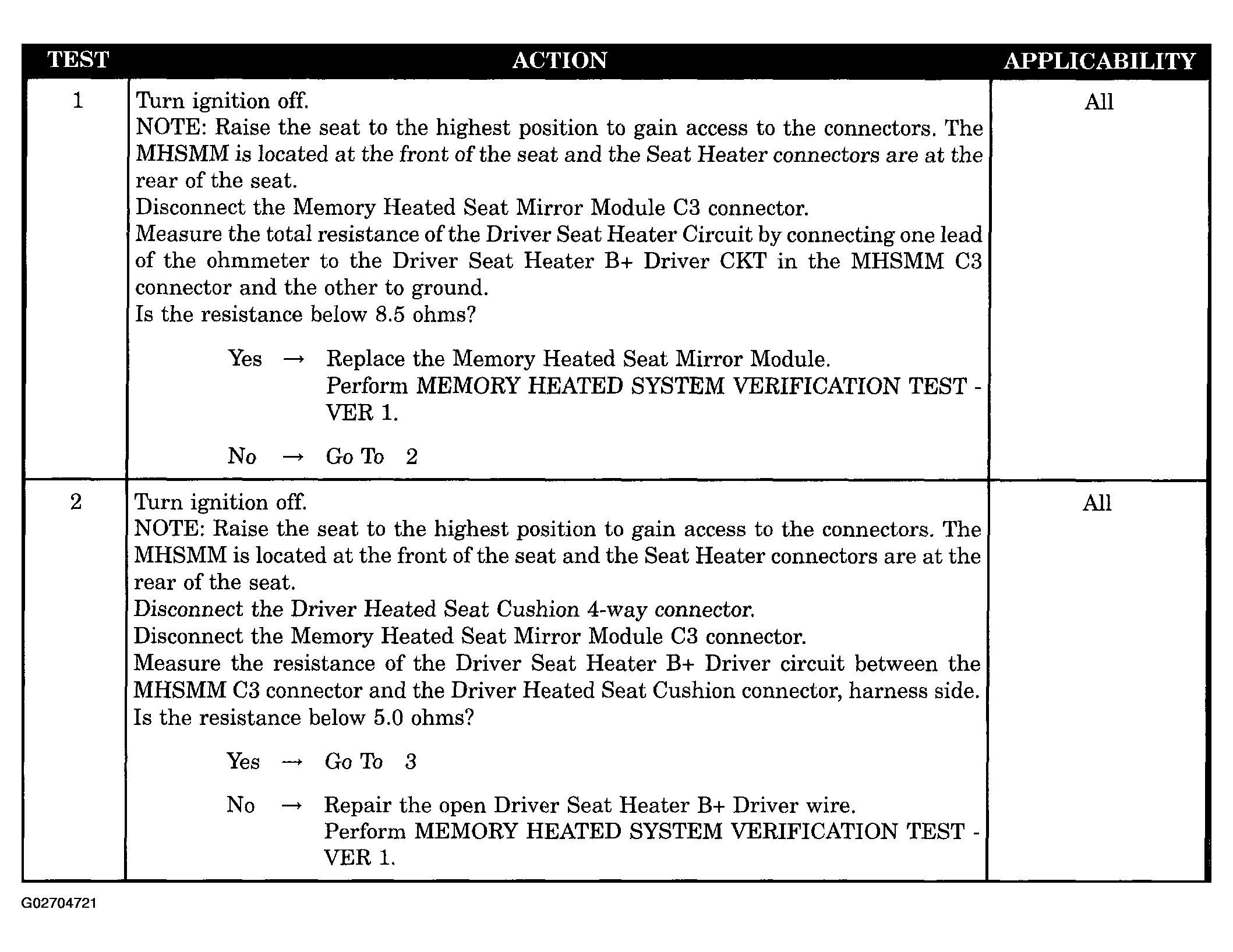

Fig 1: Driver Seat Heat Output Open - Diagnostic Procedure (1 Of 2)
G02704721Courtesy of DAIMLERCHRYSLER CORP.

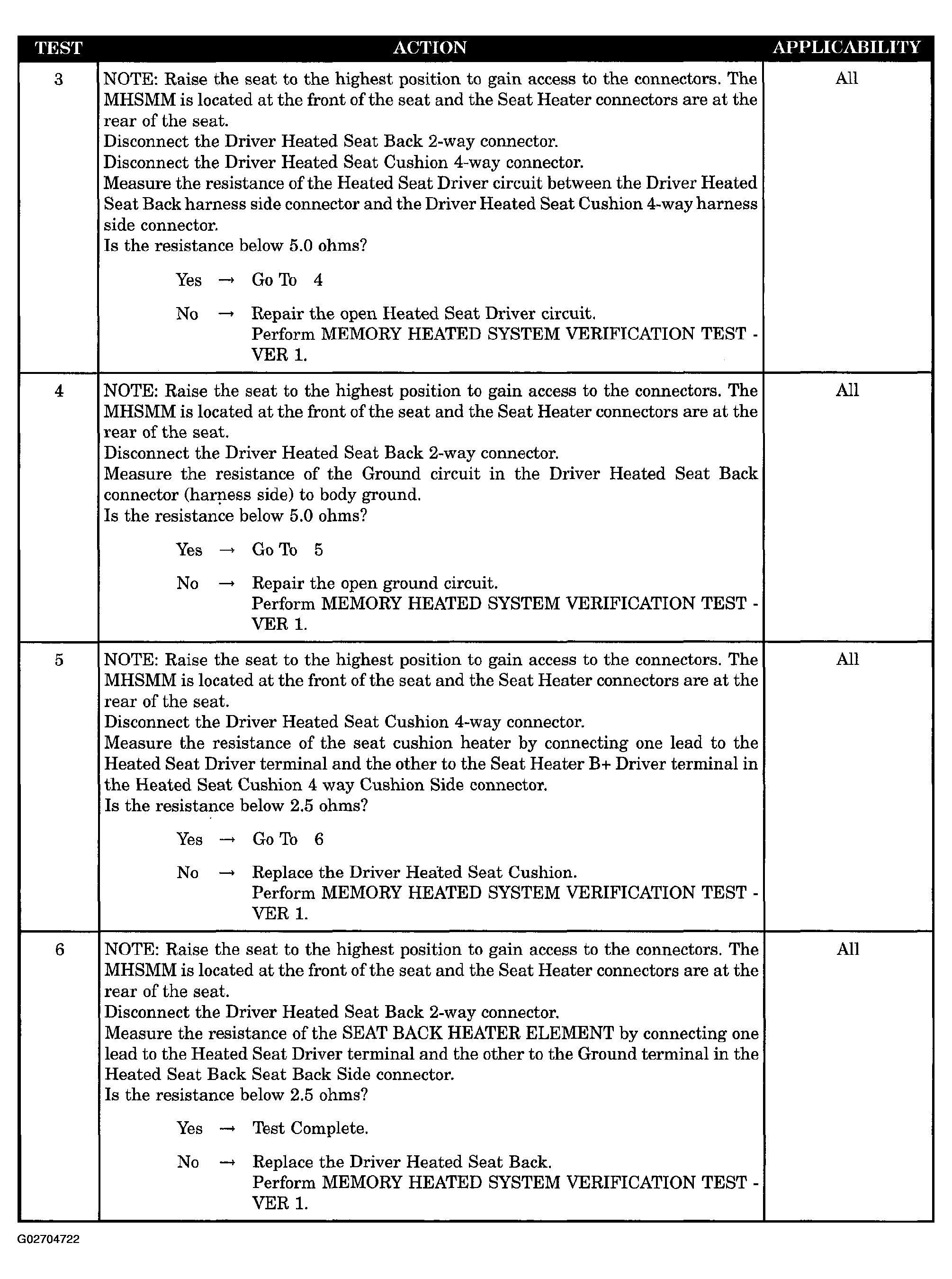

Fig 2: Driver Seat Heat Output Open - Diagnostic Procedure (2 Of 2)
G02704722Courtesy of DAIMLERCHRYSLER CORP.
