Diagnostic Procedure

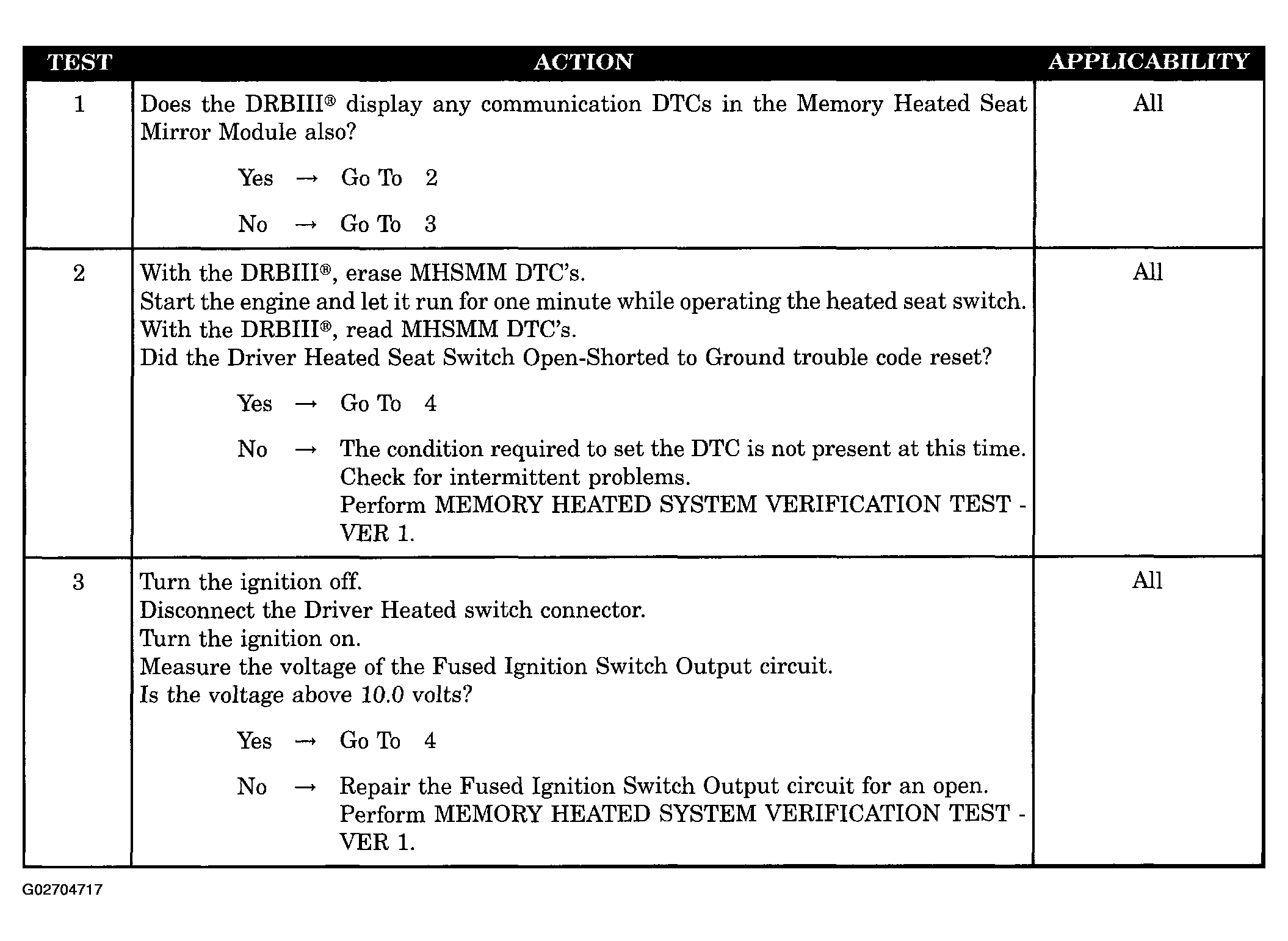

Fig 1: Driver Heated Seat Switch Open/Shorted To Ground - Diagnostic Procedure (1 Of 2)
G02704717Courtesy of DAIMLERCHRYSLER CORP.

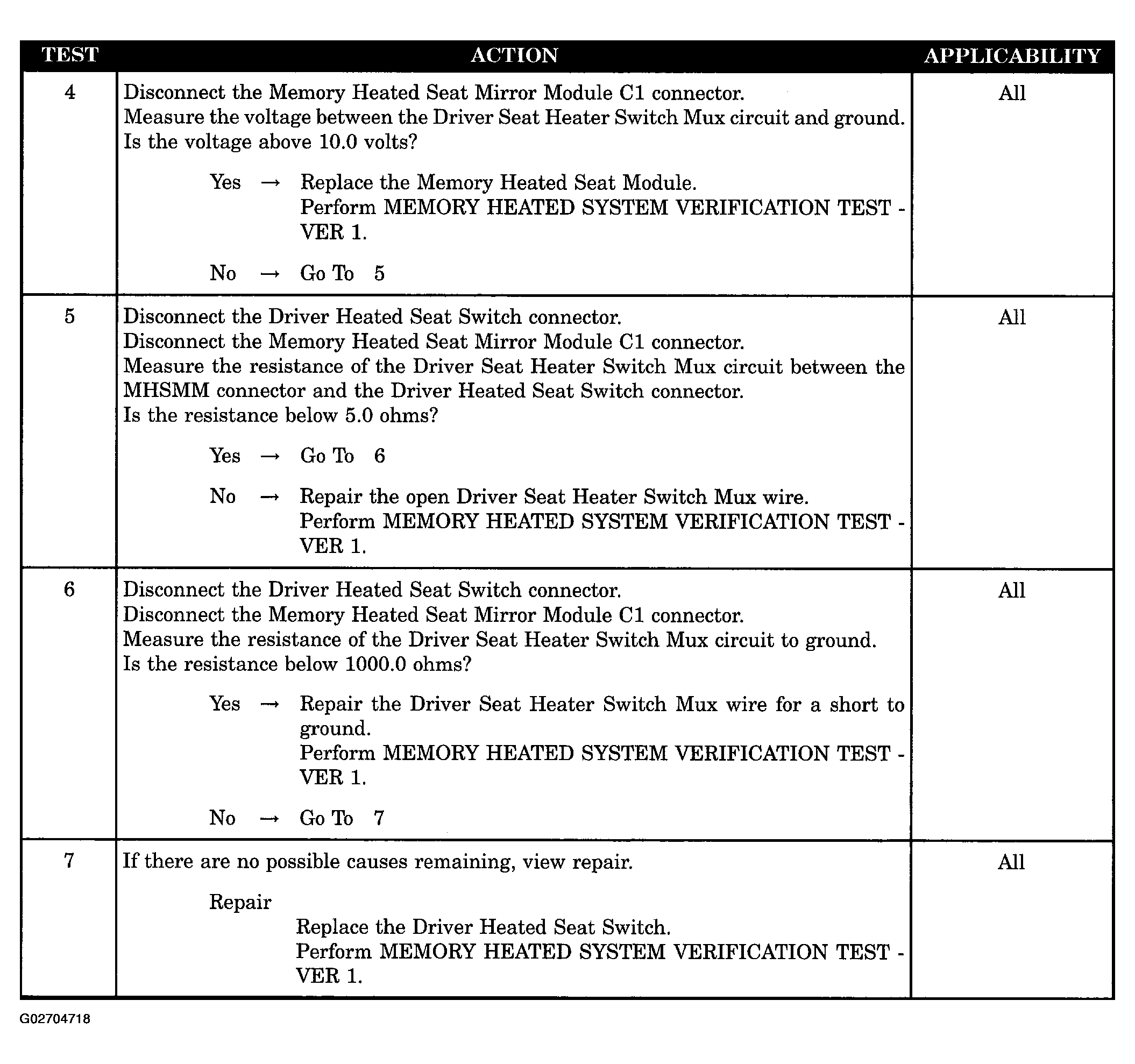

Fig 2: Driver Heated Seat Switch Open/Shorted To Ground - Diagnostic Procedure (2 Of 2)
G02704718Courtesy of DAIMLERCHRYSLER CORP.
