Diagnostic Procedure

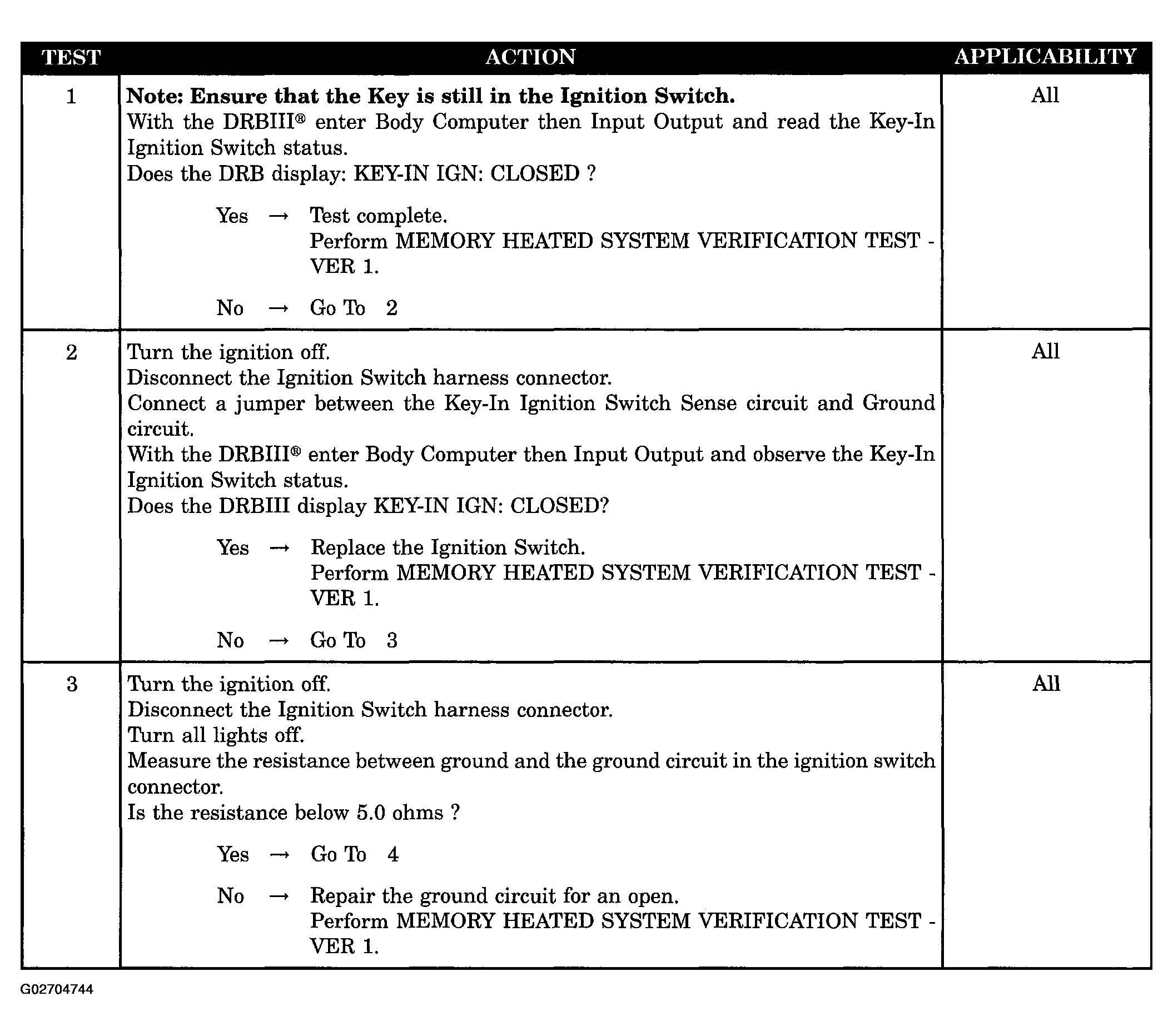

Fig 1: Heated Seats Inoperative Due To Key-In Ignition Switch Input - Diagnostic Procedure (1 Of 2)
G02704744Courtesy of DAIMLERCHRYSLER CORP.

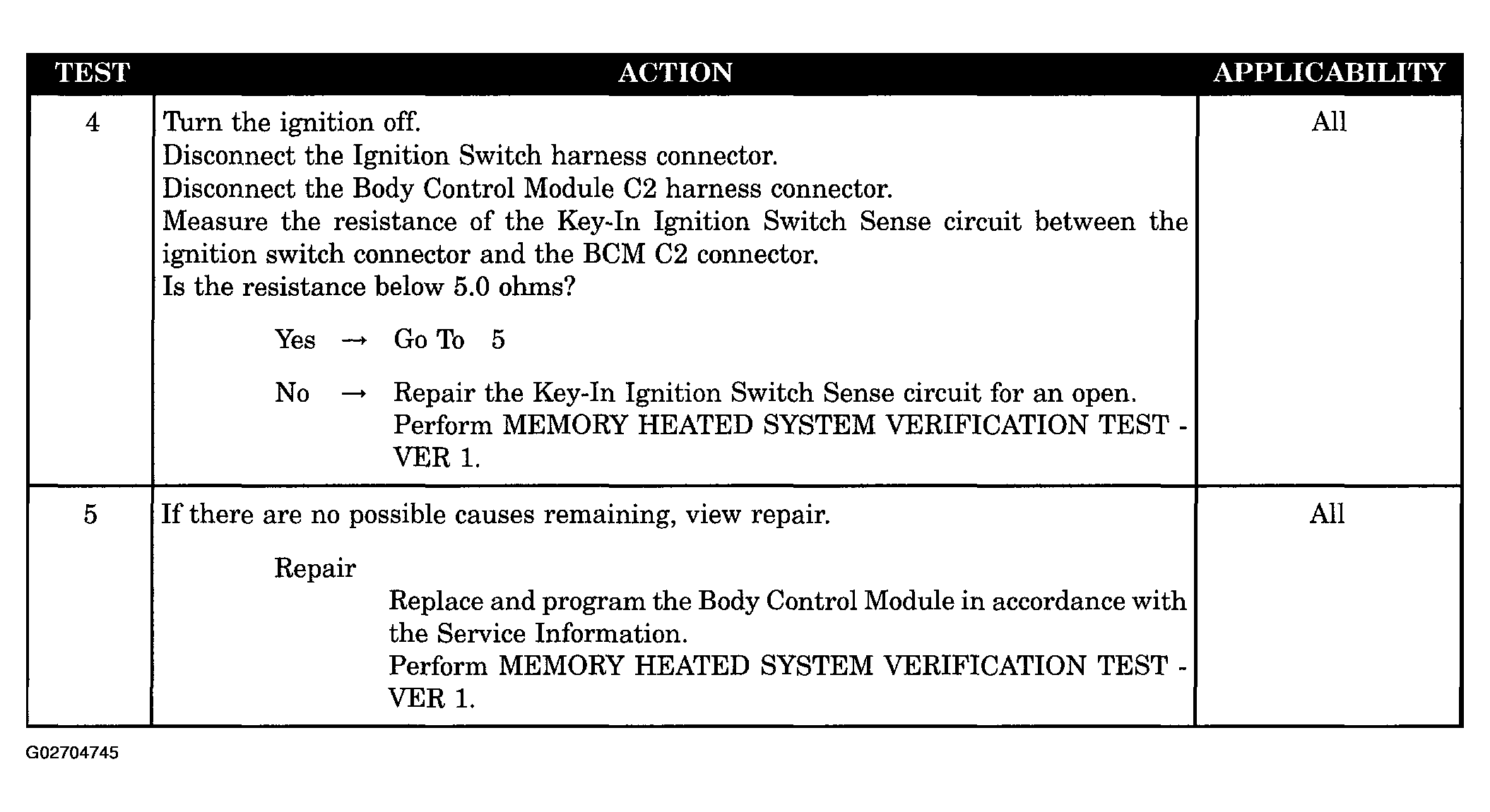

Fig 2: Heated Seats Inoperative Due To Key-In Ignition Switch Input - Diagnostic Procedure (2 Of 2)
G02704745Courtesy of DAIMLERCHRYSLER CORP.
