Diagnostic Procedure

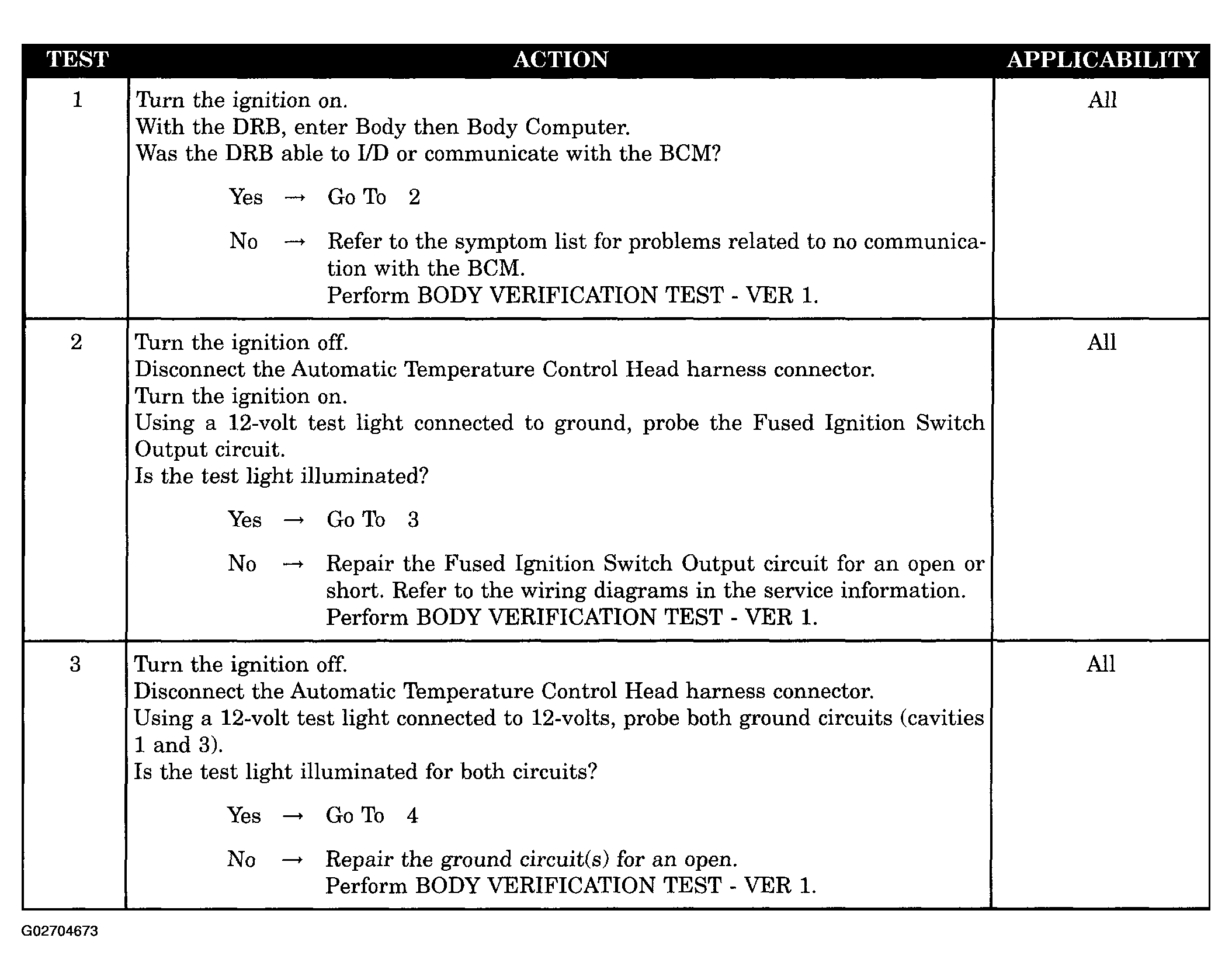

Fig 1: No Response From Automatic Temperature Control Module - Diagnostic Procedure (1 Of 2)
G02704673Courtesy of DAIMLERCHRYSLER CORP.

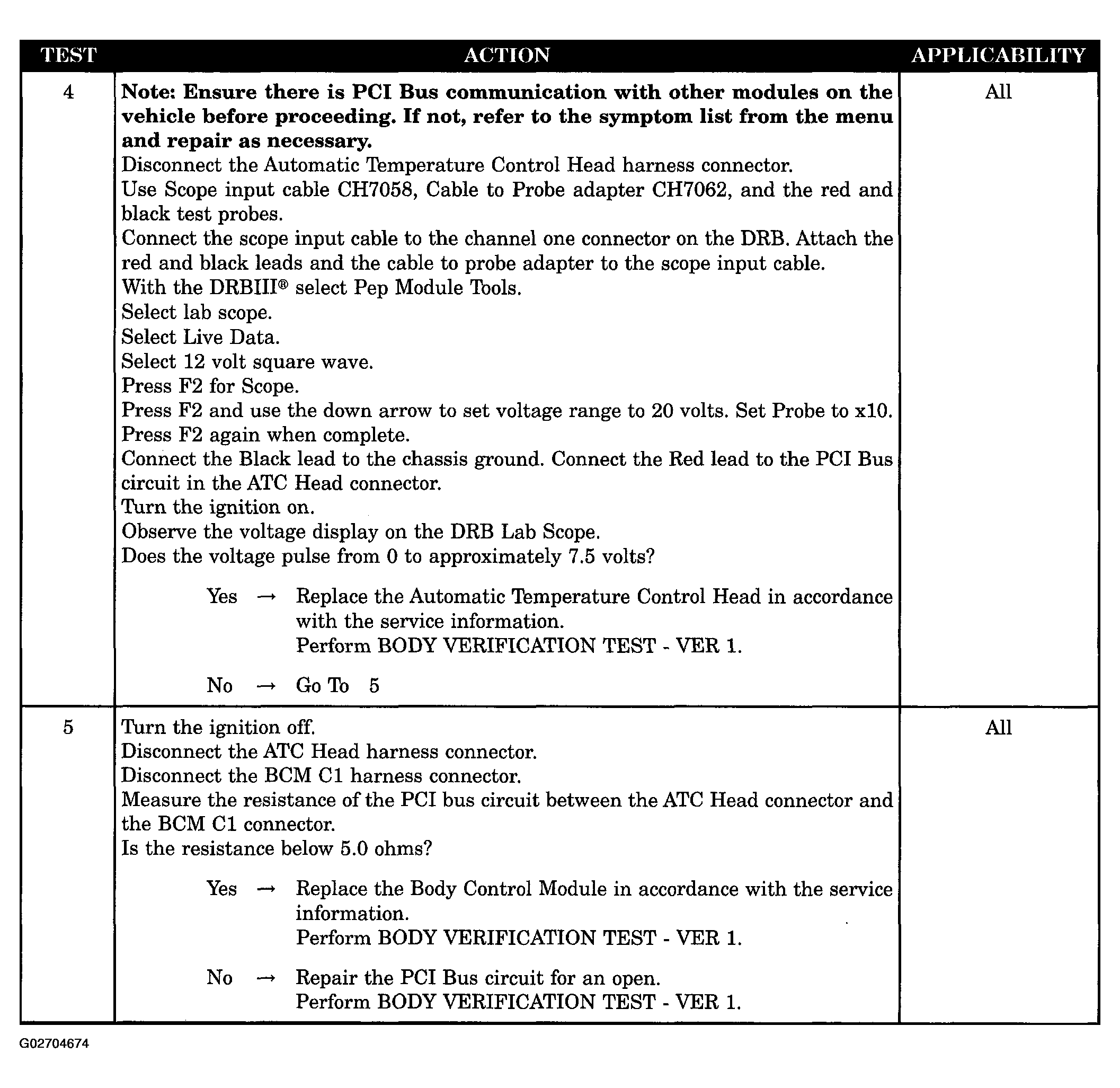

Fig 2: No Response From Automatic Temperature Control Module - Diagnostic Procedure (2 Of 2)
G02704674Courtesy of DAIMLERCHRYSLER CORP.
