Fuel Pump Module (Harness Connector) - C308

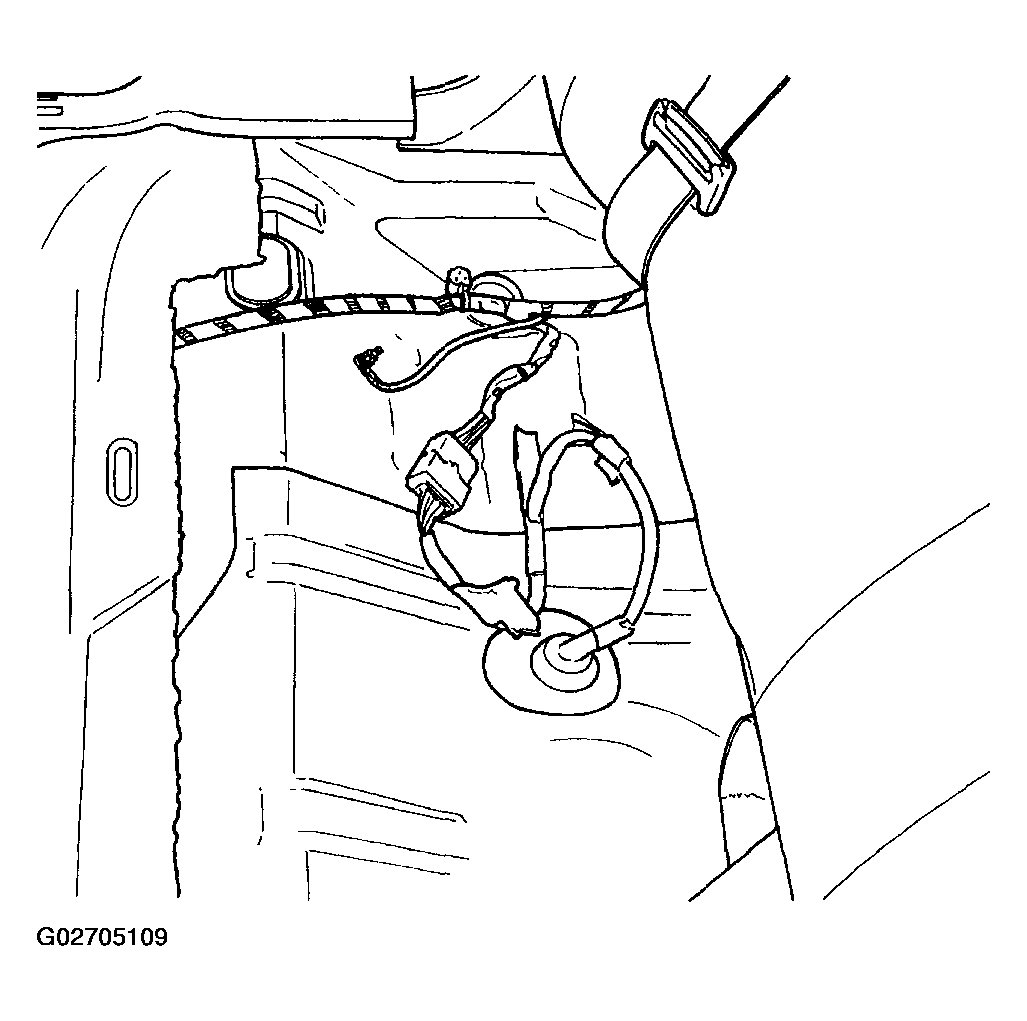

Fig 1: Identifying Instrument Cluster Fuel Pump Module (Harness Connector) - C308

G02705109

Courtesy of DAIMLERCHRYSLER CORP.
