Removal & Installation (Electronic Transmission Range Selector)

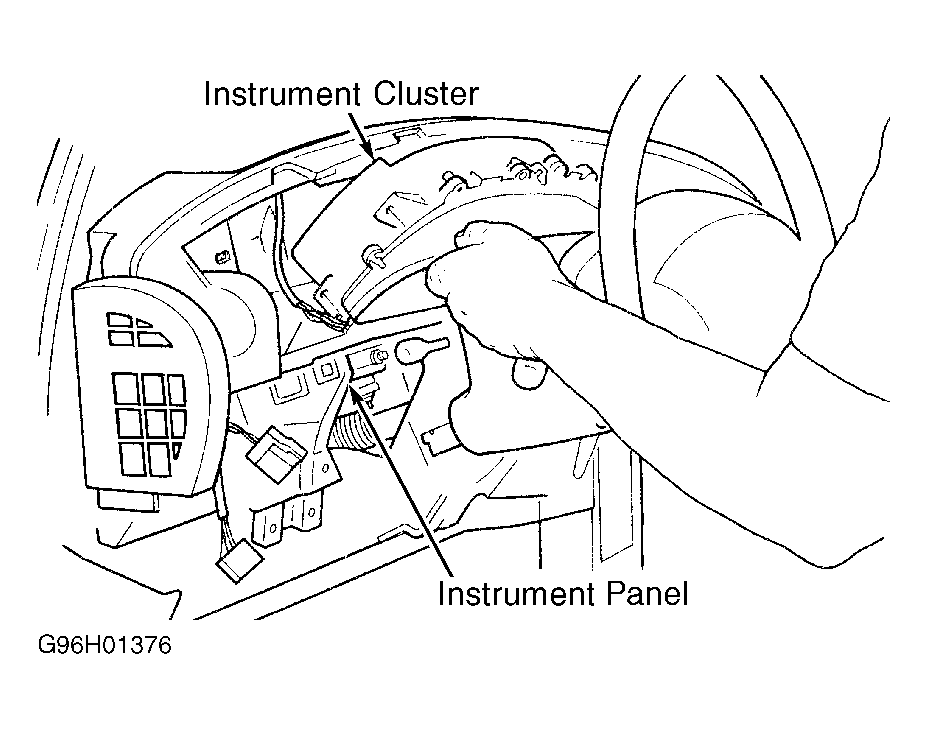

Disconnect negative battery cable. Remove upper steering column bezel. Remove instrument cluster bezel screws. Tilt steering column down. Remove instrument cluster bezel. Remove instrument cluster-to-instrument panel screws. Rotate top of cluster rearward. See Figure. Unplug wire connectors from back of cluster. Remove instrument cluster. To install, reverse removal procedure.
