Verification Tests

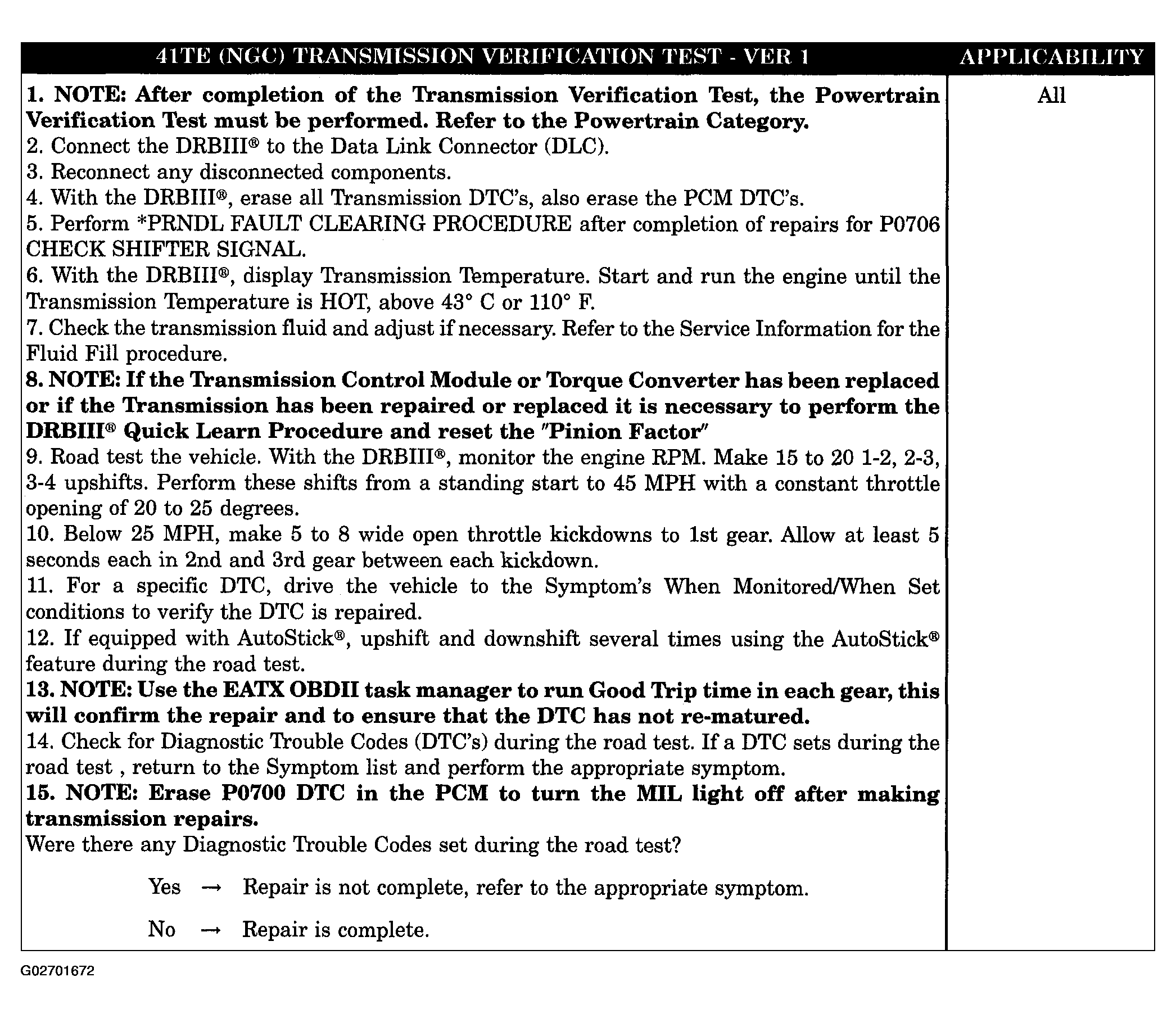

Fig 1: 41TE (NGC) Transmission Verification Test Ver - 1 (1 Of 2)
G02701672Courtesy of DAIMLERCHRYSLER CORP.

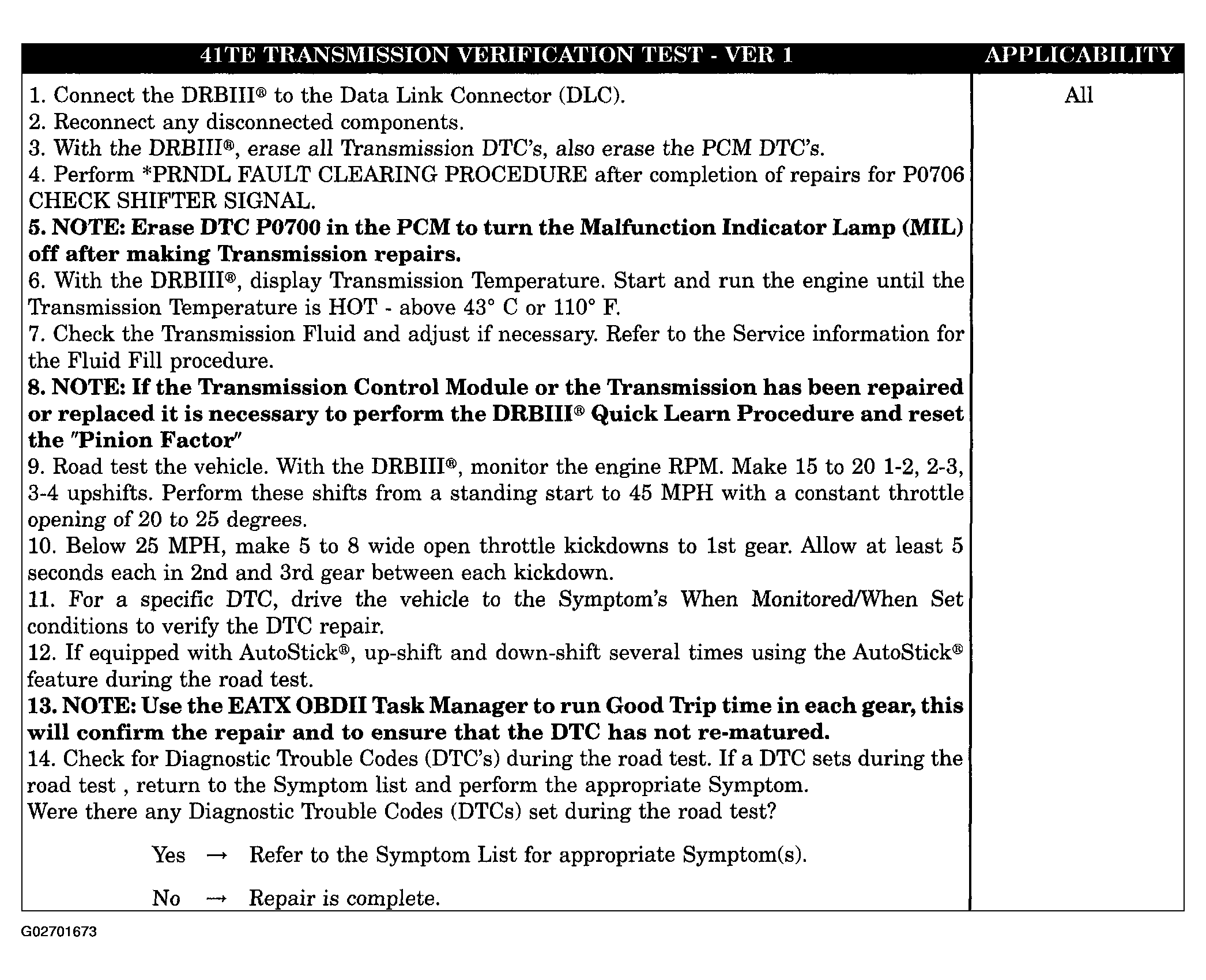

Fig 2: 41TE (NGC) Transmission Verification Test Ver - 1 (1 Of 2)
G02701673Courtesy of DAIMLERCHRYSLER CORP.

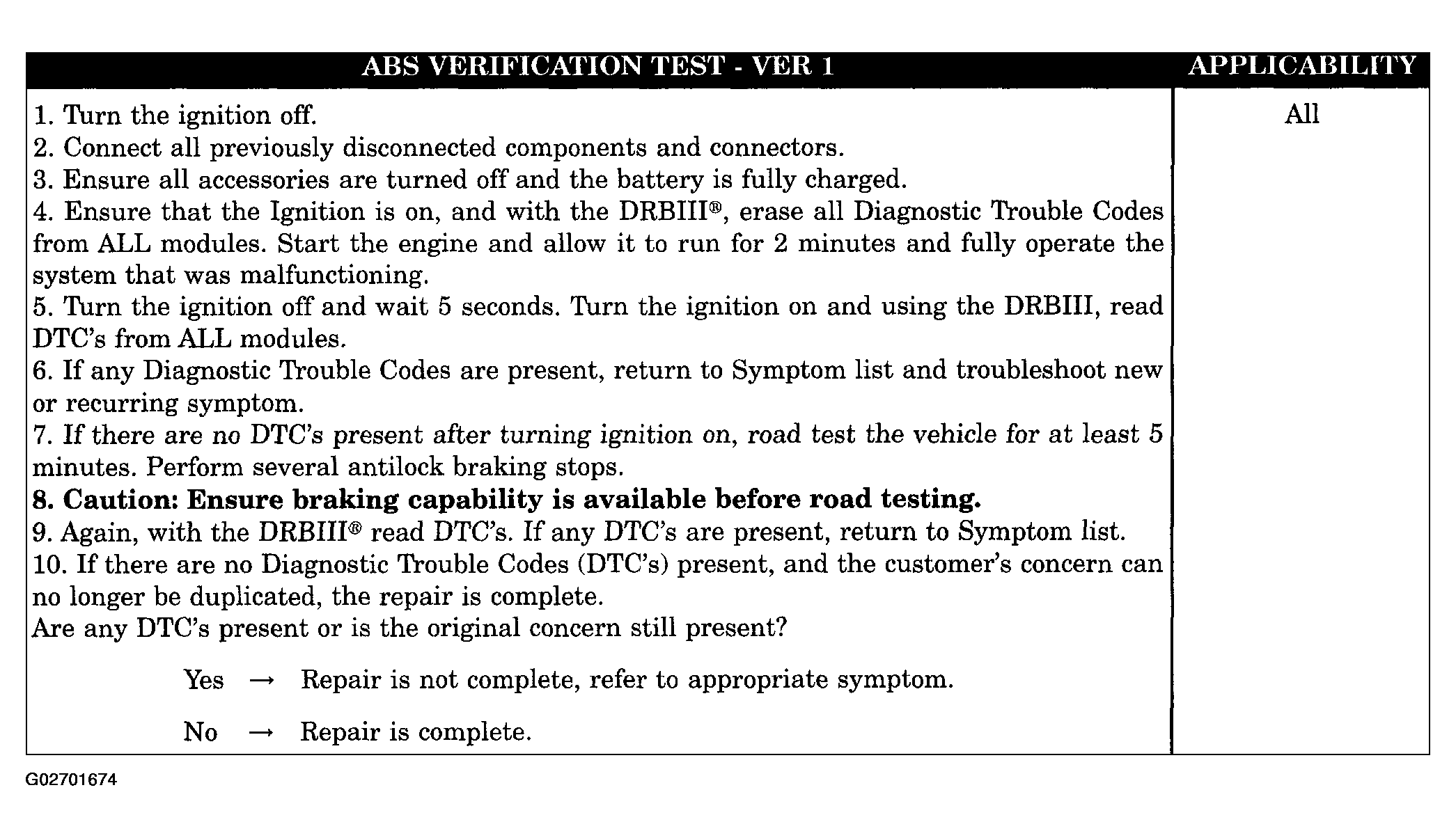

Fig 3: ABS Verification Test Ver -1
G02701674Courtesy of DAIMLERCHRYSLER CORP.

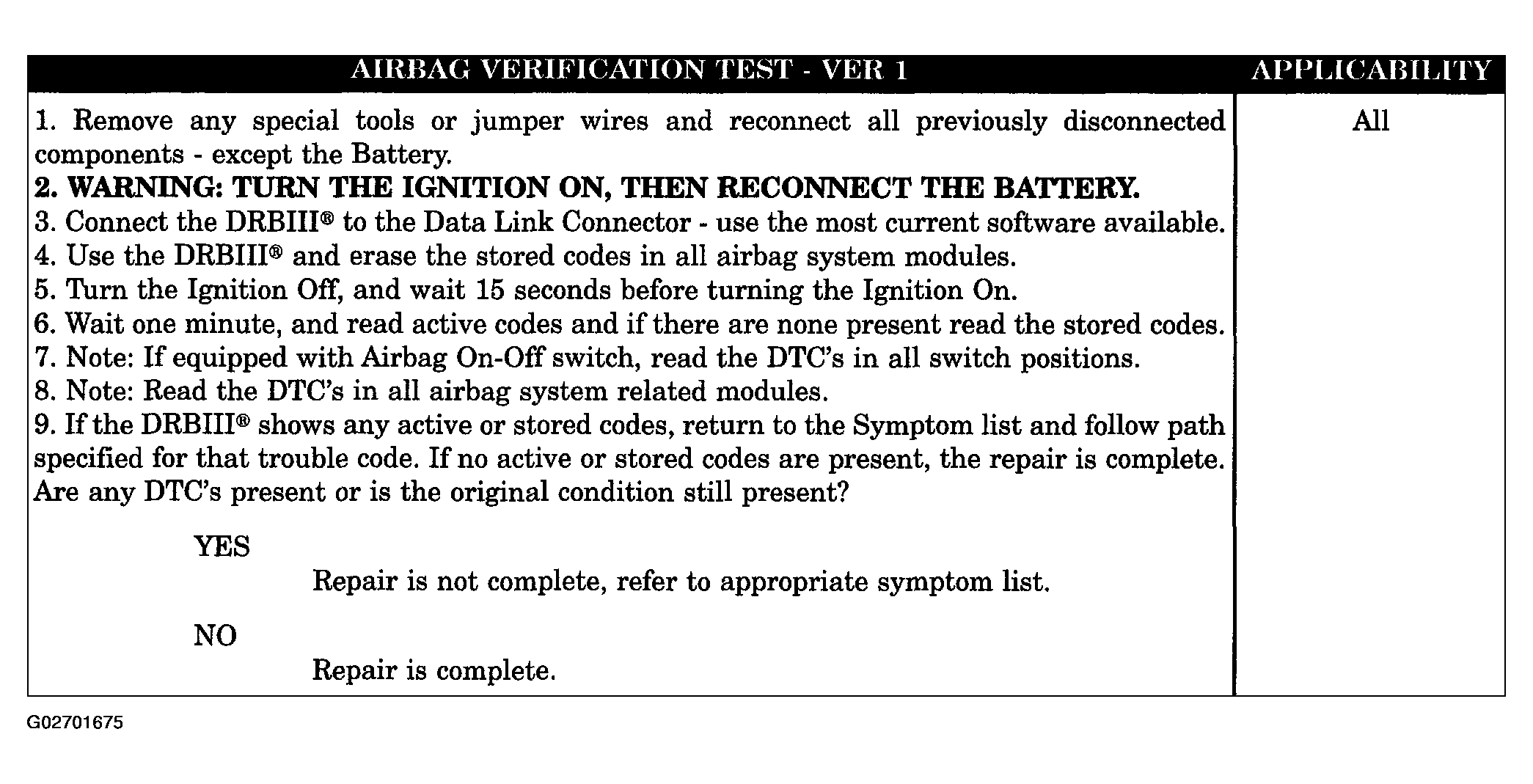

Fig 4: Airbag Verification Test Ver -1
G02701675Courtesy of DAIMLERCHRYSLER CORP.

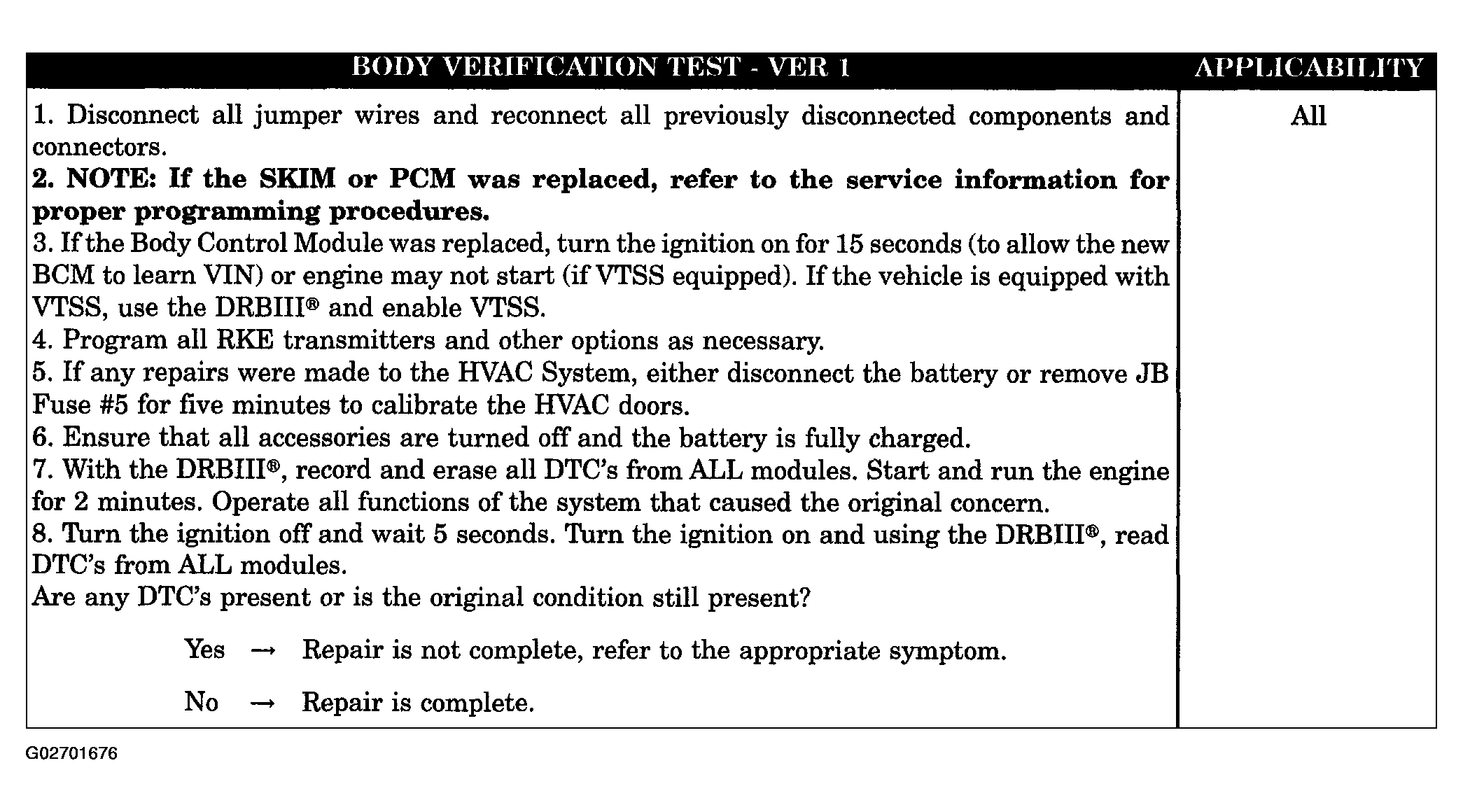

Fig 5: Body Verification Test Ver -1
G02701676Courtesy of DAIMLERCHRYSLER CORP.

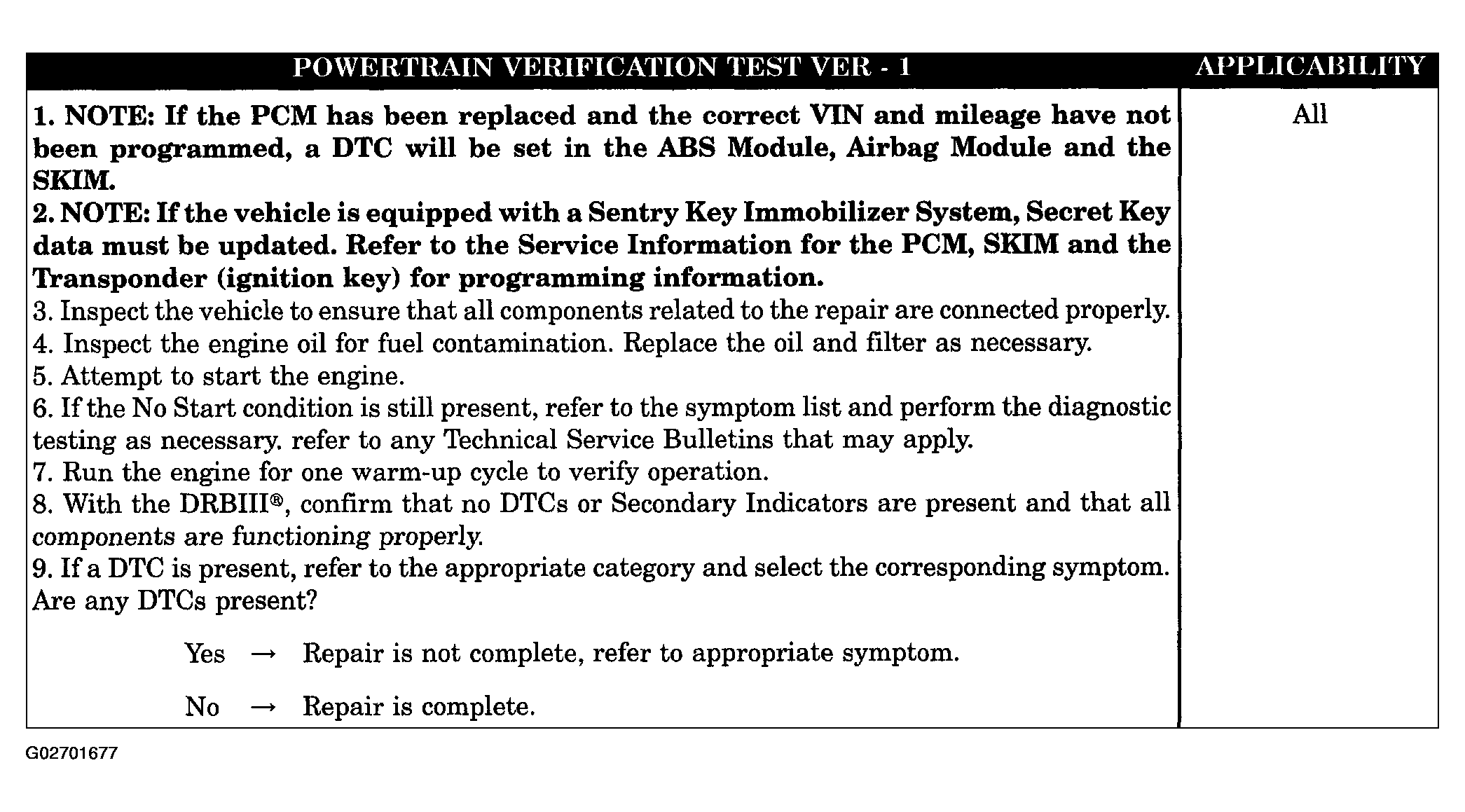

Fig 6: Powertrain Verification Test Ver - 1
G02701677Courtesy of DAIMLERCHRYSLER CORP.

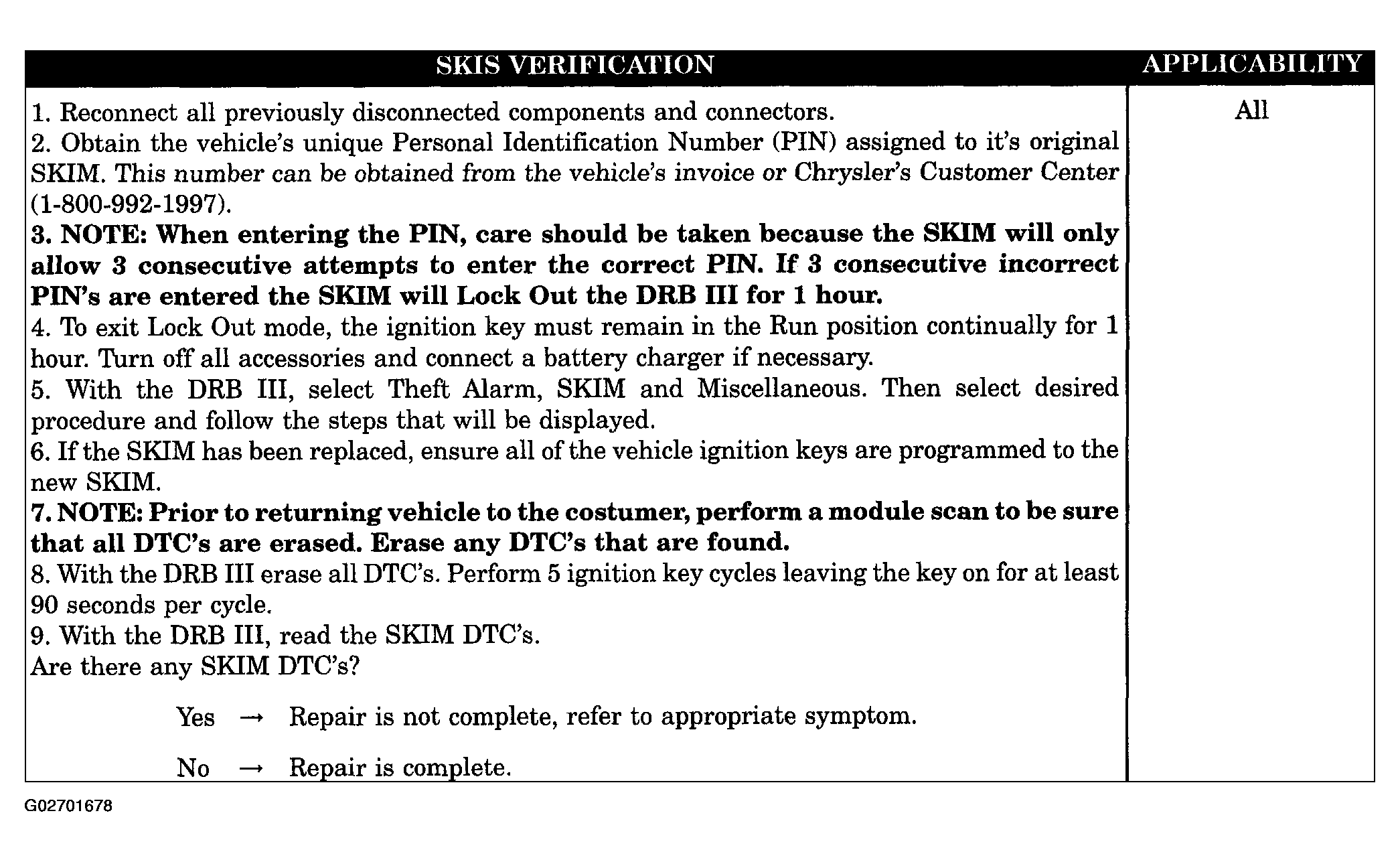

Fig 7: SKIM Verification Test
G02701678Courtesy of DAIMLERCHRYSLER CORP.

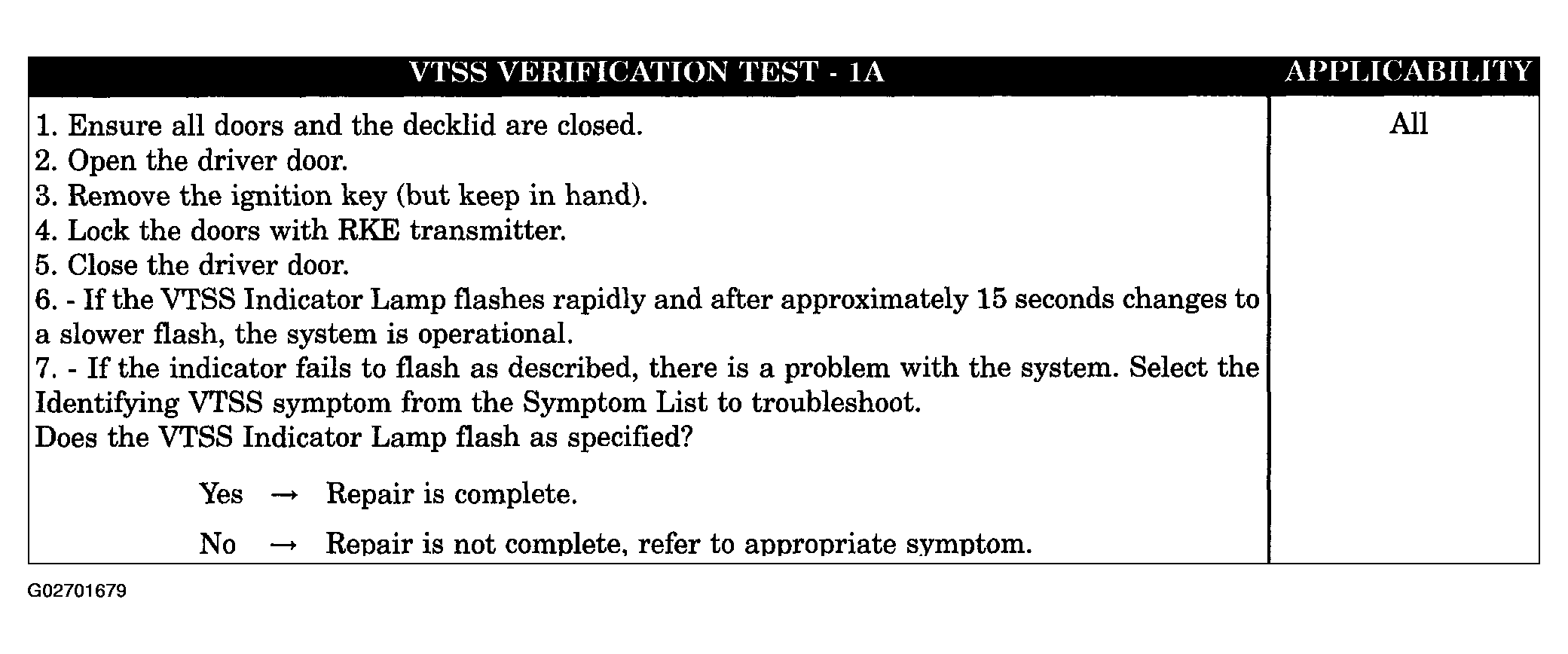

Fig 8: VTSS Verification Test - 1A
G02701679Courtesy of DAIMLERCHRYSLER CORP.

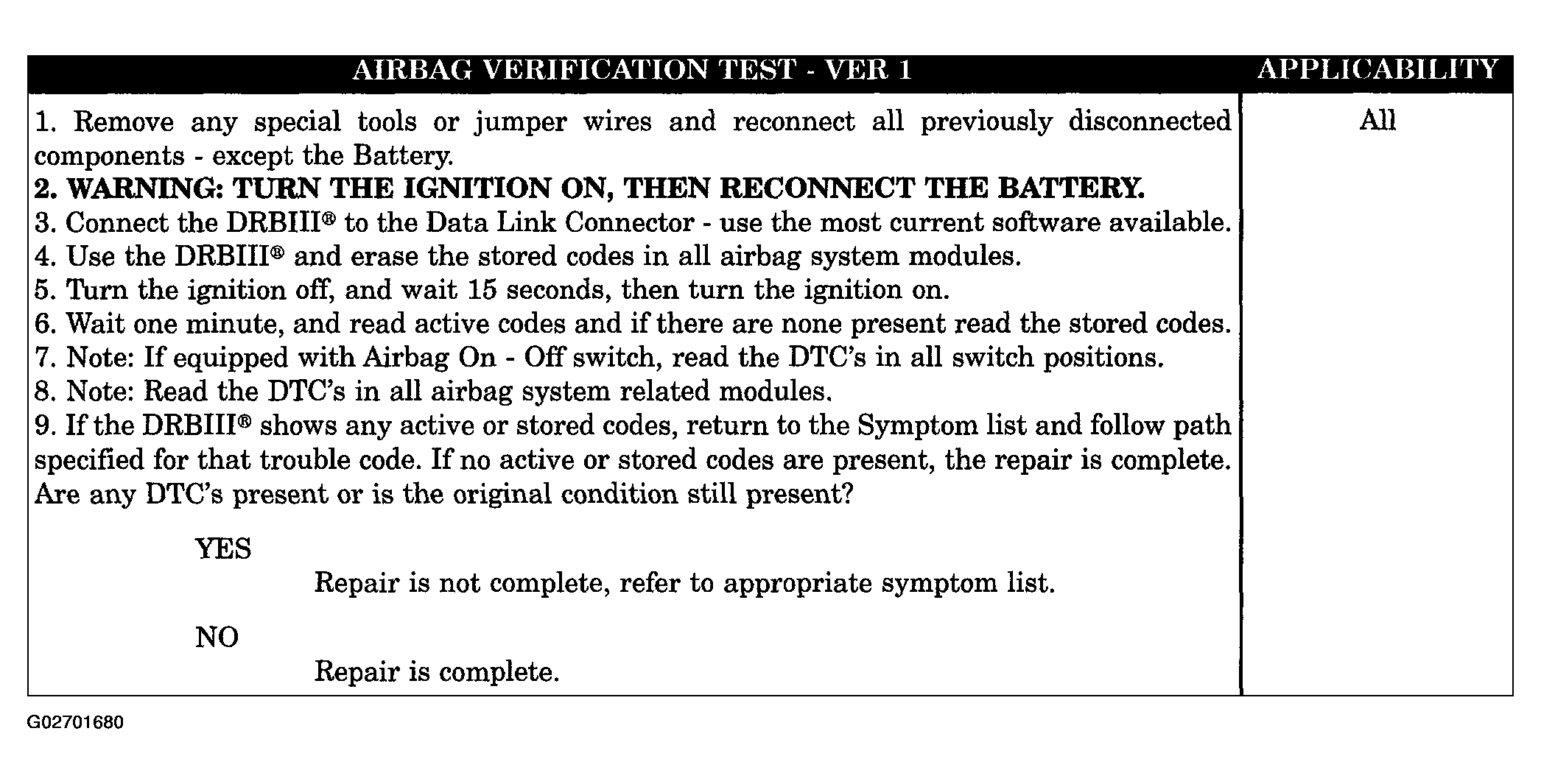

Fig 9: Airbag Verification Test Ver -1
G02701680Courtesy of DAIMLERCHRYSLER CORP.
