Four Window Drop Inoperative - Diagnostic Procedure

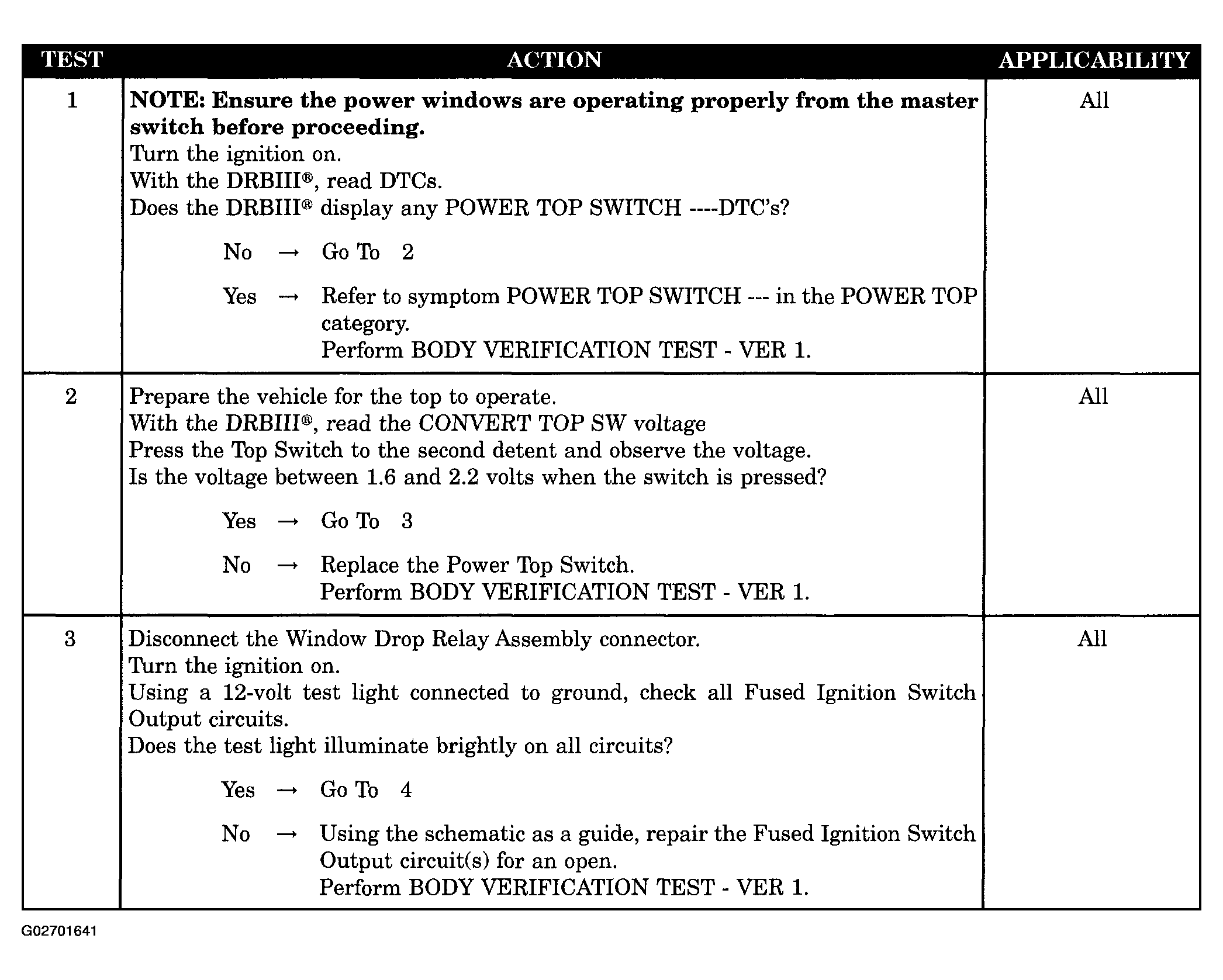

Fig 1: Four Window Drop Inoperative - Diagnostic Procedure (1 Of 2)
G02701641Courtesy of DAIMLERCHRYSLER CORP.

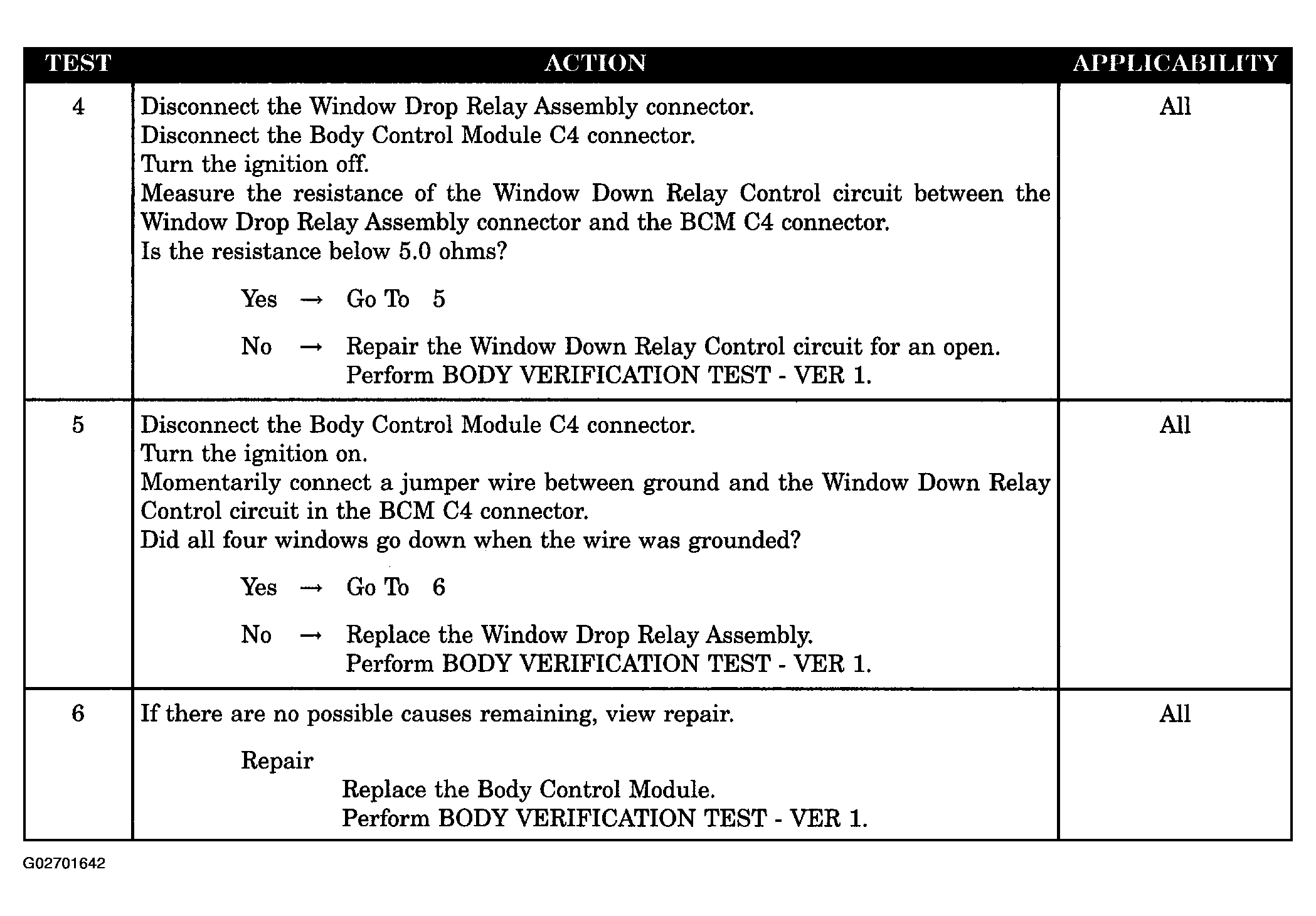

Fig 2: Four Window Drop Inoperative - Diagnostic Procedure (2 Of 2)
G02701642Courtesy of DAIMLERCHRYSLER CORP.
