Passenger Squib 2 Short To Ground Diagnostic Procedure

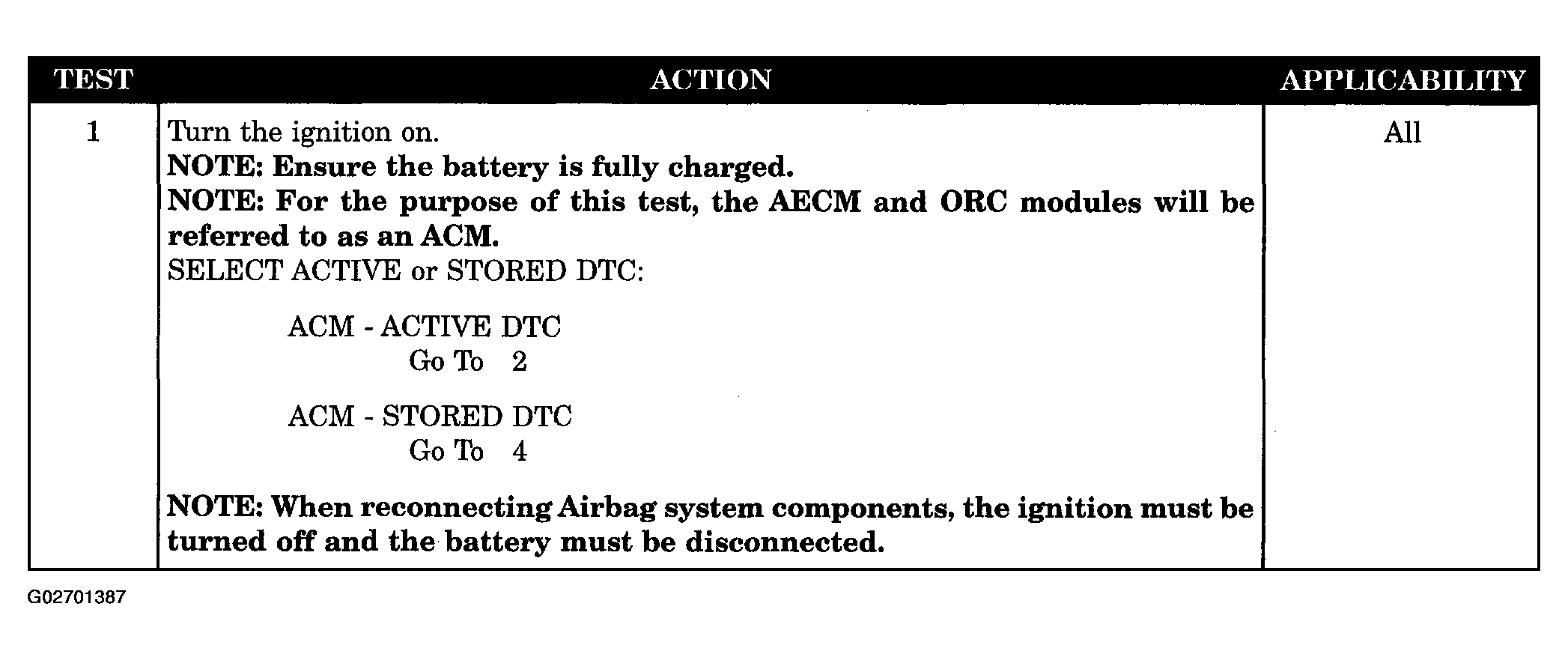

Fig 1: Passenger Squib 2 Short To Ground Diagnostic Procedure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

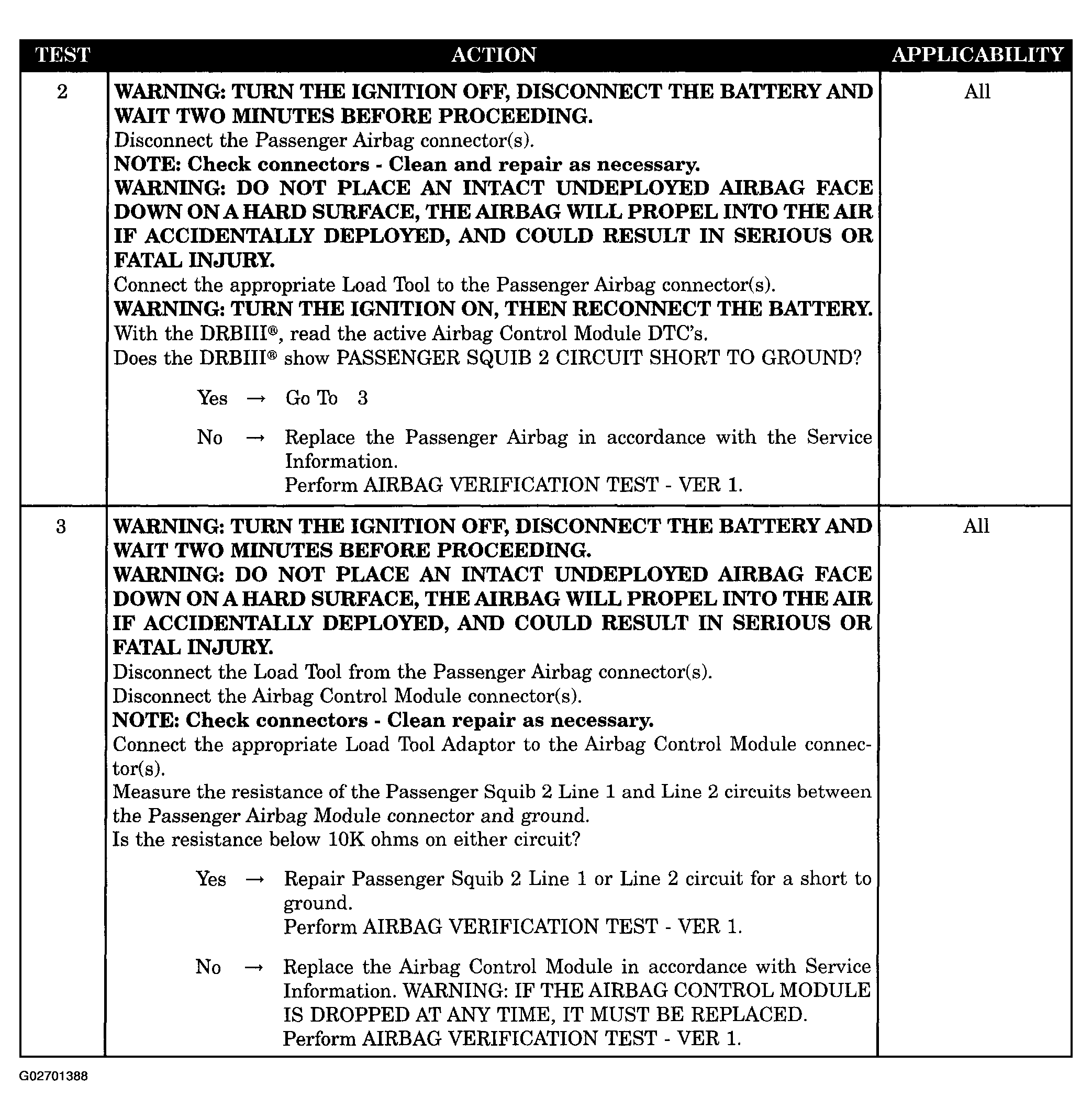

Fig 2: Passenger Squib 2 Short To Ground Diagnostic Procedure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

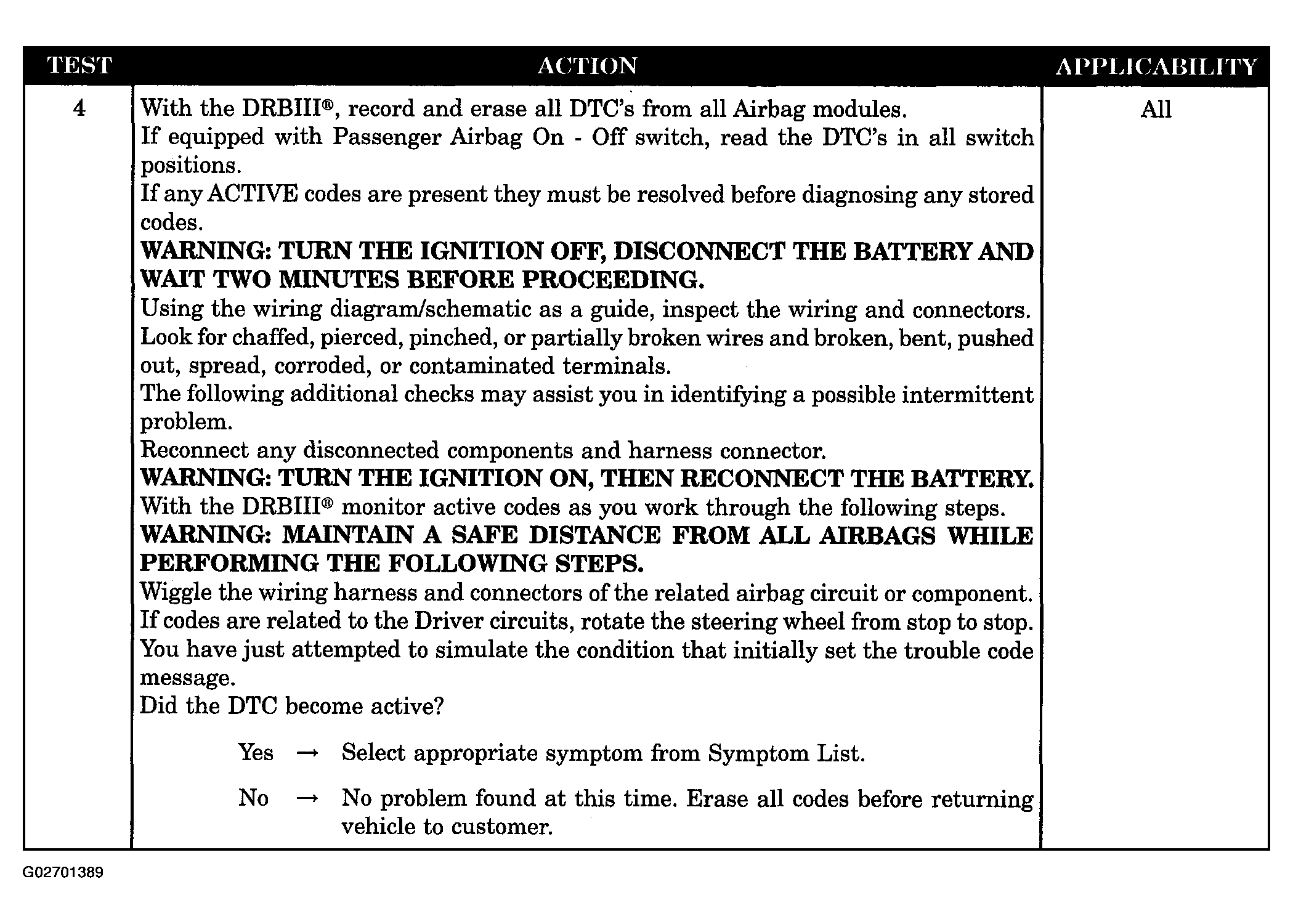

Fig 3: Passenger Squib 2 Short To Ground Diagnostic Procedure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
