Driver Seat Belt TENSIONER Circuit Short Diagnostic Procedure

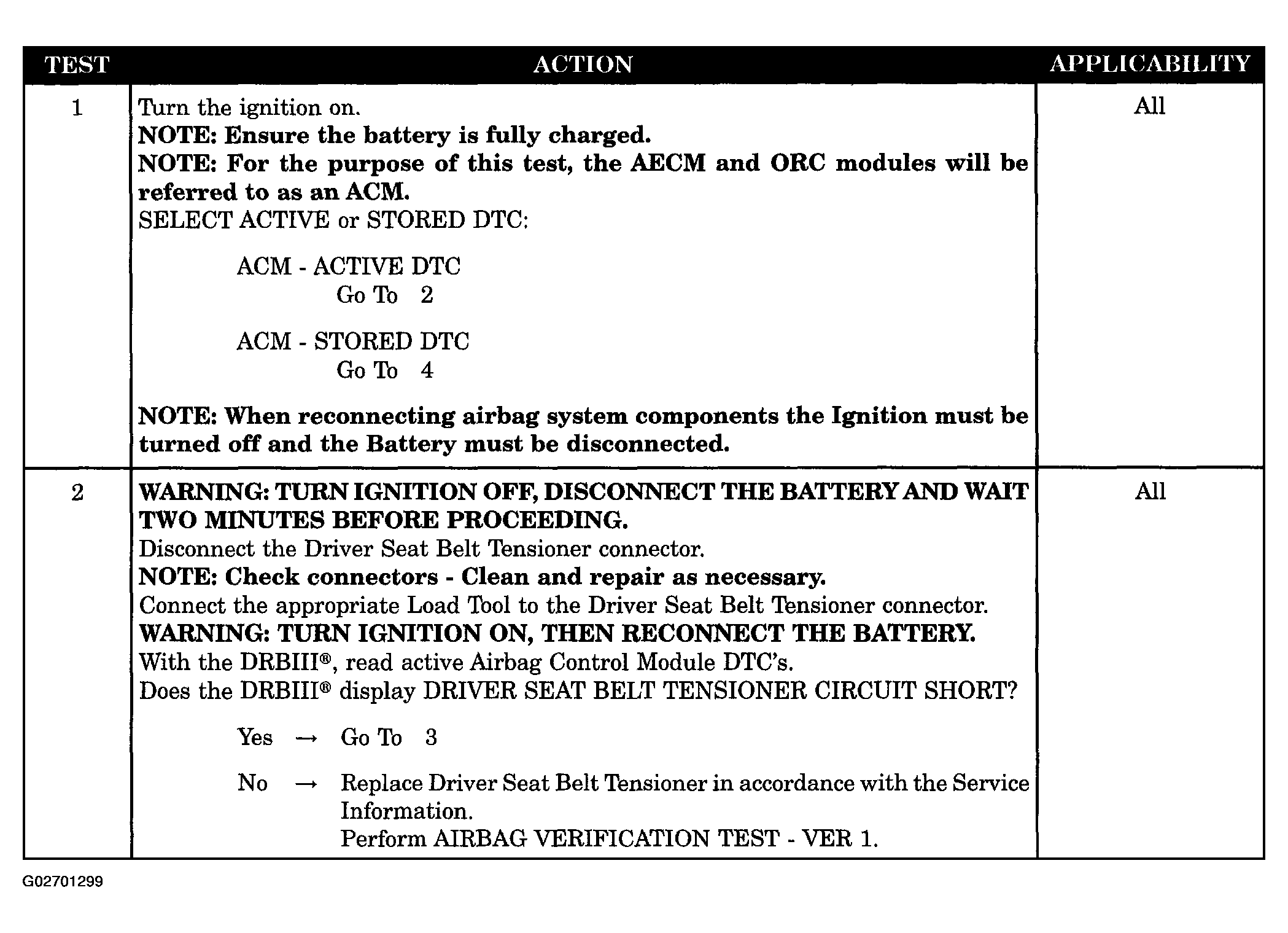

Fig 1: Driver Seat Belt Tensioner Circuit Short Diagnostic Procedure (1 Of 2)
G02701299Courtesy of DAIMLERCHRYSLER CORP.

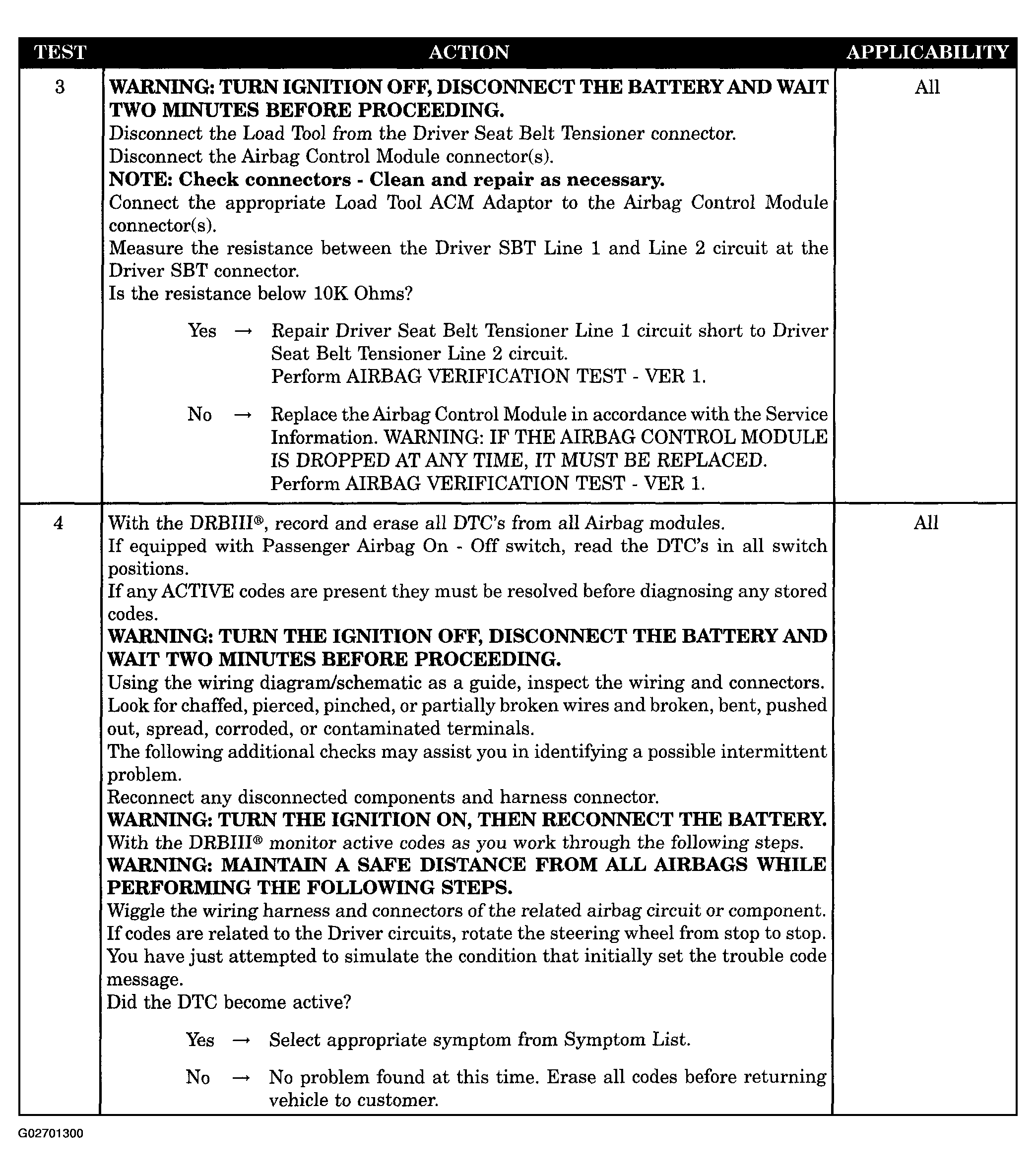

Fig 2: Driver Seat Belt Tensioner Circuit Short Diagnostic Procedure (2 Of 2)
G02701300Courtesy of DAIMLERCHRYSLER CORP.
