Removal & Installation
- Raise parking brake lever as high as possible.
- Move transmission shifter to neutral position.
- Loosen set screw on front of shifter knob and remove shift lever knob.

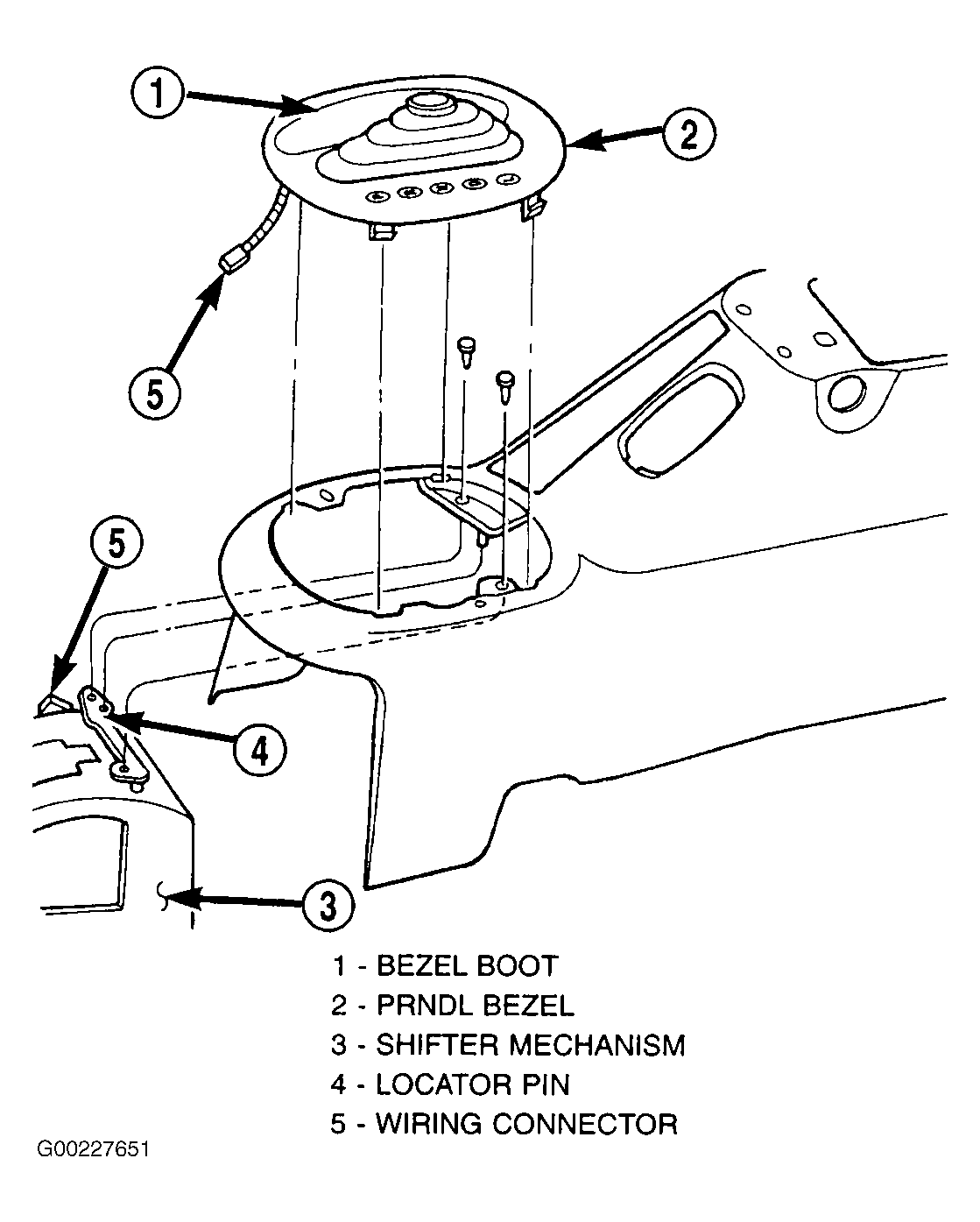

- Remove lighted transmission range indicator harness bezel. See Fig 1
.
- Disconnect transmission range indicator bezel harness connector at the shifter mechanism.

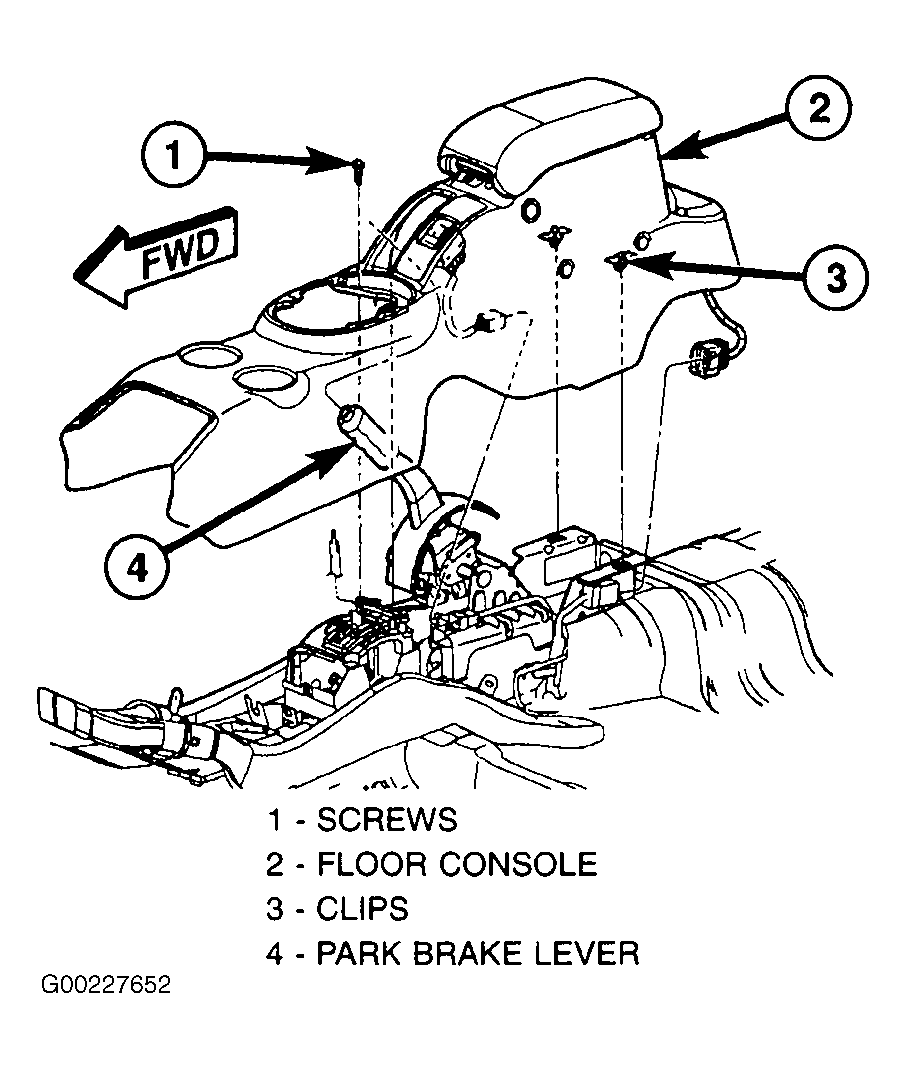

- Remove screws, next to floor shifter and in console storage compartment, attaching floor console to brackets on floor pan. See Fig 2
.
- Disconnect harness connector for floor console accessories at floor pan.
- Remove console from vehicle. To install, reverse removal procedure.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
