Instrument Panel Center Bezel: Removal

  1. Open hood. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, gently pry out the front power window switch from the instrument panel switch bezel and disconnect the switch electrical connector. See Fig 2.
  3. Remove HVAC control knobs from control head.
  4. Remove one retaining screw to center bezel inside window switch opening. See Fig 1.
  5. Using a trim stick or equivalent, gently pry the center bezel out of the instrument panel and remove from vehicle.

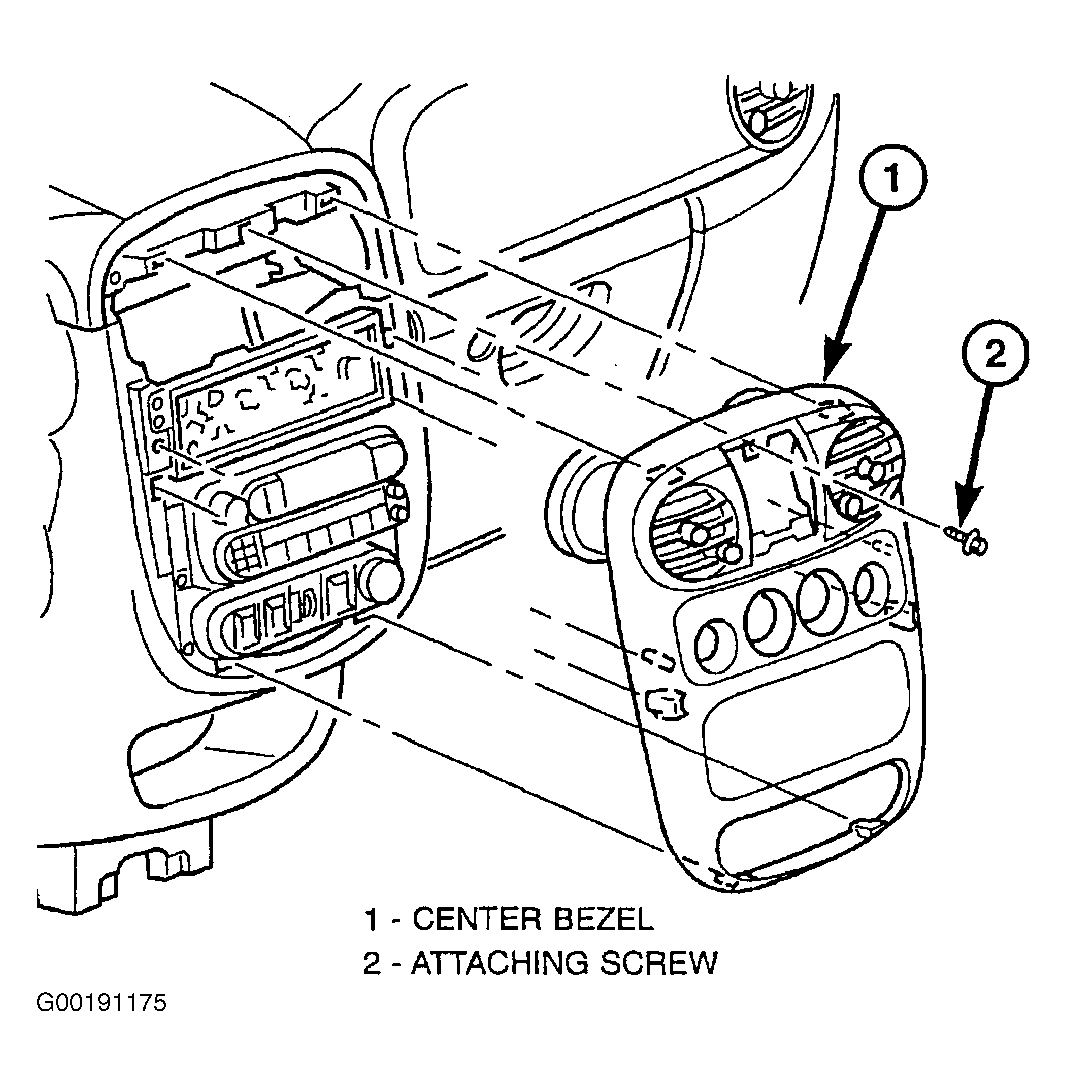

Fig 1: Removing Instrument Panel Center Bezel
G00191175Courtesy of DAIMLERCHRYSLER CORP.

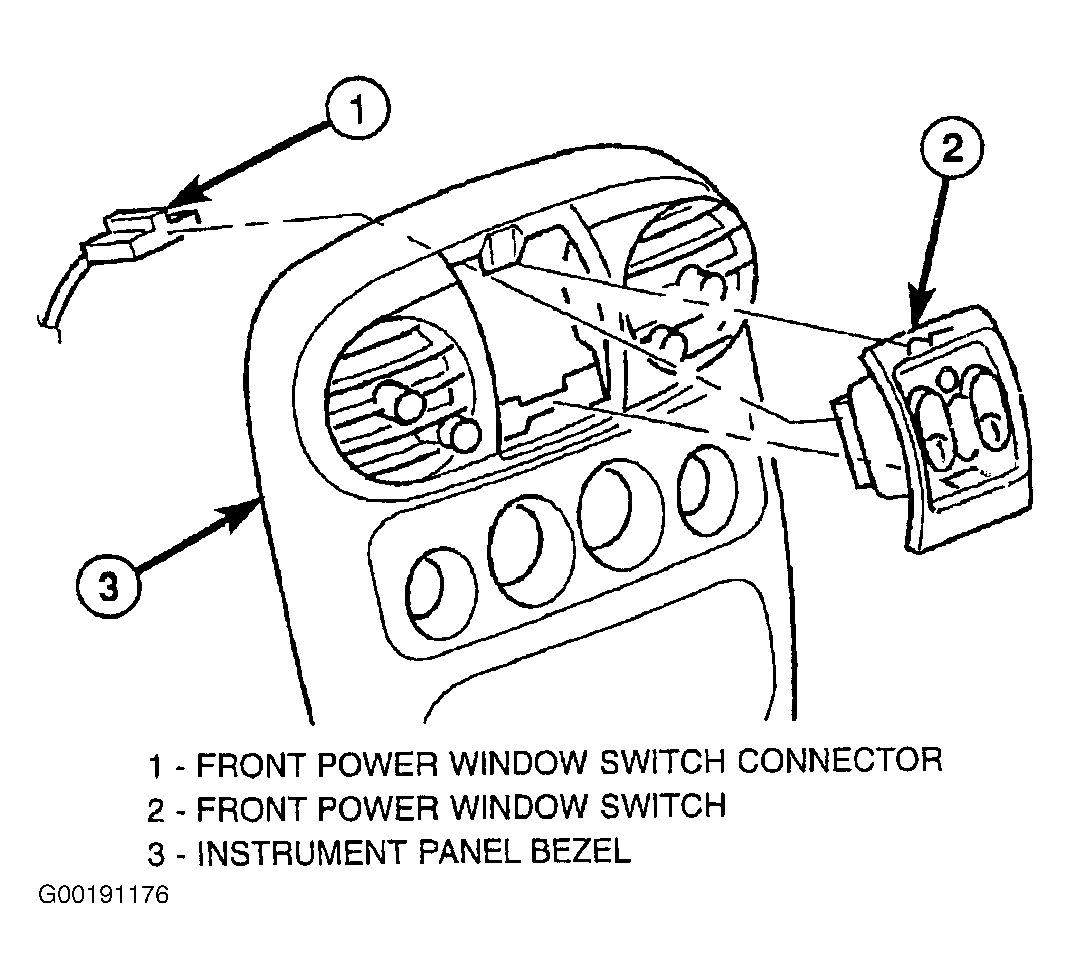

Fig 2: Removing Front Power Window Switch
G00191176Courtesy of DAIMLERCHRYSLER CORP.
