Cluster Mask/Lens: Removal

  1. Remove instrument cluster. See INSTRUMENT CLUSTER .
  2. To separate the mask/lens from the cluster housing, depress the locking tabs, starting at one point and working all the way around the cluster, and then pull up on the mask/lens. See Fig 1.

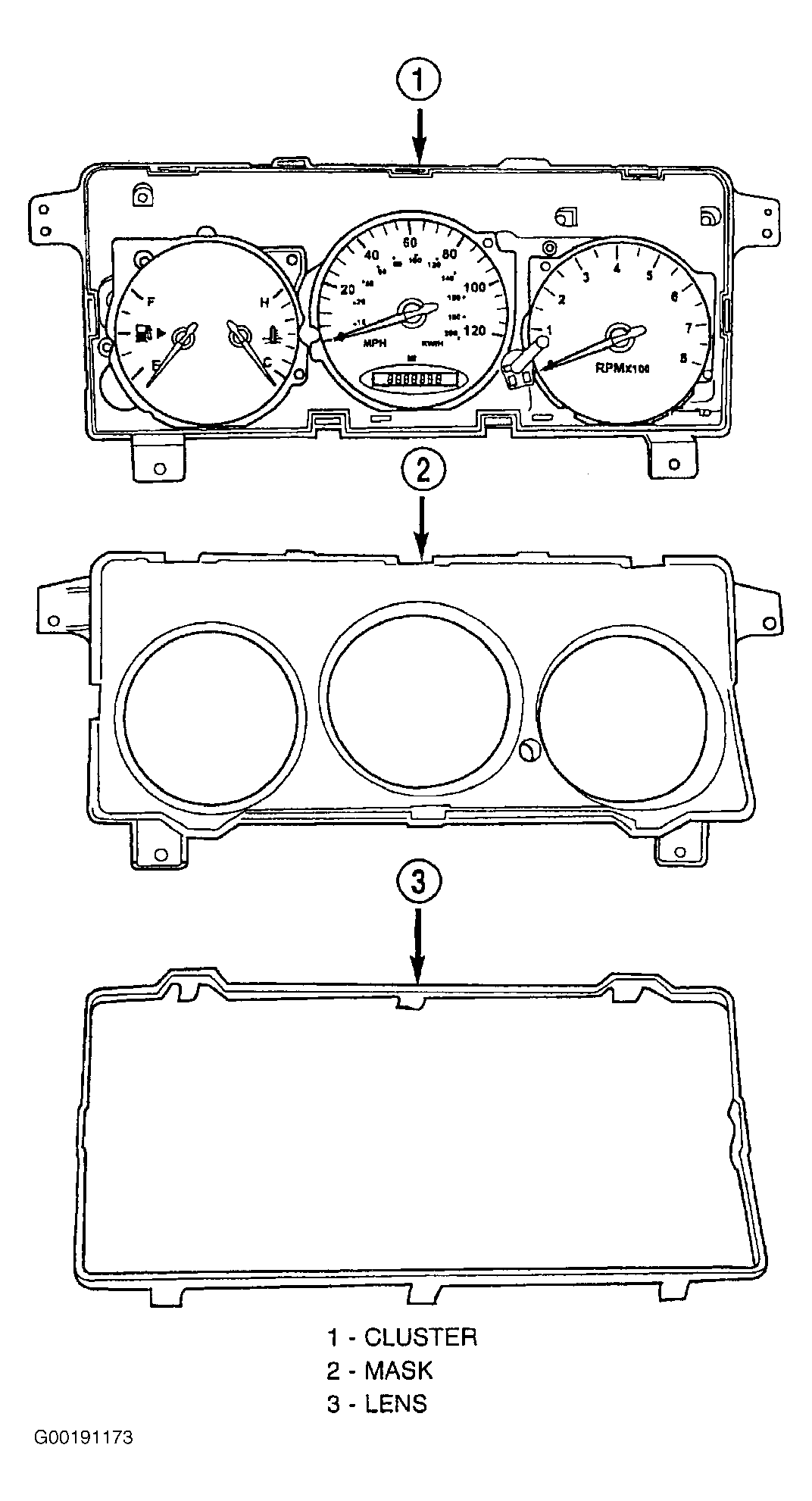

Fig 1: Removing & Installing Instrument Cluster Mask/Lens
G00191173Courtesy of DAIMLERCHRYSLER CORP.
