Cluster Bezel: Removal

  1. Open hood. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel top cover. See INSTRUMENT PANEL TOP COVER .
  3. Remove the left lower instrument panel bezel. See LEFT LOWER INSTRUMENT PANEL TRIM BEZEL .
  4. Remove the left instrument panel end cap. See LEFT INSTRUMENT PANEL END CAP .
  5. Grab the sides of the instrument cluster bezel and gently give a quick pull to unsnap the cluster bezel.
  6. Disconnect the turn signal lamps from the instrument cluster bezel. Remove bezel from vehicle. See Fig 1.

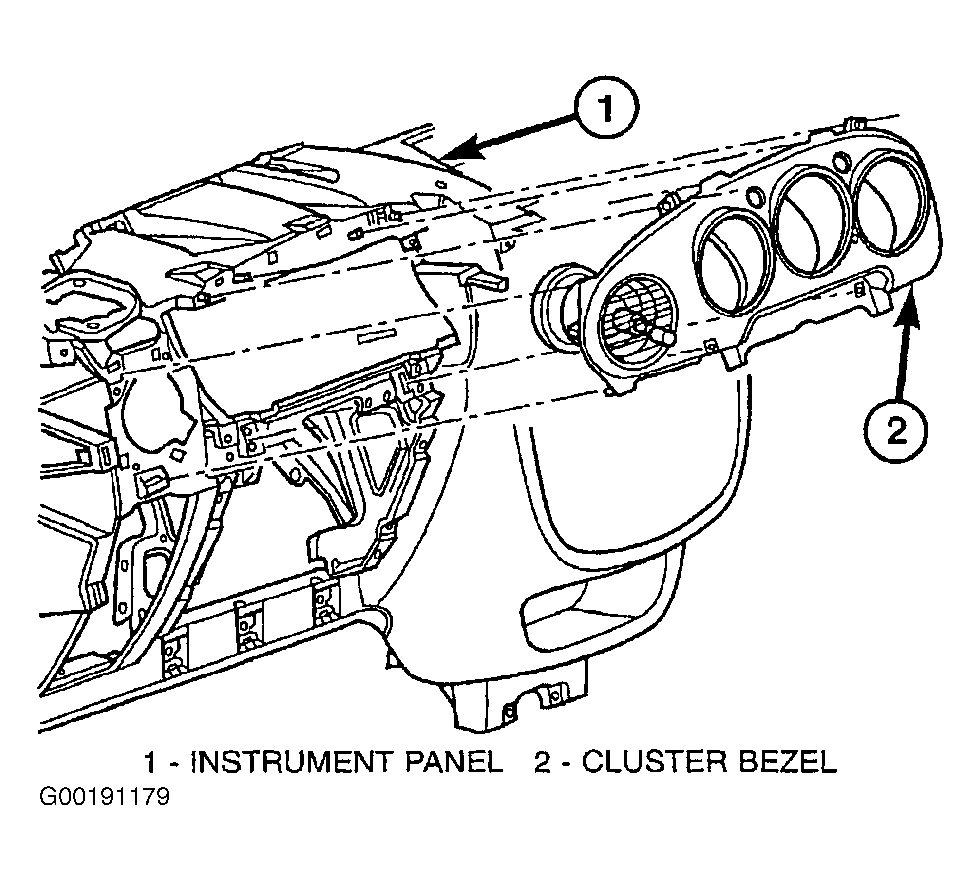

Fig 1: Removing Instrument Cluster Bezel
G00191179Courtesy of DAIMLERCHRYSLER CORP.
