Accessory Switch Bezel: Installation

    NOTE: If replacing the accessory switch bezel, you must transfer the switches to the new bezel.
  1. Reconnect accessory switch bezel connectors. Reinstall switch bezel into instrument panel opening and install two retaining screws. See Fig 1.
  2. Reinstall instrument panel center bezel. See INSTRUMENT PANEL CENTER BEZEL .
  3. Reconnect the battery negative cable. Close the hood.

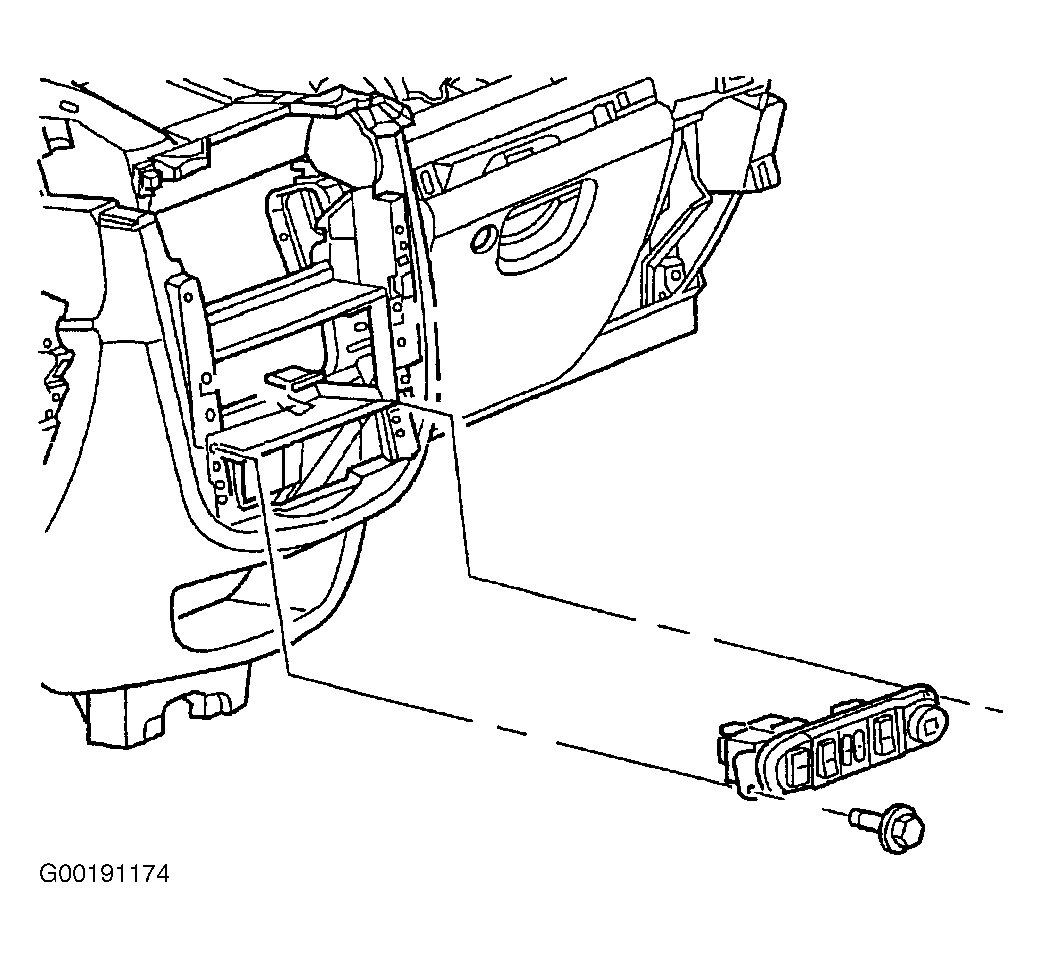

Fig 1: Removing & Installing Accessory Switch Bezel
G00191174Courtesy of DAIMLERCHRYSLER CORP.
