Spot Lamp - Police: Removal

  1. Remove the PDC cover and pull either the X or Y fuse, depending on which spot lamp is being serviced.
  2. Raise the spot lamp from the stowed to the operating position.
  3. Support the spot lamp sealed beam in position.
  4. Remove the screws retaining the bezel to the spot lamp head assembly (Fig 1 ).

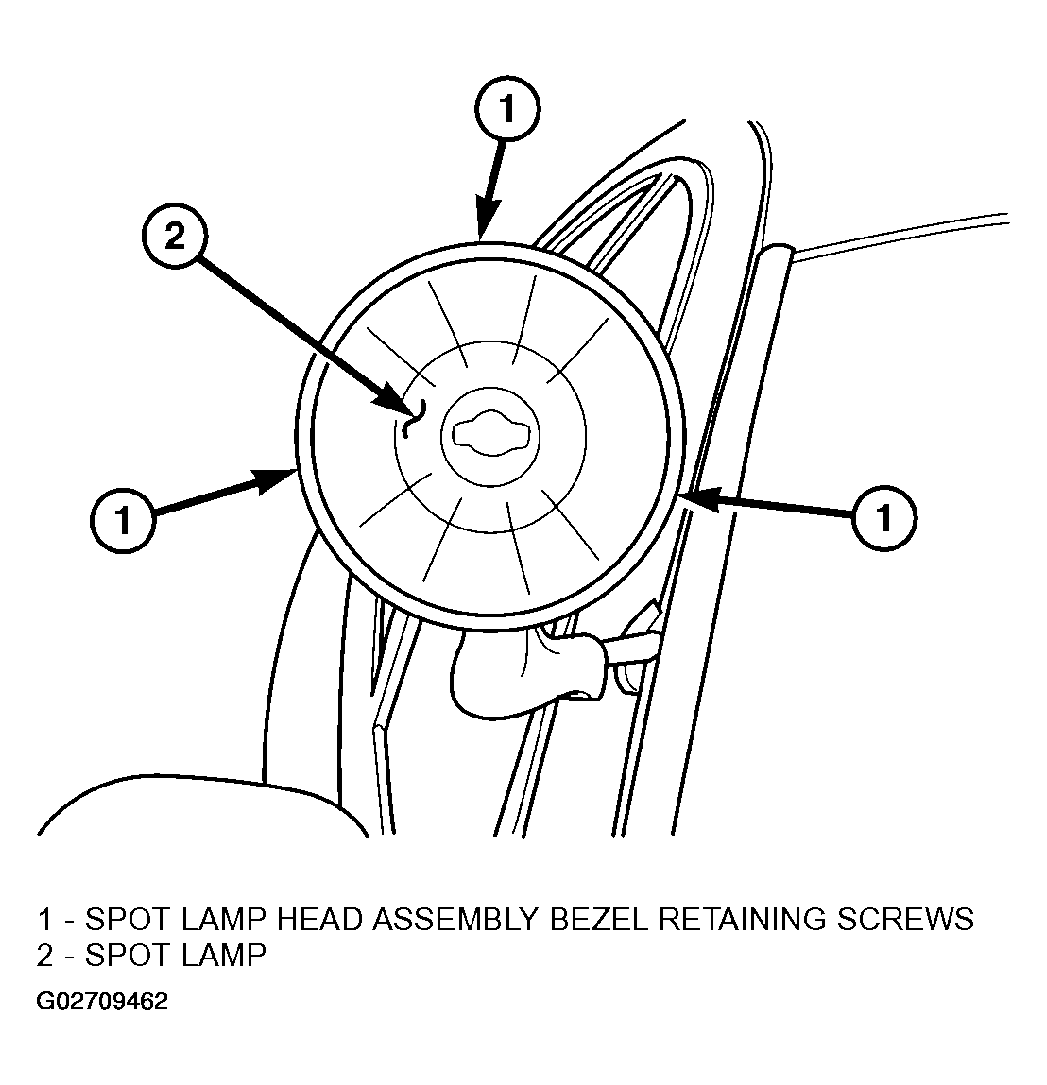

    Fig 1: Removing Screws Retaining Bezel To Spot Lamp Head Assembly
    G02709462Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the bezel from the spot lamp head assembly.
  6. Tilt the sealed beam away from the spot lamp head assembly.
  7. Disconnect the electrical connector to the spot lamp head assembly.
  8. Remove the bulb from the lamp housing by moving the hold downs.
  9. Remove bulb from lamp.
