Storage Bin - 6 Passenger Vehicles: Removal

  1. Remove one screw and one push pin to the lower instrument panel (Fig 1).

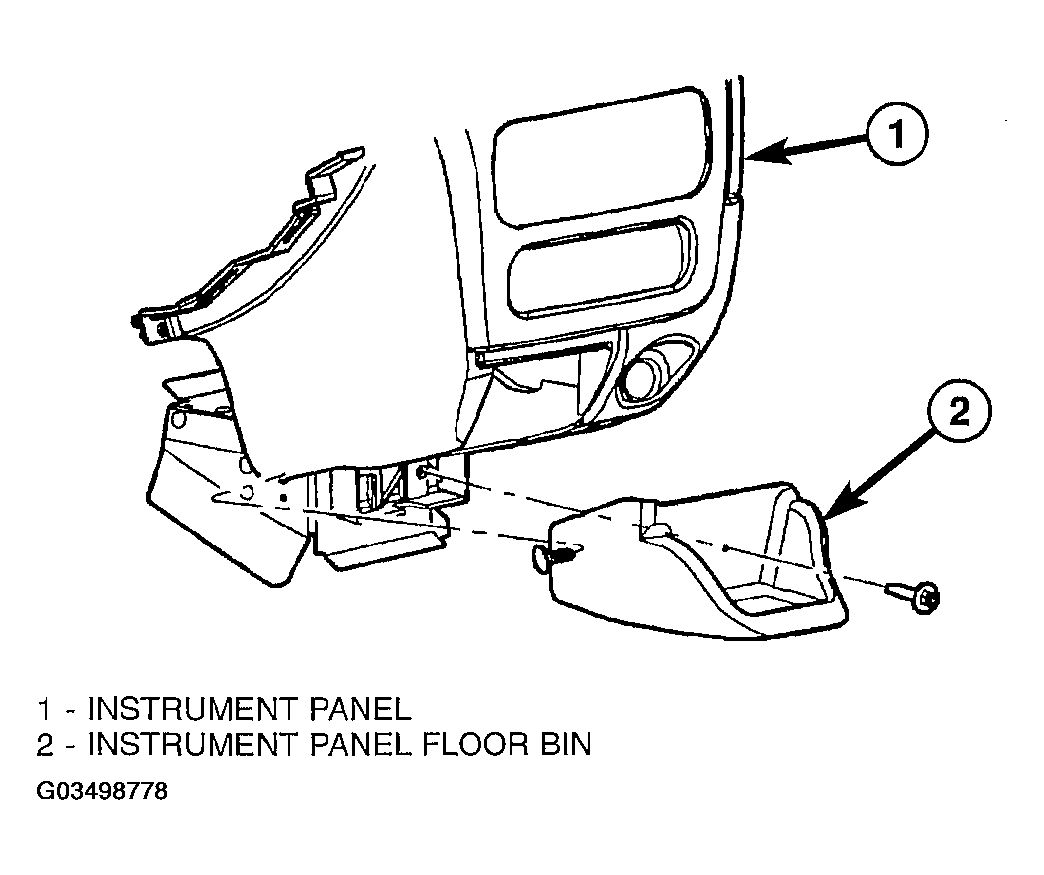

    Fig 1: Center Floor Bin
    G03498778Courtesy of DAIMLERCHRYSLER CORP.
  2. Pull rearward and remove the floor bin.
