Steering Column Cover Reinforcement: Installation

  1. Place steering column cover reinforcement in position.
  2. Connect diagnostic connector to the steering column cover reinforcement.

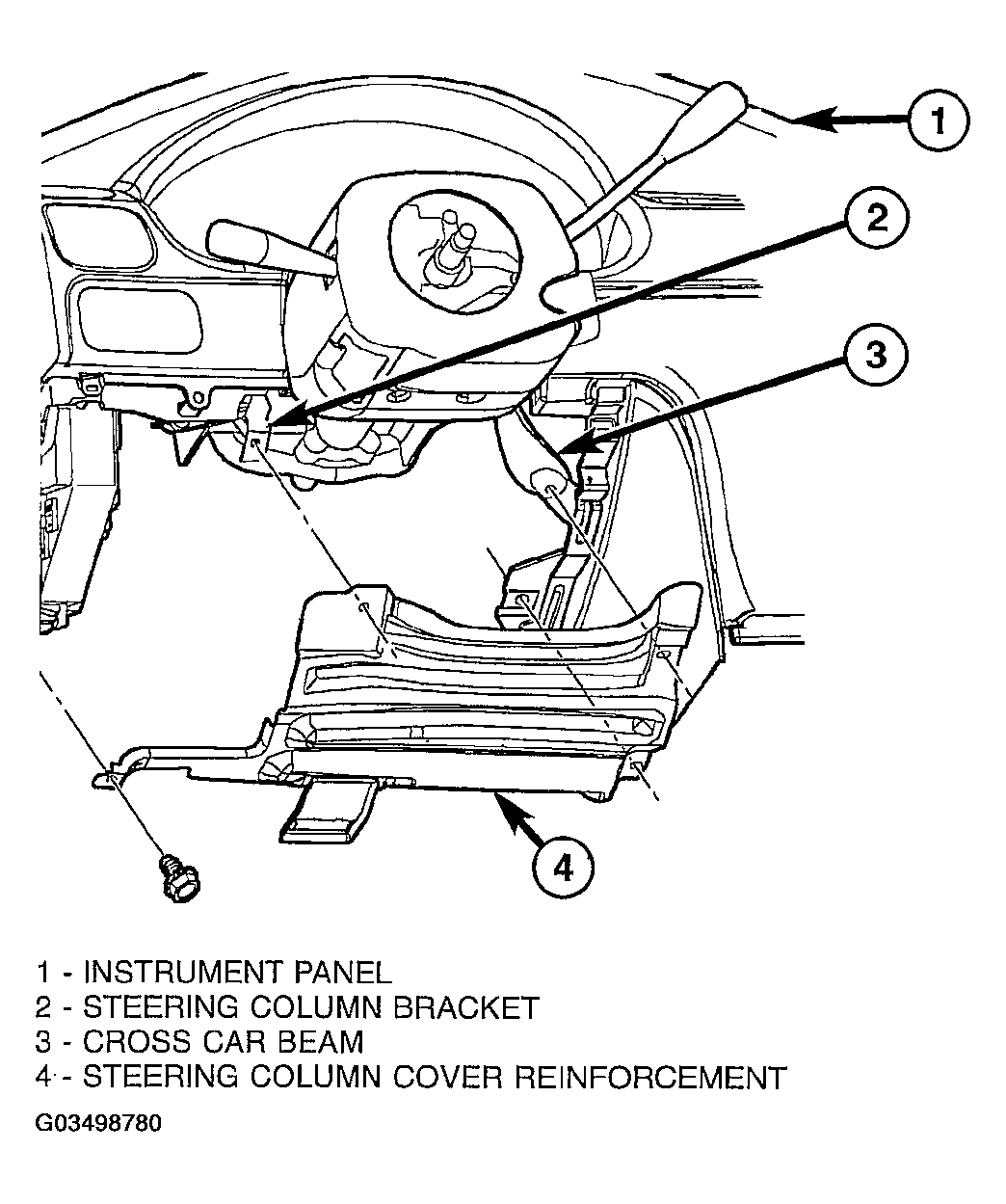

  3. Install the four bolts attaching steering column cover reinforcement (Figure).
  4. Install steering column cover (Refer to STEERING COLUMN COVER ).
