Instrument Panel Top Cover: Removal

  1. Using a trim stick (special tool #C-4755) or equivalent, pry out the left and right A-pillar moldings, slide rearward and remove.

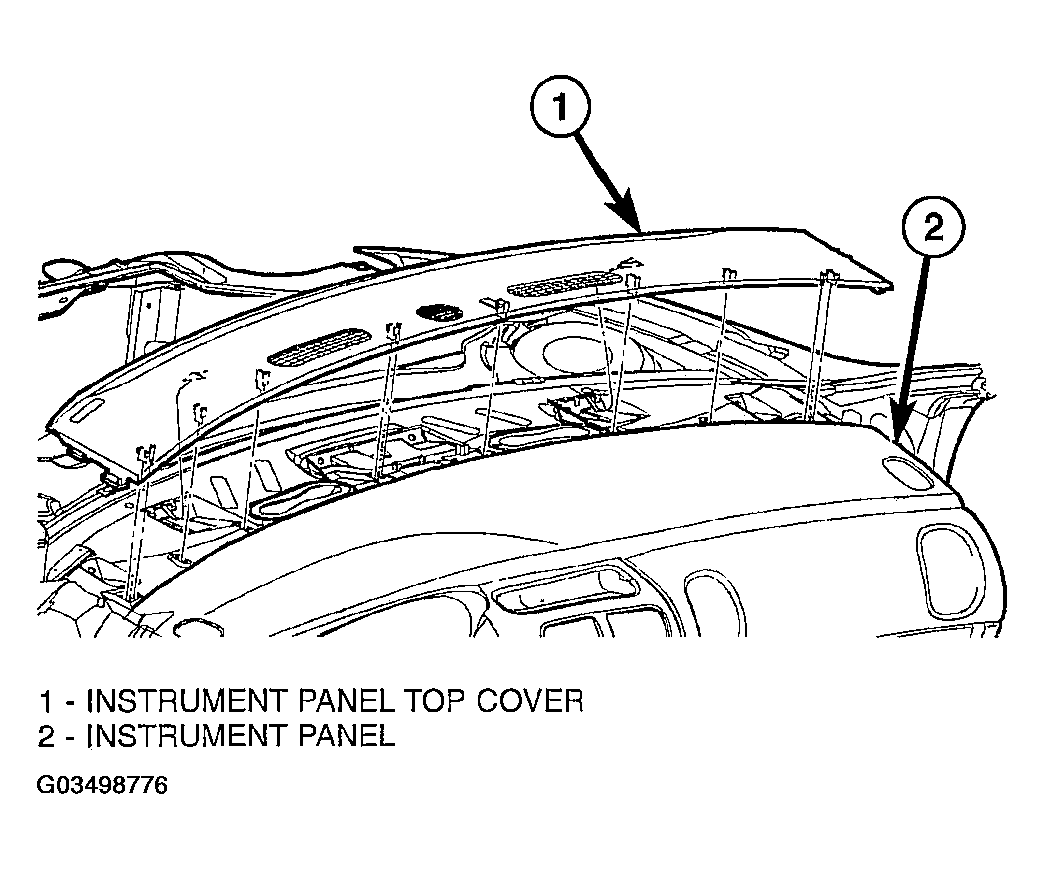

    Fig 1: Instrument Panel Top Cover
    G03498776Courtesy of DAIMLERCHRYSLER CORP.
  2. Using a trim stick or equivalent, slip each end of the instrument panel top cover up to disengaging clips.
  3. Lift rear edge of the top cover using a trim stick along the rear edge of the instrument panel top cover.
  4. Slide the instrument panel top cover rearward to disengaging the eight clips.
  5. Remove the instrument panel top cover from vehicle.
