Park/Turn Signal Lamp: Removal: 300M

  1. Open Hood, disconnect and isolate the battery negative cable.
  2. Reach under the fascia and remove the socket from the lamp housing (Fig 1 ).

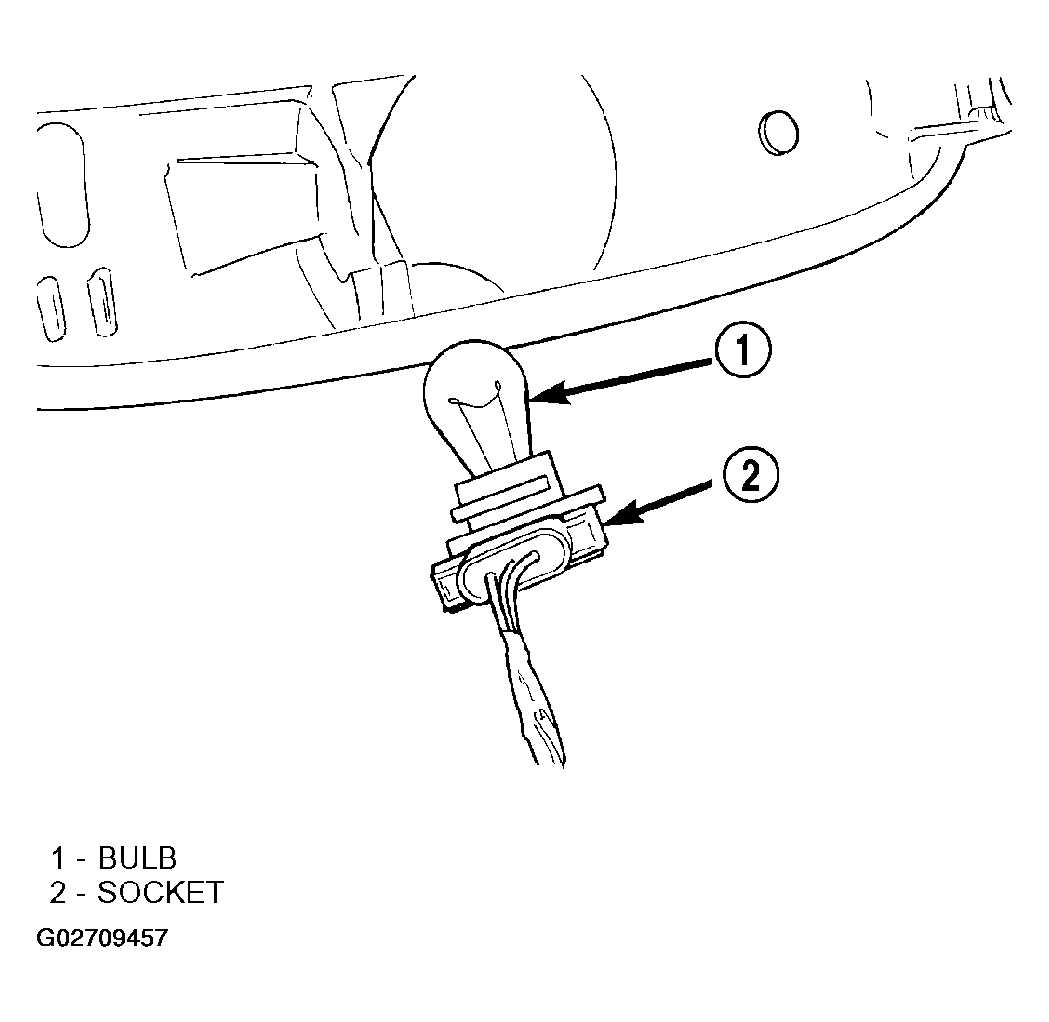

    Fig 1: Identifying Bulb - 300M
    G02709457Courtesy of DAIMLERCHRYSLER CORP.
  3. Rotate and pull socket from lamp housing.
  4. Pull bulb from socket.
