Specifications Exterior Lamps
CAUTION:

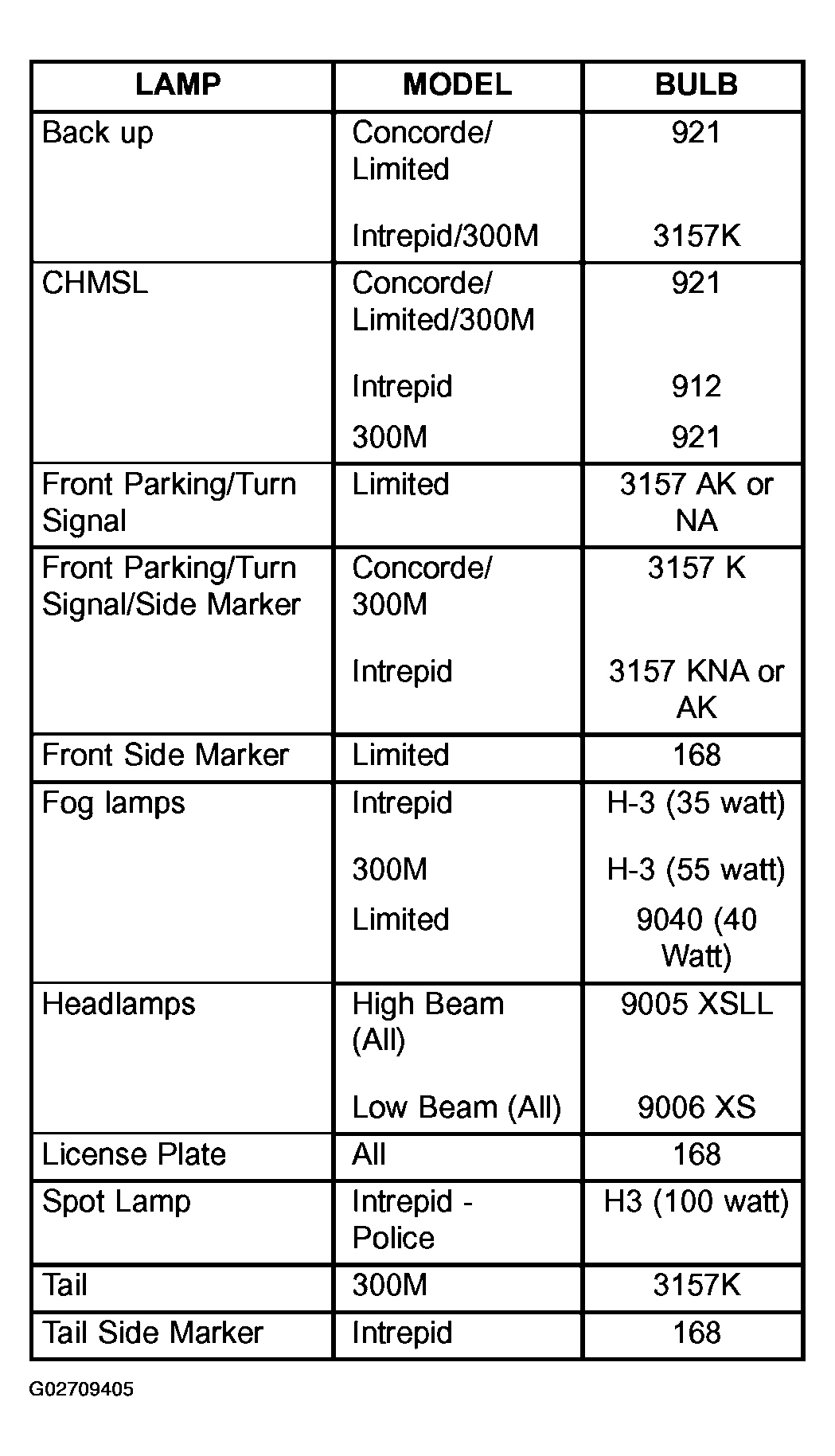

Do not use bulbs other than those listed in the Bulb Application Tables (Fig 1
or Fig 2
). Damage to lamp can result.
Do not touch halogen bulbs with fingers or other oily surfaces. Bulb life will be reduced.
BULB APPLICATION
| LAMP | BULB |
|---|---|
| Back-up | P27/7W |
| CHMSL | W16W |
| Front Fog | H3 (55W) |
| Front Position | W5W |
| Front Turn Signal | P27/7W |
| Headlamps (High Beam) | 9005 (HB3) |
| Headlamps (Low Beam) | 9006 (HB4) |
| License Plate | W5W |
| Rear Fog | P27/7W |
| Rear Tail/Stop | P27/7W |
| Rear Turn Signal | P27/7W |
| Side Repeater | W5W |
| Underhood | W5W |
| Underhood Retractable | 105 |
