Igniter/Lamp Assembly
- Remove headlamp unit (Refer to REMOVAL
).
- Disconnect the igniter assembly connector from the ballast module (Figure
).

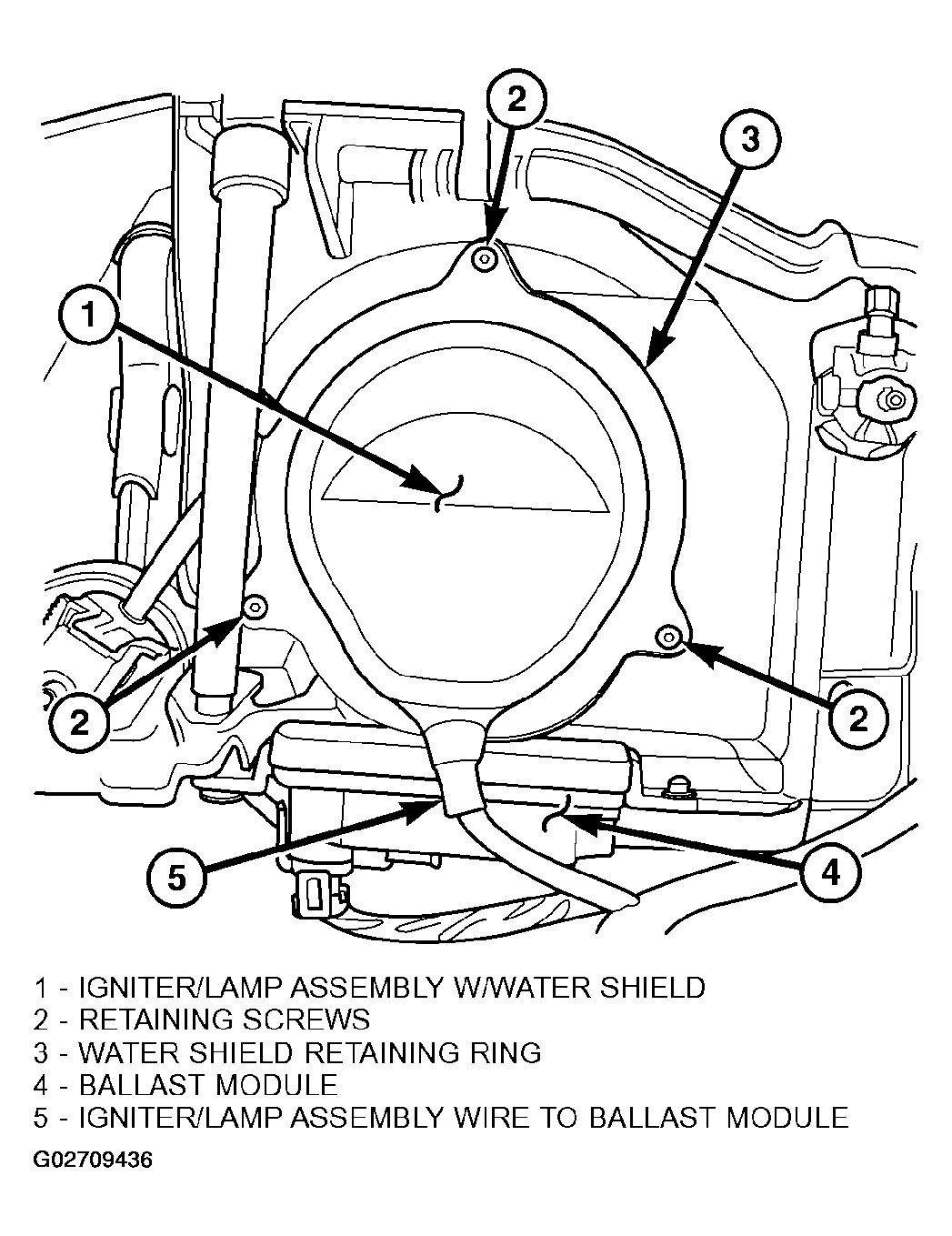

- Remove three screws to the rubber shield retaining ring (Fig 1
).
- Pull up on rubber water shield and pull back over igniter wire (Fig 1
).
- Release the spring retainer to the igniter/lamp assembly.
- Pull assembly straight out of headlamp unit. The igniter and lamp are an assembly and will be replaced as such. The water shield will also come with a new assembly.
