Lifter / Lash Adjuster: Testing and Inspection

LASH ADJUSTER (TAPPET) NOISE DIAGNOSIS
Proper noise diagnosis is essential in locating the source of a NVH complaint. Locating a lash adjuster (tappet) type noise can sometimes be difficult. As a result, an initial misdiagnosis may occur.

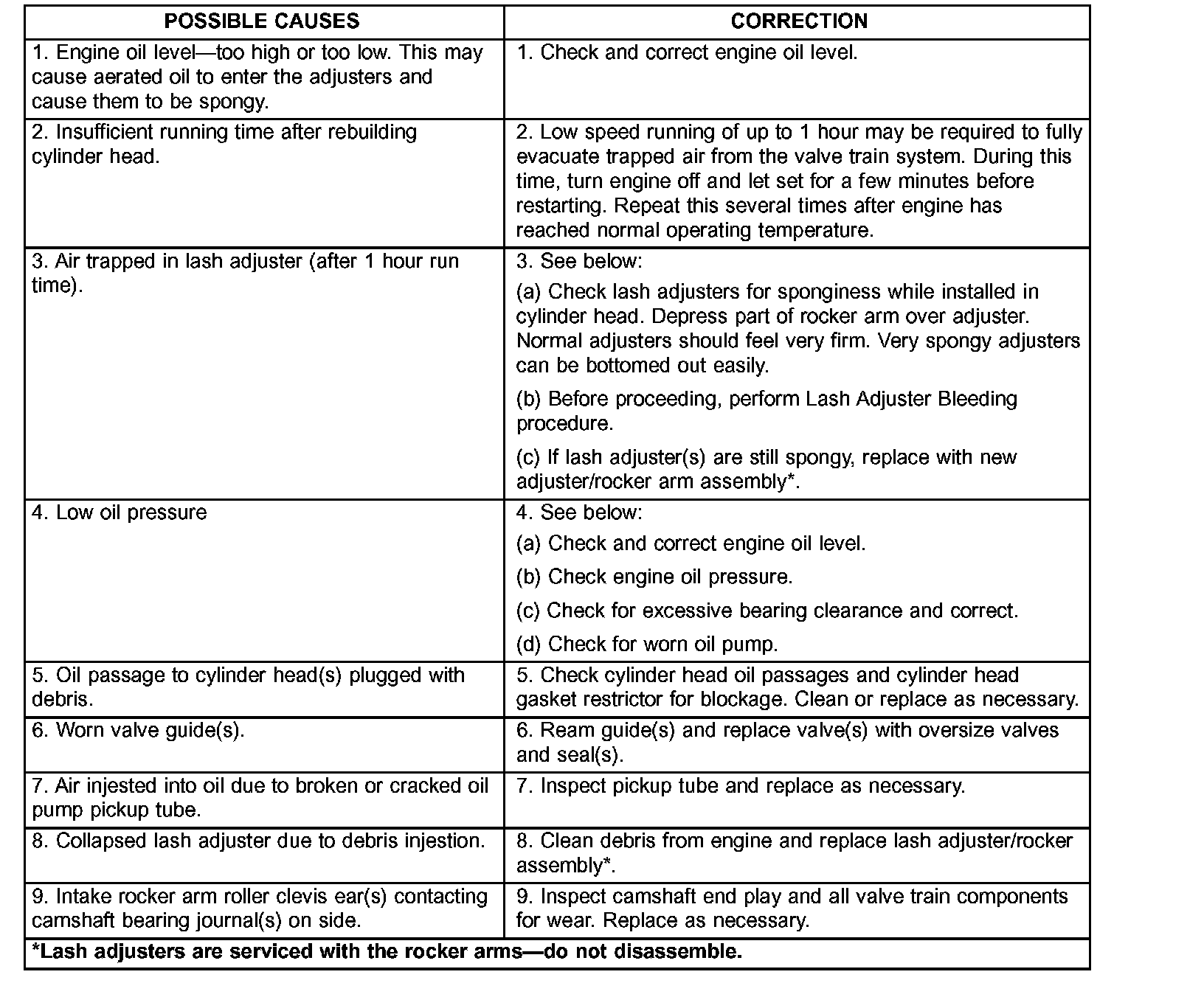

LASH ADJUSTER (TAPPET) NOISE CHART
