Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-50 (Front Lighting) >> Sheet 8W-50-2

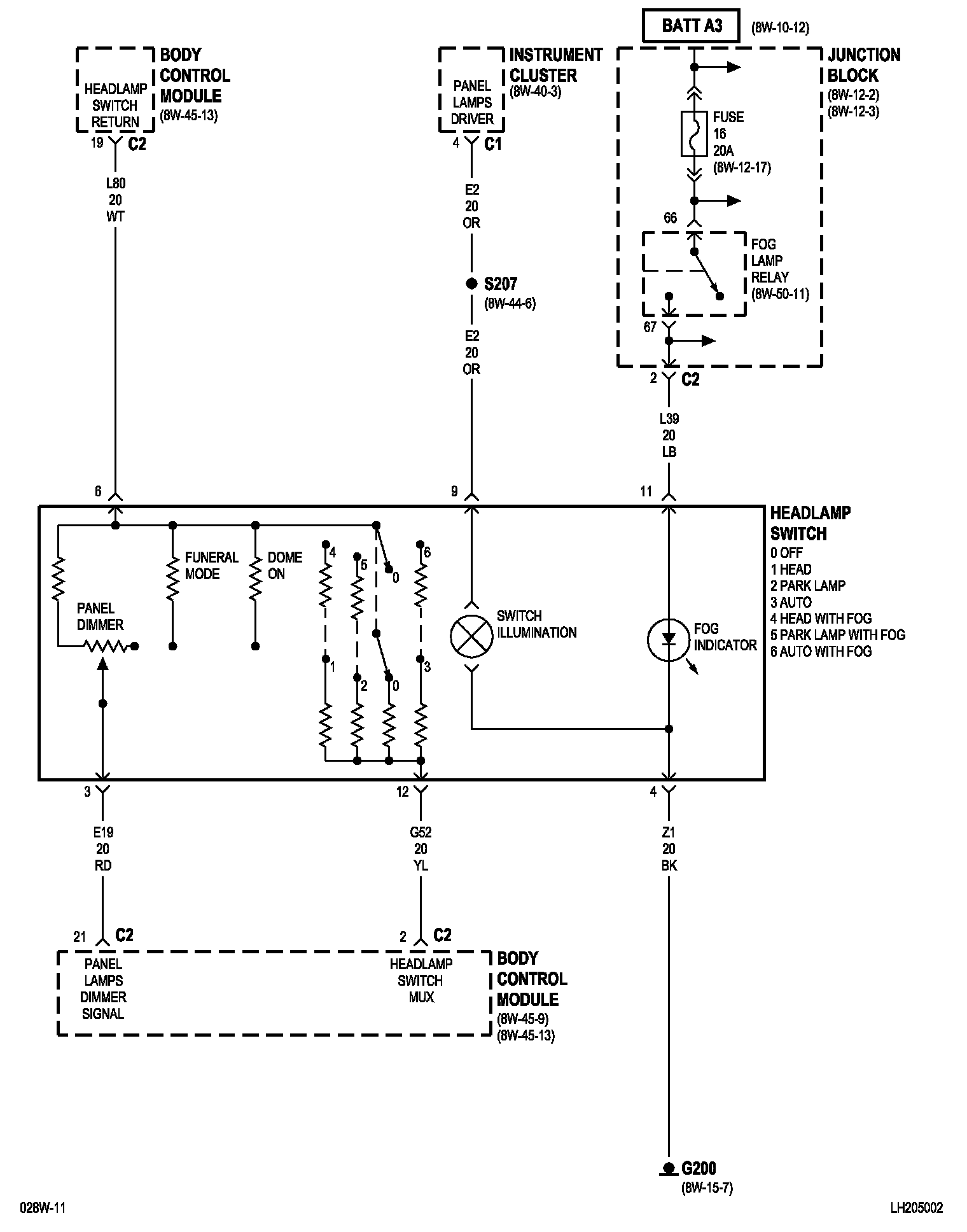

Sheet 8W-50-2

8w-50-2 (Except Built-Up-Export):
