Clutch Assembly: Installation

  1. Install clutch coil. Ensure projection on back of clutch coil is aligned with pin hole in compressor body. Install snap ring so that tapered surface is facing outward.
  2. Install rotor/pulley assembly and snap ring. Align match mark of clutch plate with match mark of compressor shaft spline and install clutch plate. Using spanner and pins, install shaft nut.
  3. Using a feeler gauge, check air gap between clutch plate and rotor assembly at more than one place. On 2.4L engine, air gap should be 0.012-0.020" (0.30-0.51 mm). On 3.0L engine, air gap should be 0.016-0.024" (0.41-0.61 mm). If air gap is not within specification, add or remove shims as necessary. Install pulley assembly.

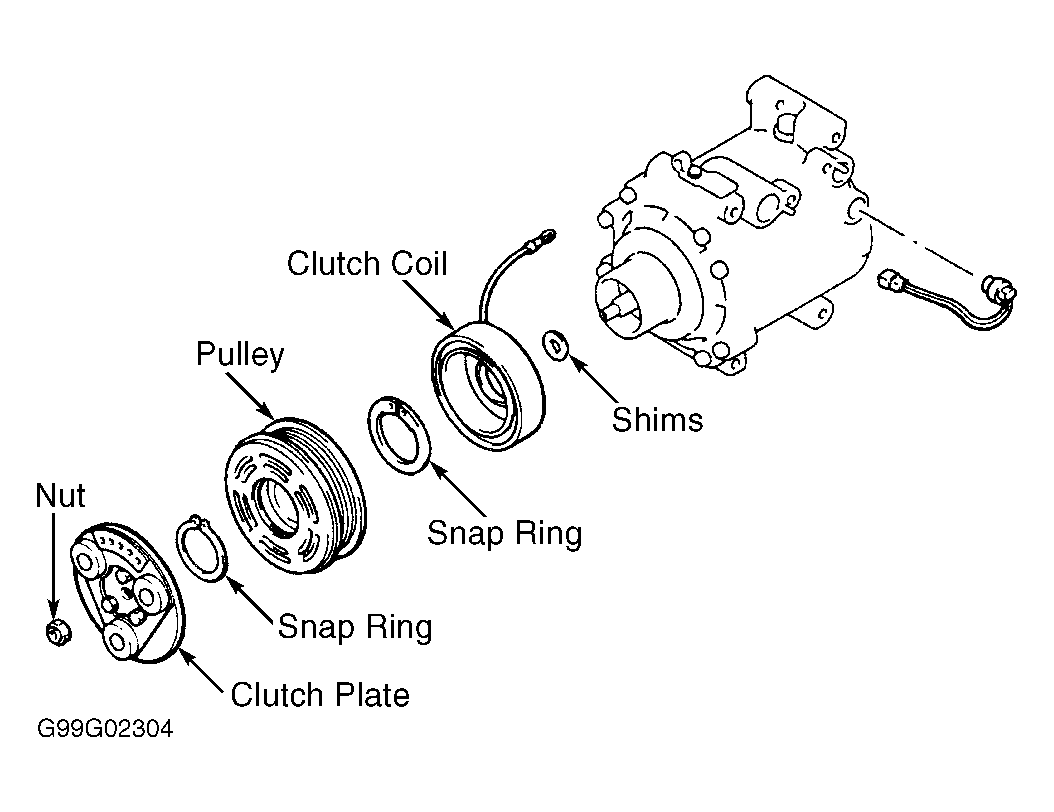

Fig 1: Compressor Components (Sanden MSC90-C Scroll Shown; Ford SC90V & SC115 Are Similar)
G99G02304Courtesy of CHRYSLER CORP.
