Component Locations

WARNING: This page is about a different variant/trim than selected.

Refer to illustration for restraint system component locations. See Fig 1.

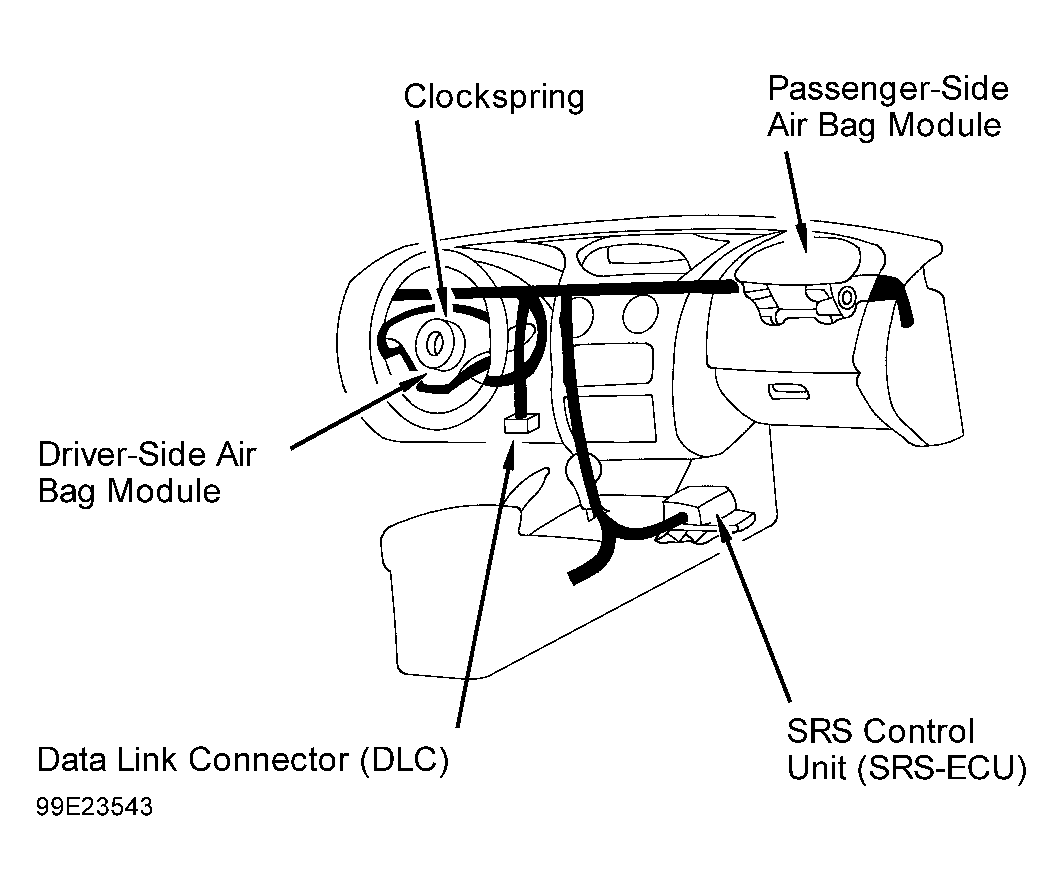

Fig 1: Locating Restraint System Components
G99E23543Courtesy of DAIMLERCHRYSLER CORP.
