Clutch Master Cylinder: Reassembly

WARNING: This page is about a different variant/trim than selected.

Ensure components are clean and free of defects. To reassemble, reverse disassembly procedure using NEW piston repair kit. Refer to illustration for exploded view of clutch master cylinder. See Fig 1 . Lubricate components with DOT 3 or DOT 4 brake fluid during reassembly. Adjust push rod assembly to 4.80" (121 mm) before installing. See Fig 2 .

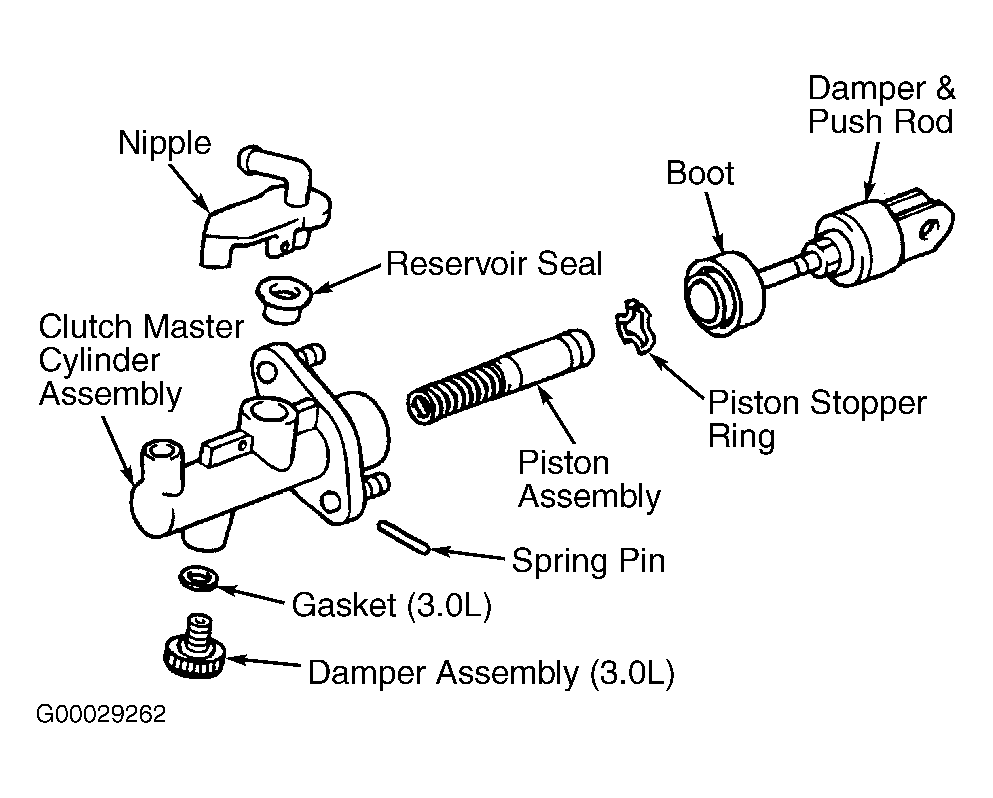

Fig 1: Exploded View Of Clutch Master Cylinder

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Adjusting Push Rod Assembly

Courtesy of CHRYSLER CORP.
