Radiator Fan: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The fan motor, fan, and the shroud are serviced as an assembly.
WARNING: DO NOT OPEN THE RADIATOR DRAINCOCK WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
  1. Disconnect negative cable from battery.
  2. Remove battery and battery tray attaching screws. Move tray rearward for radiator fan clearance.
  3. Drain cooling system below upper radiator hose level.
  4. Remove grill.
  5. Remove upper radiator support crossmember.
  6. Remove upper radiator hose from radiator.
  7. Hoist vehicle.
  8. Disconnect radiator fan electrical connector.
  9. Remove the two lower and left side radiator fan screws (3). See Fig 1.

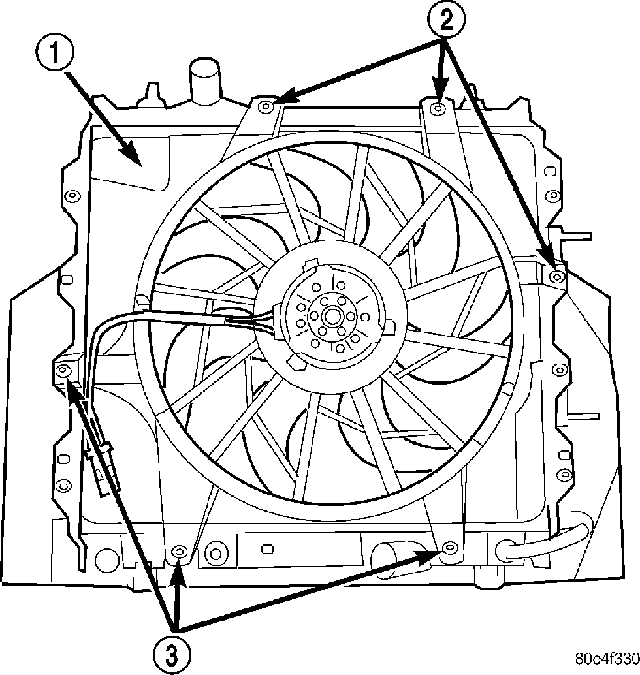

    Fig 1: Locating Radiator Fan Screws
    G00494239Courtesy of CHRYSLER LLC
  10. Lower vehicle and remove the remaining attaching screws (2). See Fig 1.
    11. CAUTION: Care should be taken not to damage the radiator cooling fins and tubes during fan removal.
  11. Remove radiator fan by lifting up from the engine compartment.
