Removal (Except PT Cruiser)

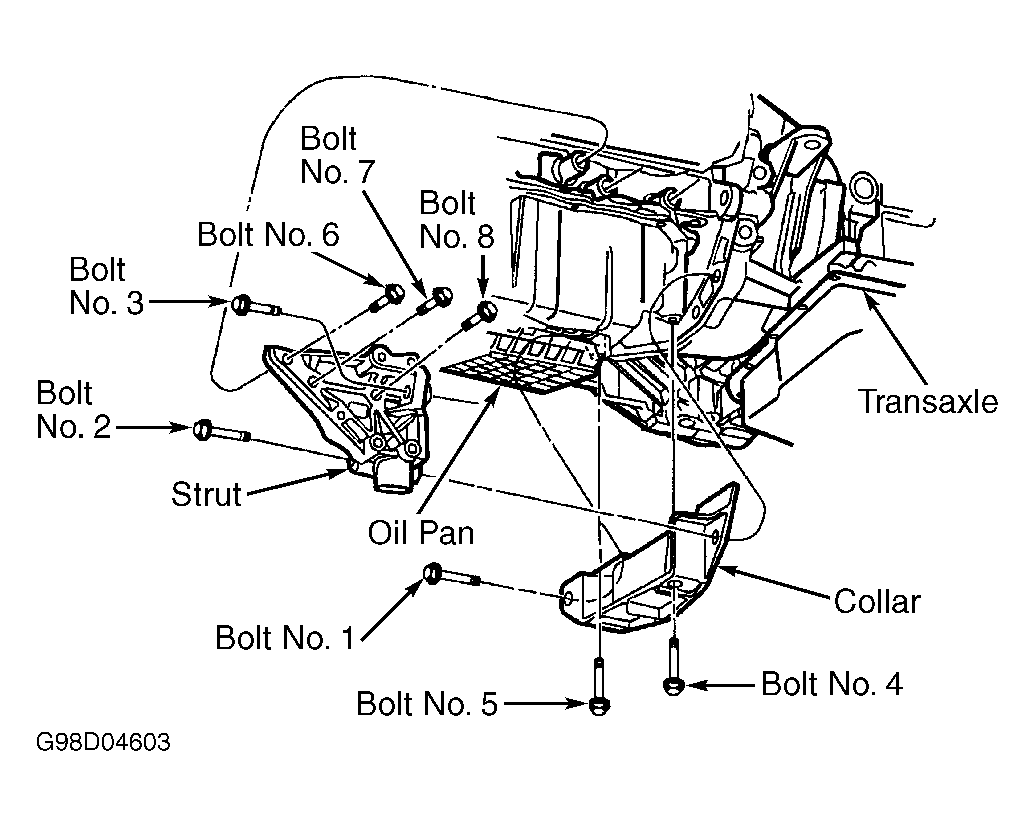

Drain engine oil. Where necessary, remove front engine torque bracket from bending strut and insulator mount. See Figure. Remove bolts from structural collar and bending strut. Remove bending strut and structural collar. Remove oil pan. Clean oil pan and engine gasket surfaces.
