Piston Rings

WARNING: This page is about a different variant/trim than selected.

Ensure ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS table under ENGINE SPECIFICATIONS. Position ring gaps in proper locations before installing pistons. See Fig 1. Install piston rings with manufacturer's ID marks facing up. See Fig 2.

Fig 1: Positioning Piston Ring Gaps

Courtesy of CHRYSLER CORP.

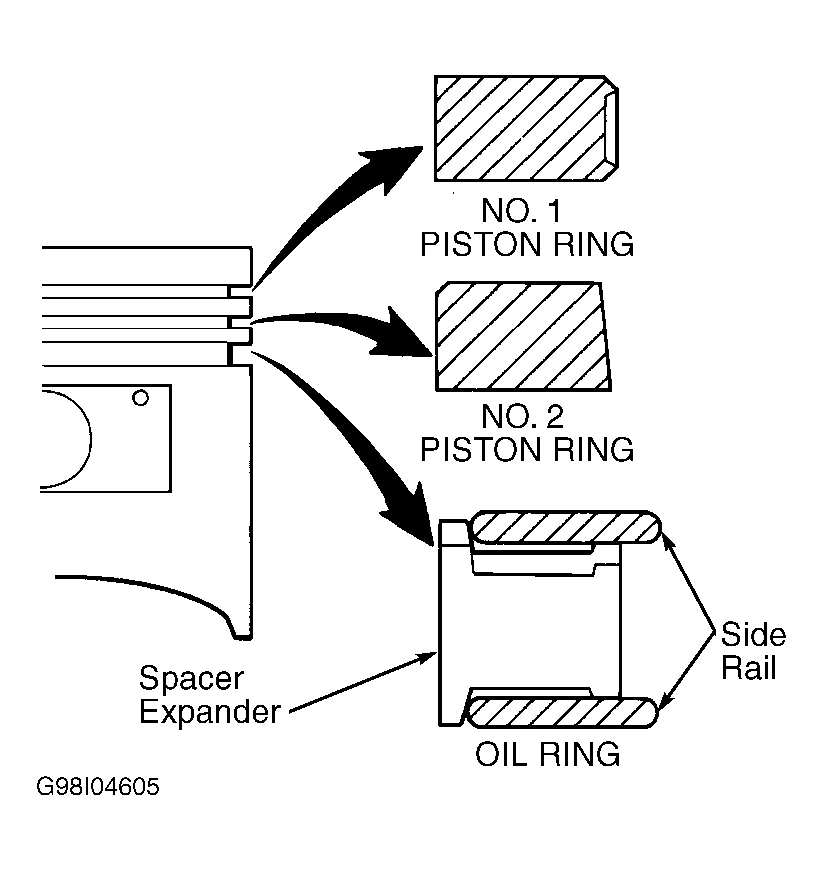

Fig 2: Identifying Piston Ring Installed Position

Courtesy of CHRYSLER CORP.
