Abs Braking Hydraulic Circuit, Solenoid Valve, And Shuttle Valve Function (Abs With Traction Control)

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The hydraulic diagram shows the vehicle in the ABS braking mode. The diagram shows one wheel is slipping because the driver is attempting to stop the vehicle at a faster rate than is allowed by the surface on which the tires are riding. See Fig 1.

The hydraulic shuttle valve closes upon brake application so that the pump/motor cannot siphon brake fluid from the master cylinder.
The normally open and normally closed valves modulate (build/decay) the brake hydraulic pressure as required.
The pump/motor is switched on so that the brake fluid from the low pressure accumulators is returned to the master cylinder circuits.
The brake fluid is routed to either the master cylinder or the wheel brake depending on the position of the normally open valve.

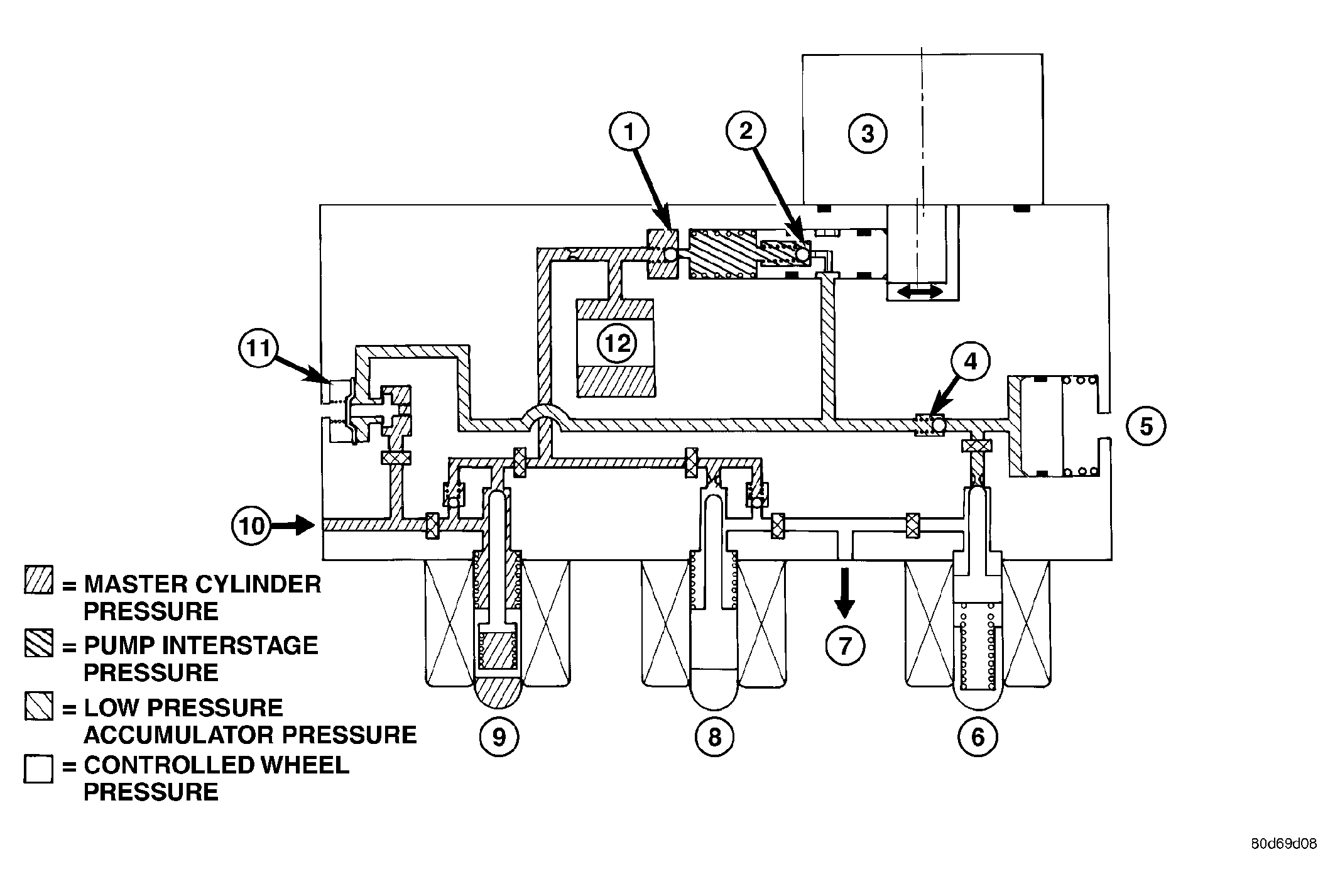

Fig 1: ABS With Traction Control - ABS Braking Hydraulic Circuit

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTLET VALVE

2 - PUMP PISTON

3 - PUMP MOTOR

4 - SUCTION VALVE

5 - LOW PRESSURE ACCUMULATOR

6 - NORMALLY CLOSED VALVE (MODULATING)

7 - TO RIGHT FRONT WHEEL

8 - NORMALLY OPEN VALVE (MODULATING)

9 - NORMALLY OPEN ASR VALVE (OFF)

10 - FROM MASTER CYLINDER

11 - HYDRAULIC SHUTTLE VALVE

12 - NOISE DAMPER CHAMBER
