Removal - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air cleaner box.
Remove the EGR tube clamp bolt at intake manifold.

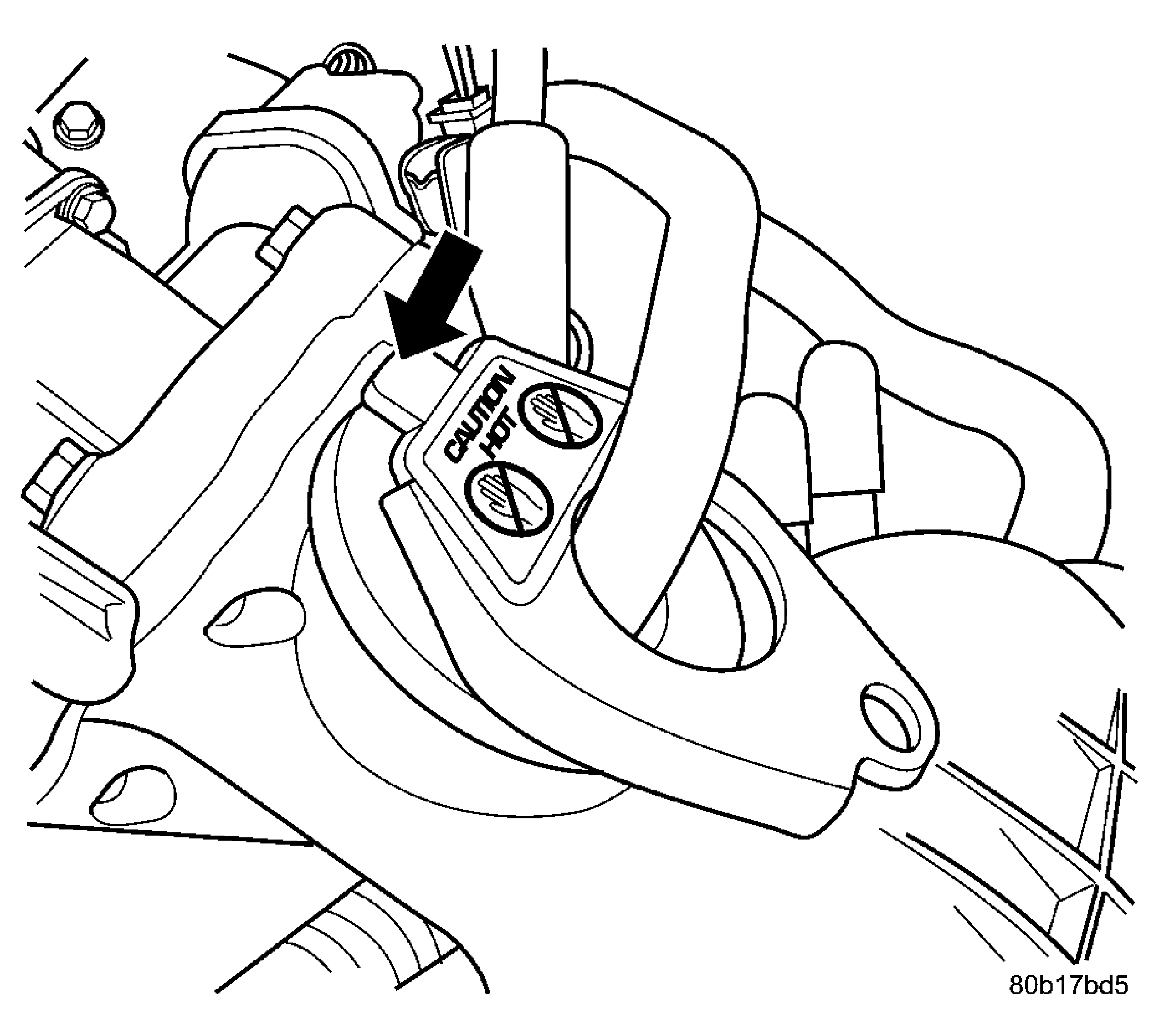

Fig 1: EGR Tube Clamp
Courtesy of DAIMLERCHRYSLER CORP.
Slide clamp out of the intake manifold slot. See Fig 1.
Remove the 2 bolts from EGR valve.
Remove the tube and gasket. See Fig 2.

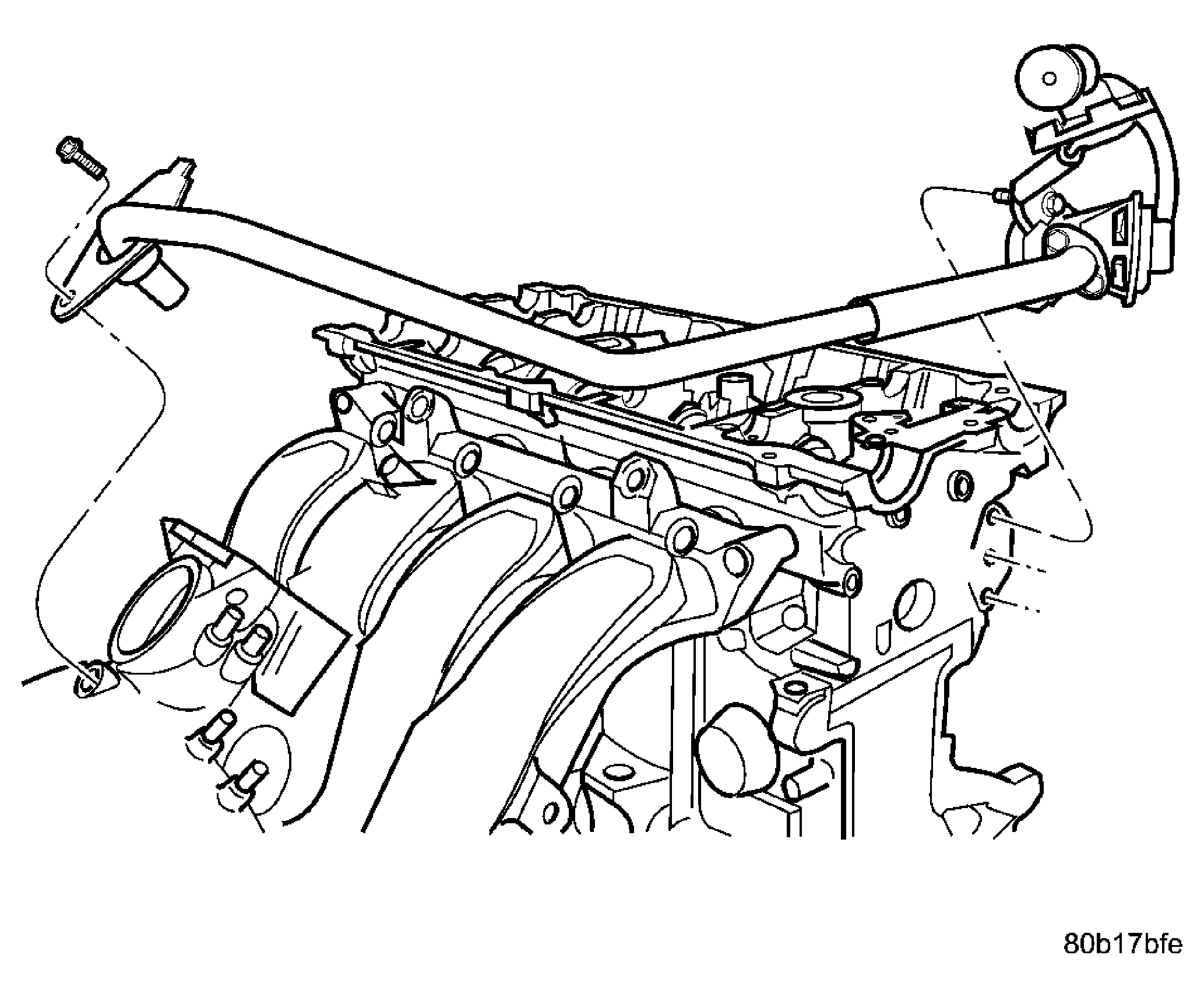

Fig 2: EGR Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove the rubber silicone seal from the intake manifold and inspect. See Fig 3. Replace seal if damaged.

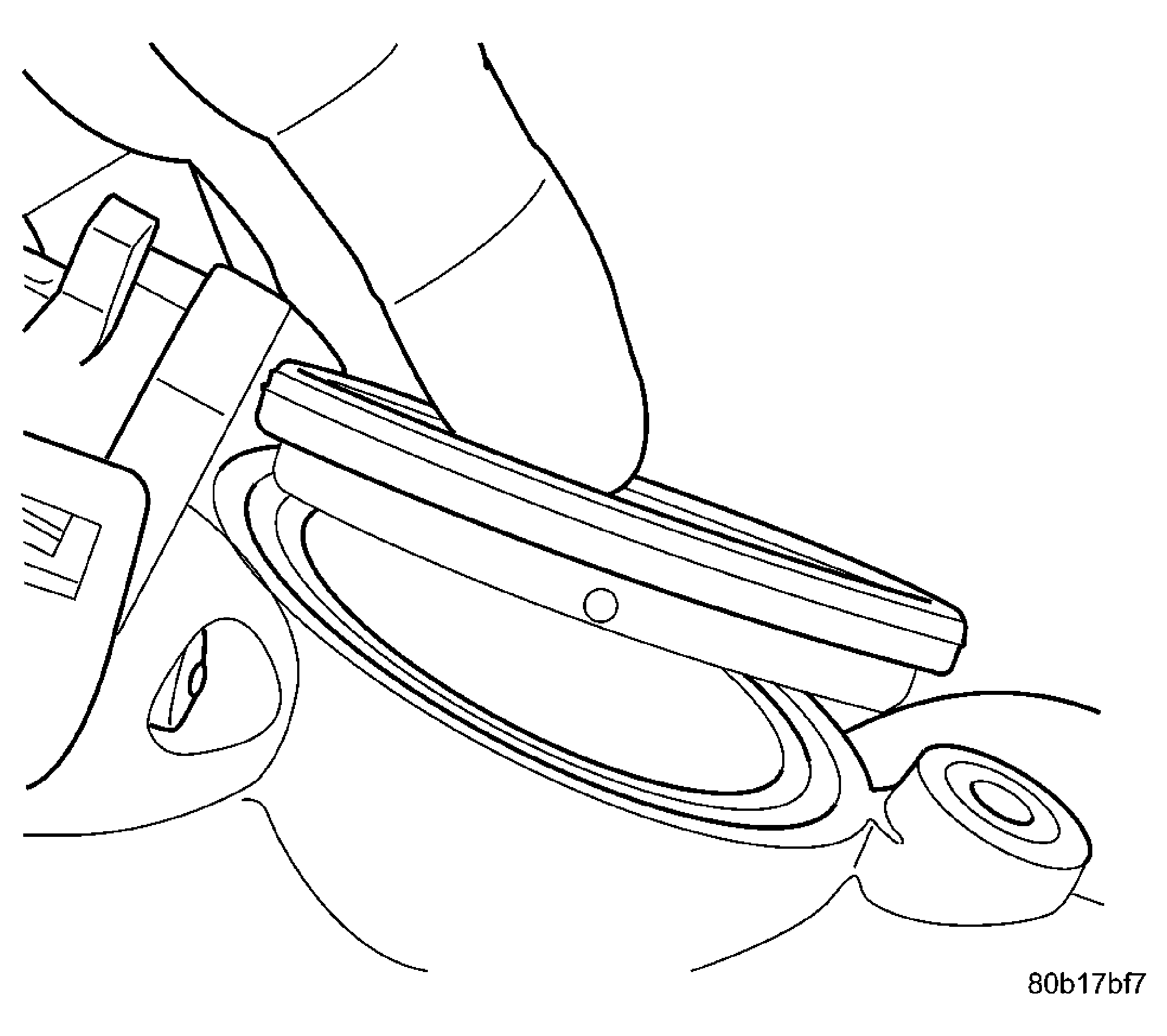

Fig 3: EGR Tube Gasket

Courtesy of DAIMLERCHRYSLER CORP.
