Vapor Canister: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

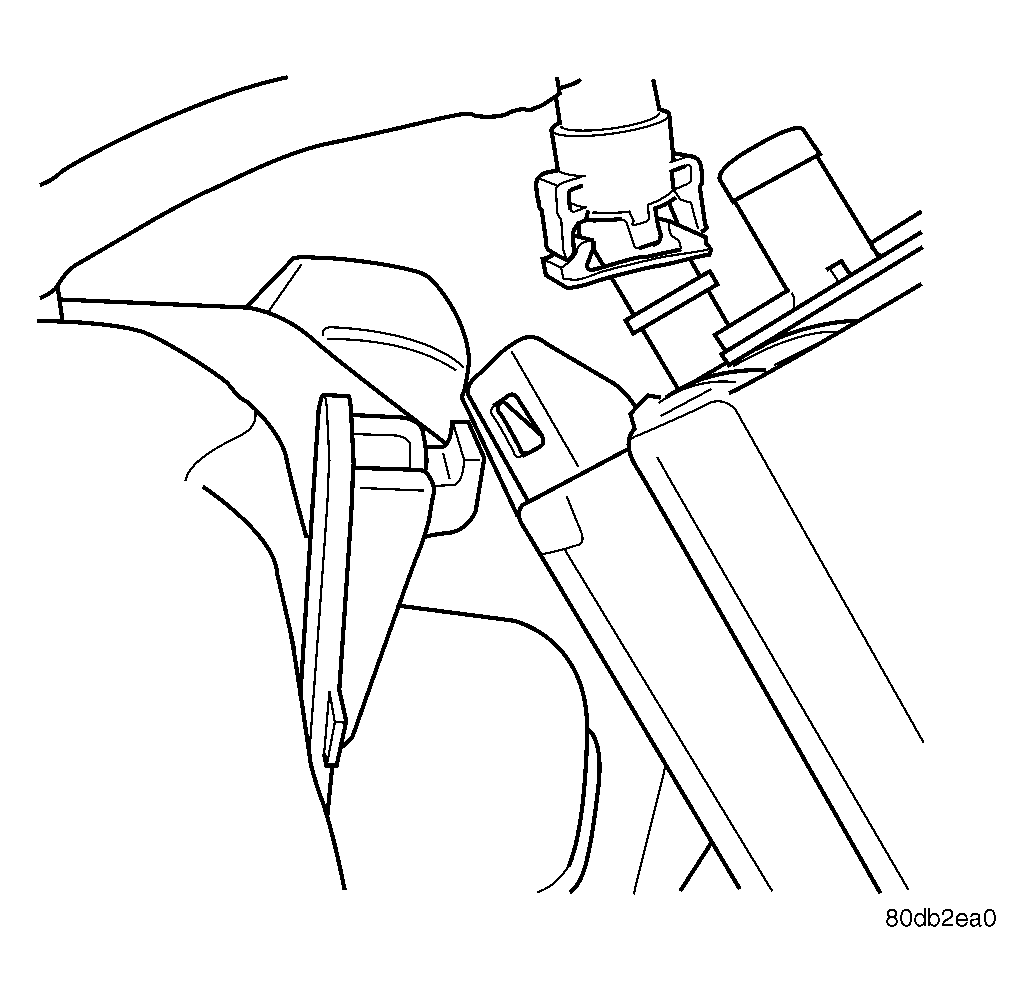

  1. Install the EVAP canister to the upper mounting bracket and. See Figure and Figure.

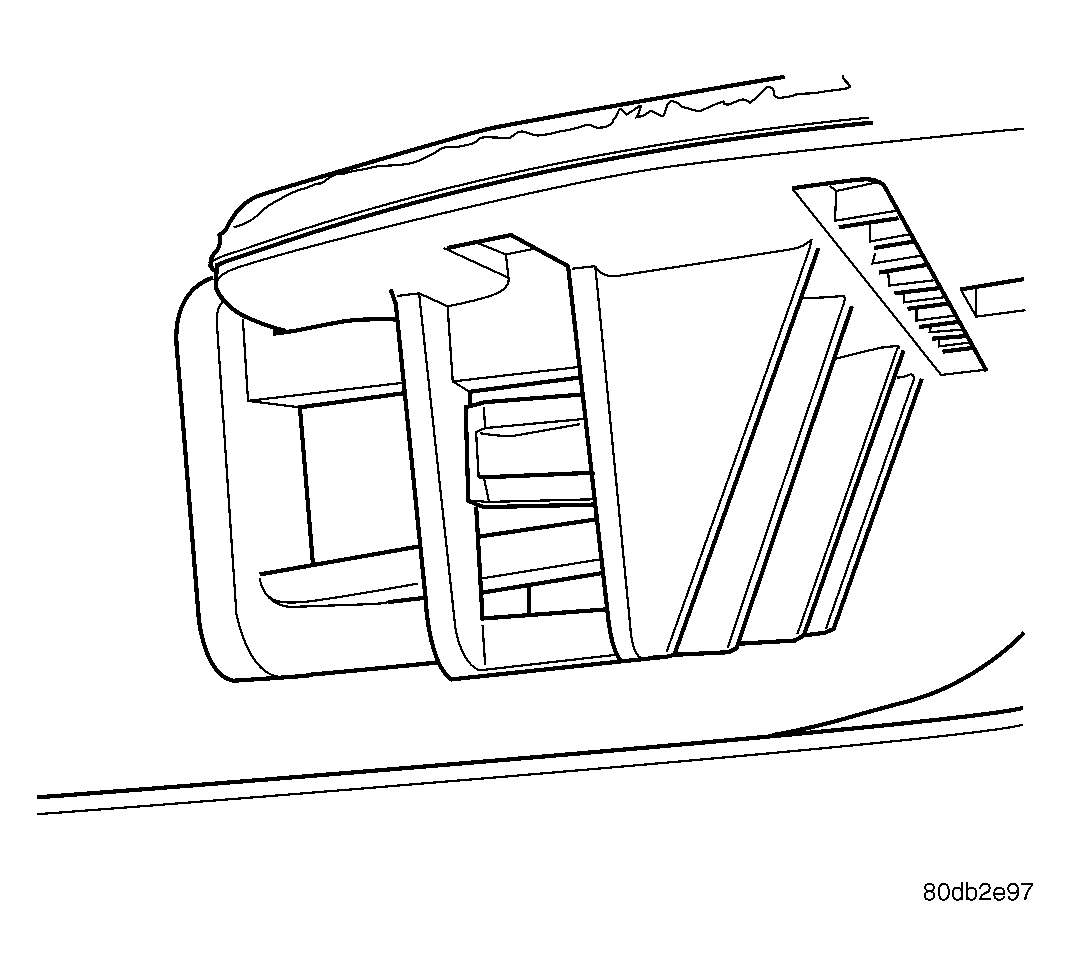

  2. Swing EVAP canister into the lower mounting and snap into place. See Figure.

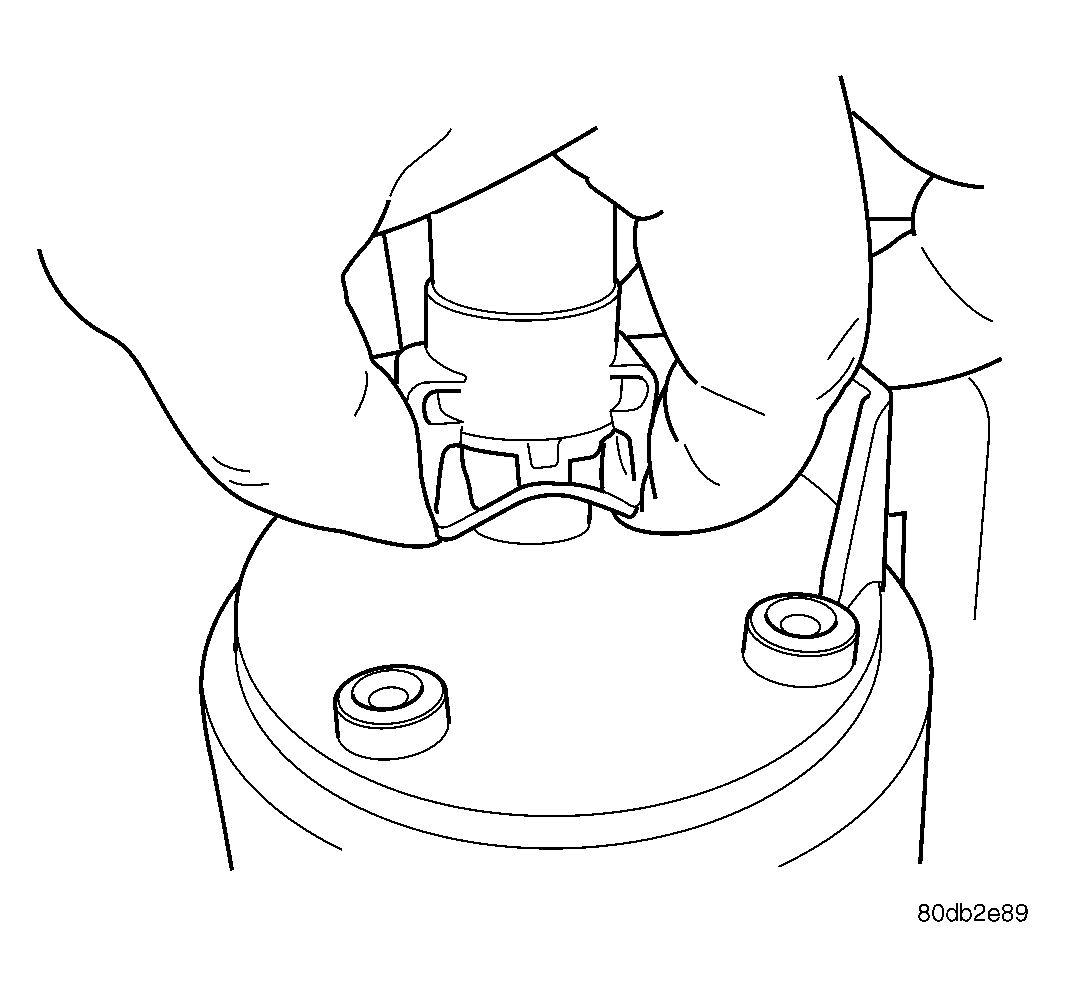

  3. Install the hoses to the top of the EVAP canister. See Figure.
  4. Connect the electrical connector.
  5. Install the fuel tank, refer to INSTALLATION .
  6. Connect the negative battery cable.
