Natural Vac Leak Detection ASSY.: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

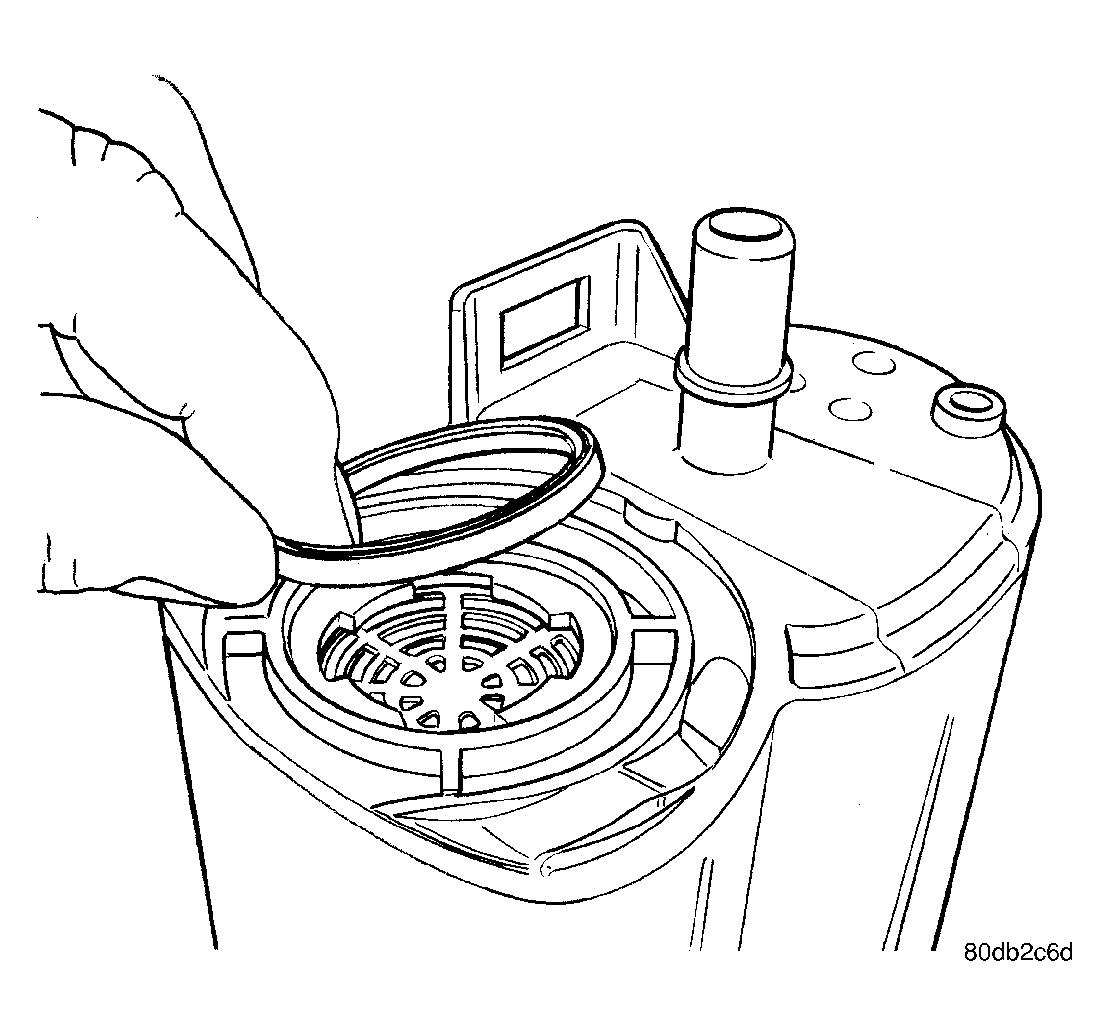

  1. Install O-ring to EVAP canister. See Figure.

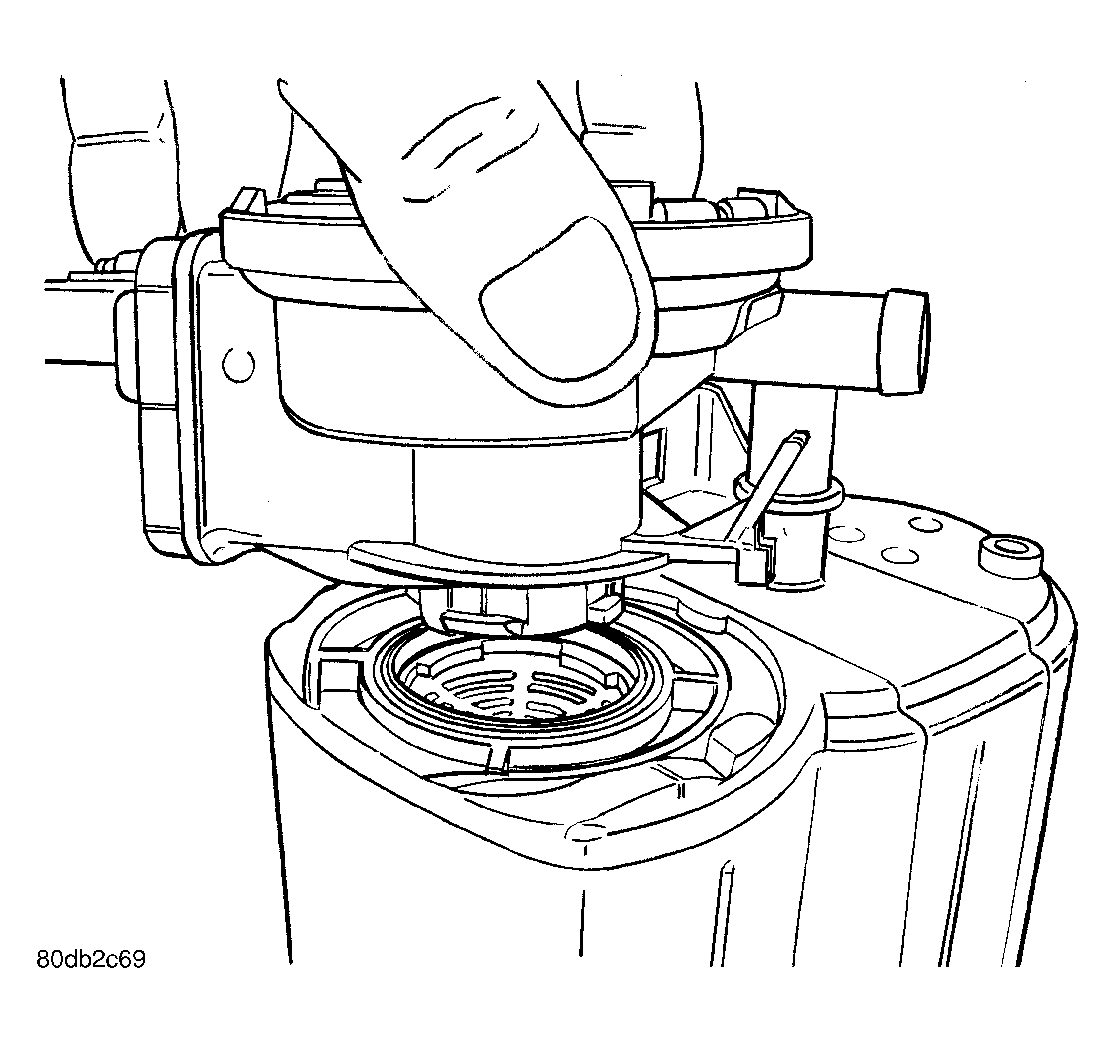

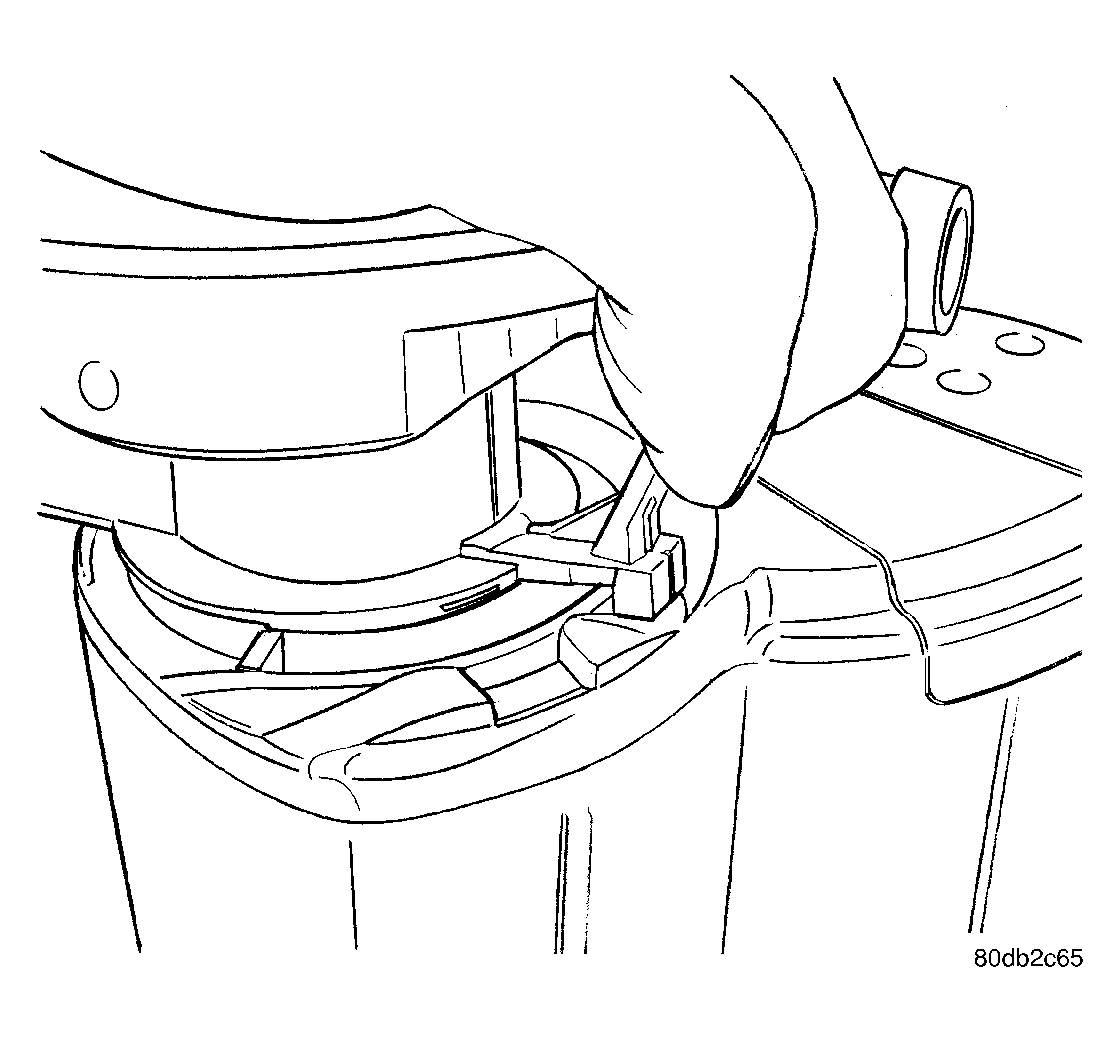

  2. Install NVLD assembly and twist the assembly clockwise to lock assembly in the EVAP canister. See Figure and Figure.
  3. Connect the hoses to the NVLD assembly.
  4. Connect the electrical connector to the NVLD assembly.
  5. Install fuel tank, refer to INSTALLATION .
  6. Connect the negative battery cable.
