EVAP/Purge Solenoid: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

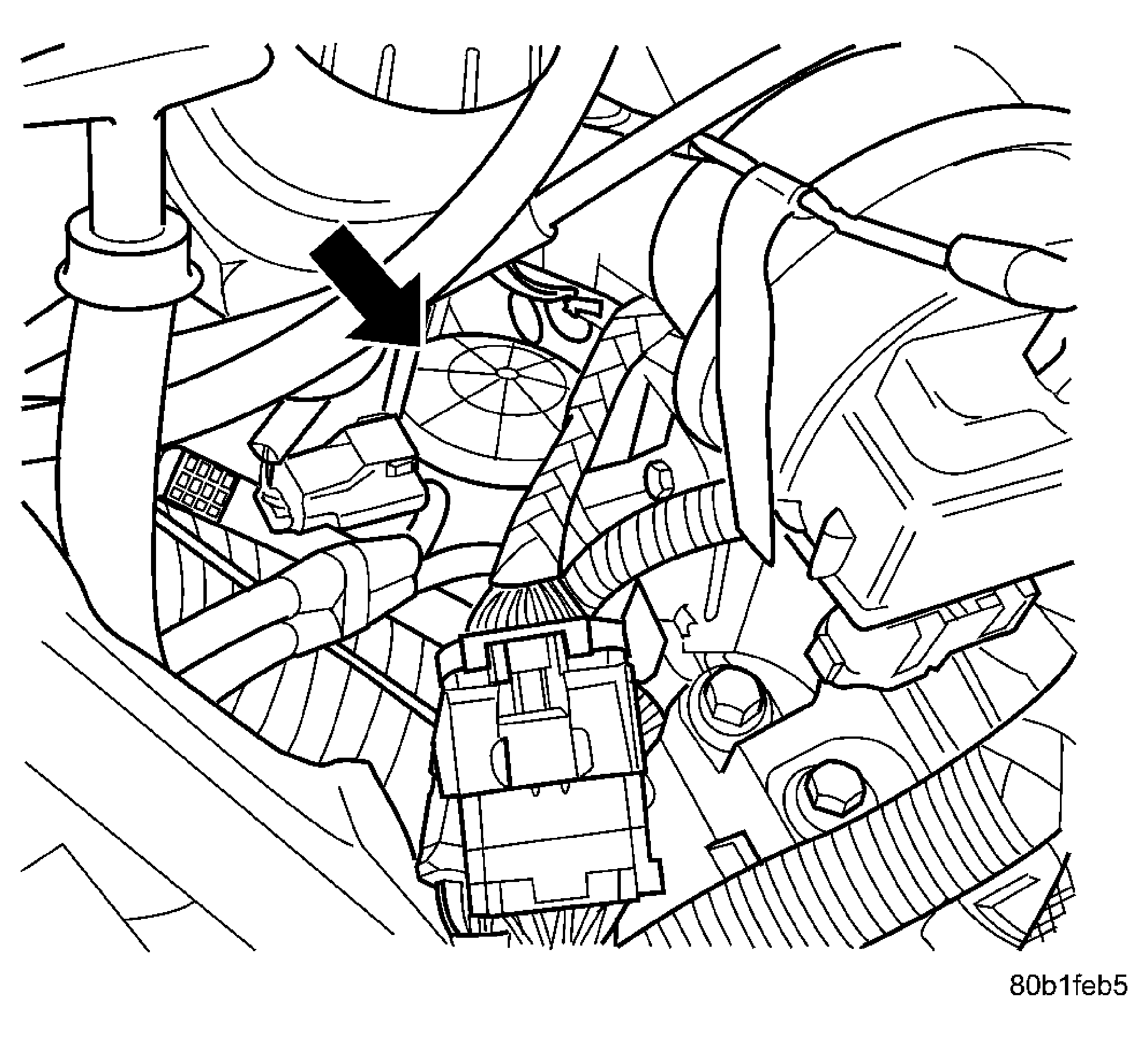

  1. Install purge solenoid onto bracket. See Figure.
  2. Connect the vacuum hoses.
  3. Connect the electrical connector.
  4. Install the air cleaner box.
  5. Connect the negative battery cable.
