Valve Body: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If valve body assembly is being replaced or reconditioned, it is necessary to perform the PCM Quick Learn Procedure. (Refer to STANDARD PROCEDURE )

Install underdrive and overdrive accumulators. See Fig 1.

Fig 1: Underdrive and Overdrive Accumulators
Courtesy of DAIMLERCHRYSLER CORP.

1 - OVERDRIVE PISTON AND SPRING

2 - UNDERDRIVE PISTON AND SPRING
Install valve body assembly to transaxle. See Fig 2. Install and torque valve body-to-transaxle case bolts to 12 N.m (105 in. lbs.). See Fig 3.

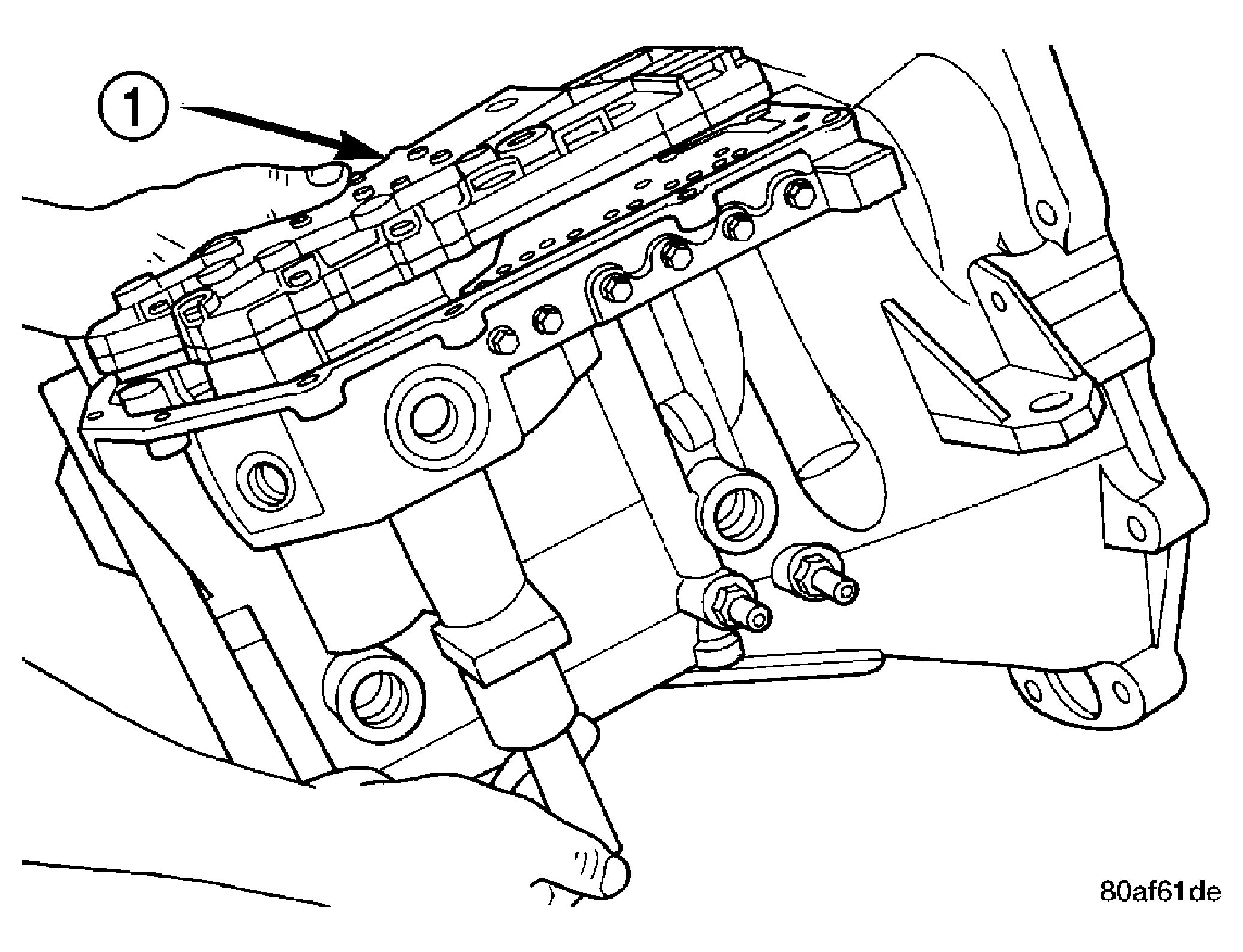

Fig 2: Valve Body Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - VALVE BODY

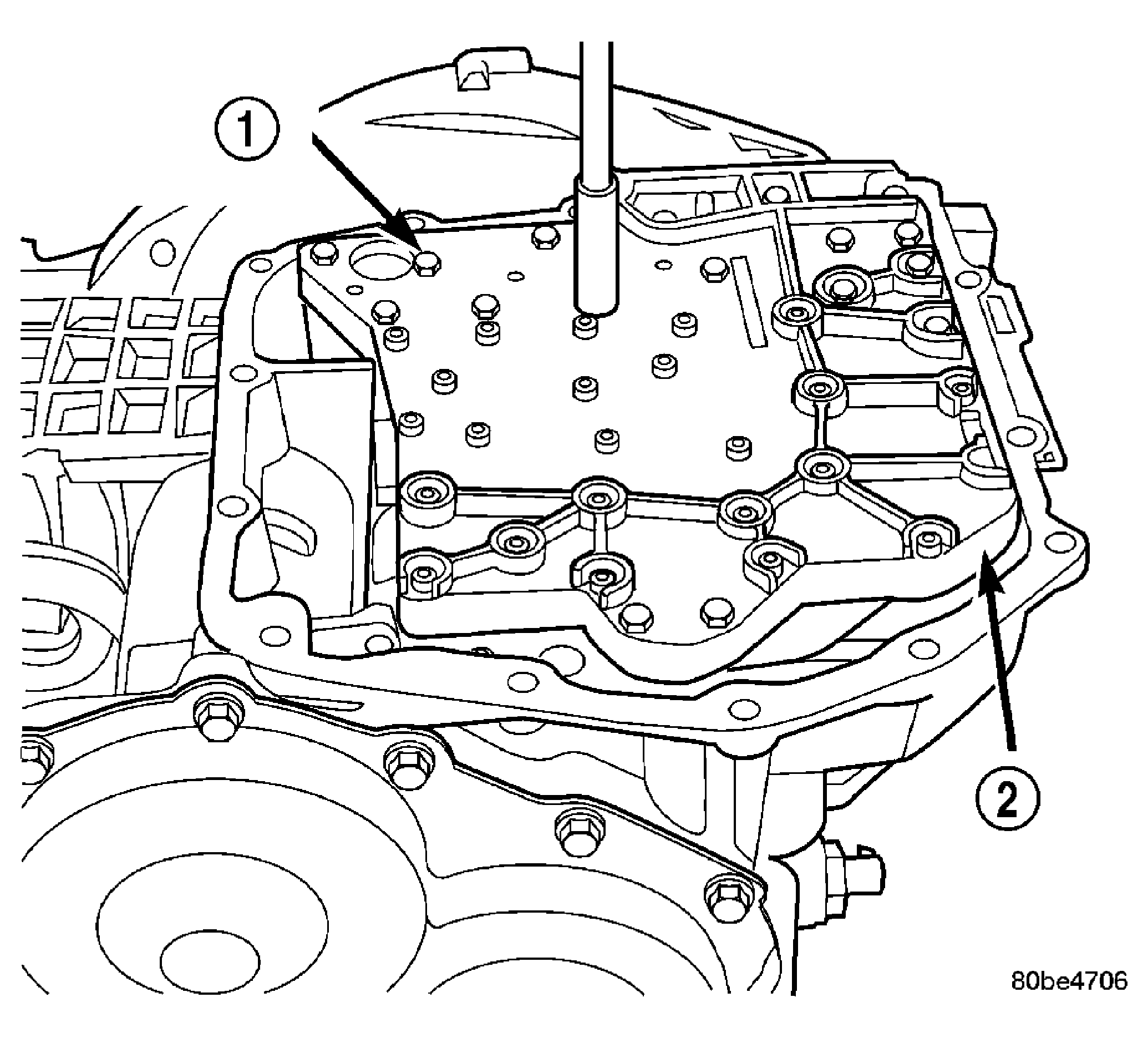

Fig 3: Valve Body-to-Case Bolts
Courtesy of DAIMLERCHRYSLER CORP.

1 - VALVE BODY ATTACHING BOLTS (18)

2 - VALVE BODY
Install transaxle oil filter. See Fig 4. Inspect the o-ring and replace if necessary.

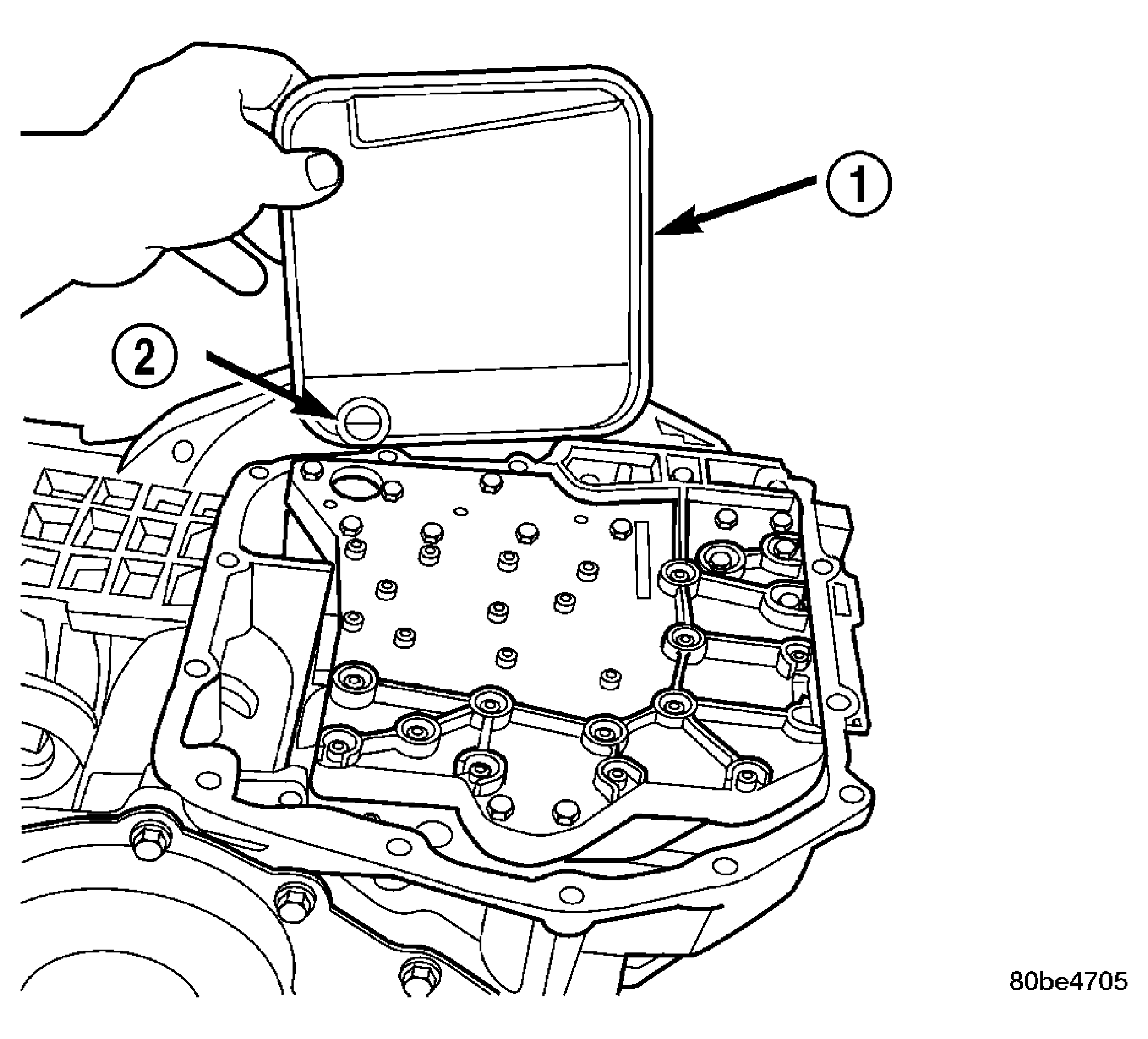

Fig 4: Install Oil Filter and O-Ring
Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL FILTER

2 - O-RING

Ensure the transaxle oil pan and transaxle case sealing surfaces are clean and dry. Install an 1/8" bead of Mopar(R) ATF RTV (MS-GF41) to the oil pan and install. See Fig 5. Torque oil pan-to-transaxle case bolts to 19 N.m (165 in. lbs.). See Fig 6.

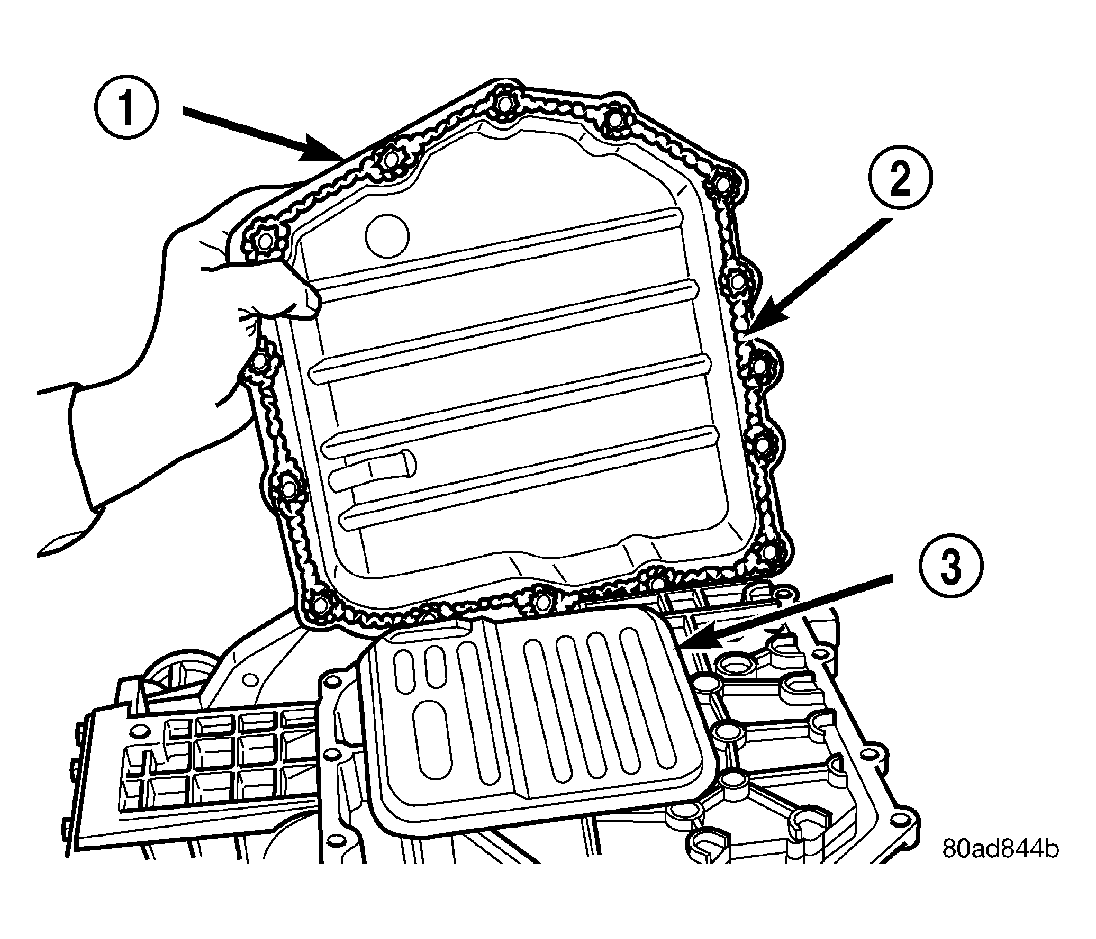

Fig 5: Oil Pan

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PAN

2 - 1/8 INCH BEAD OF MOPAR ATF RTV (MS-GF41)

3 - OIL FILTER

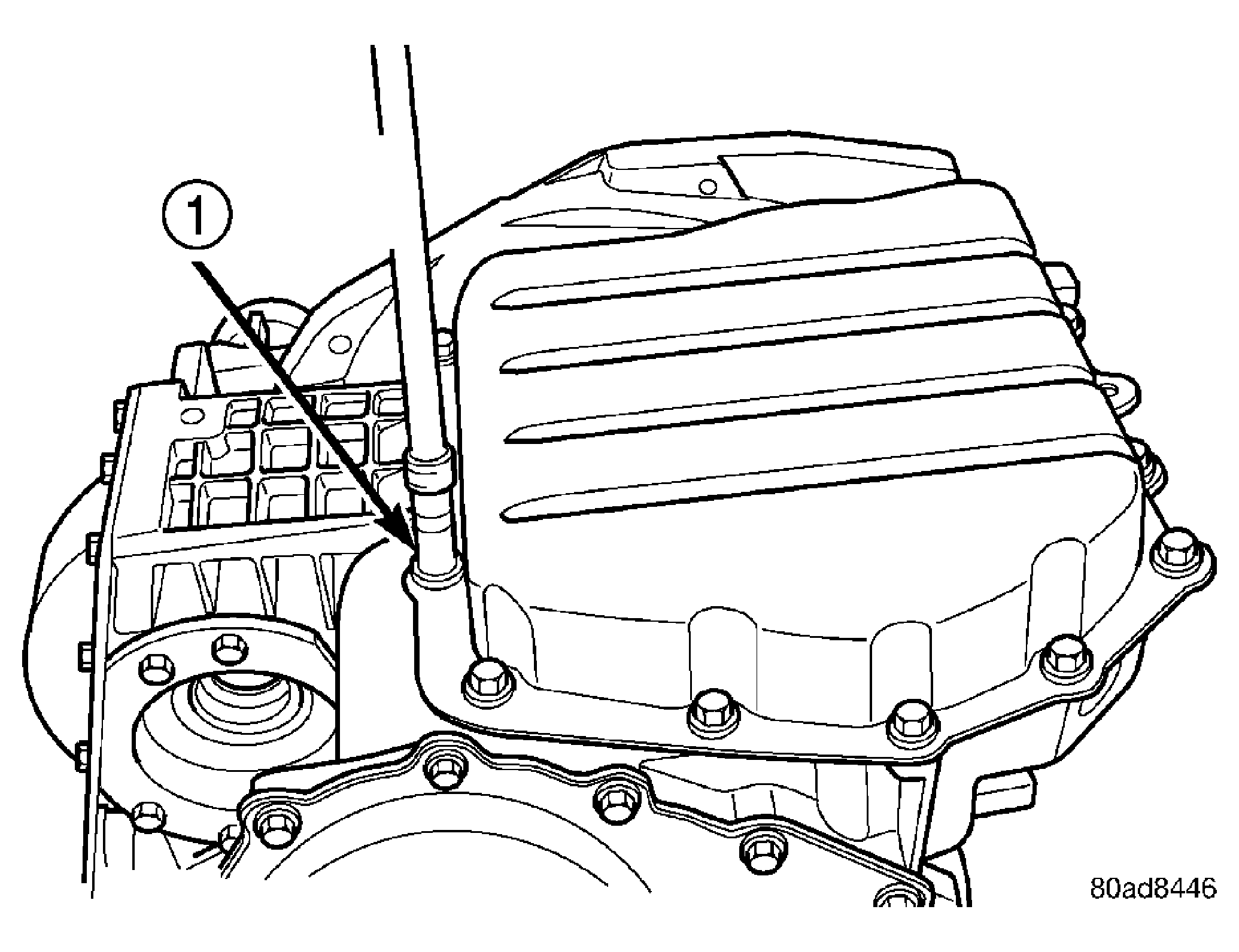

Fig 6: Oil Pan Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PAN BOLTS (USE RTV UNDER BOLT HEADS)

Lower vehicle.
Connect transmission range sensor connector.
Install manual valve lever to manual shaft.
Install gearshift cable to manual valve lever.
Connect battery negative cable.
Fill transaxle with Mopar(R) ATF +4 Transmission fluid. (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE/FLUID - STANDARD PROCEDURE)
