Shift Interlock Cable: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When installing interlock cable assembly, care must be taken not to bend exposed cable wire and slug at shifter end of cable.
  1. Route interlock cable into lower dash panel and towards console as removed.

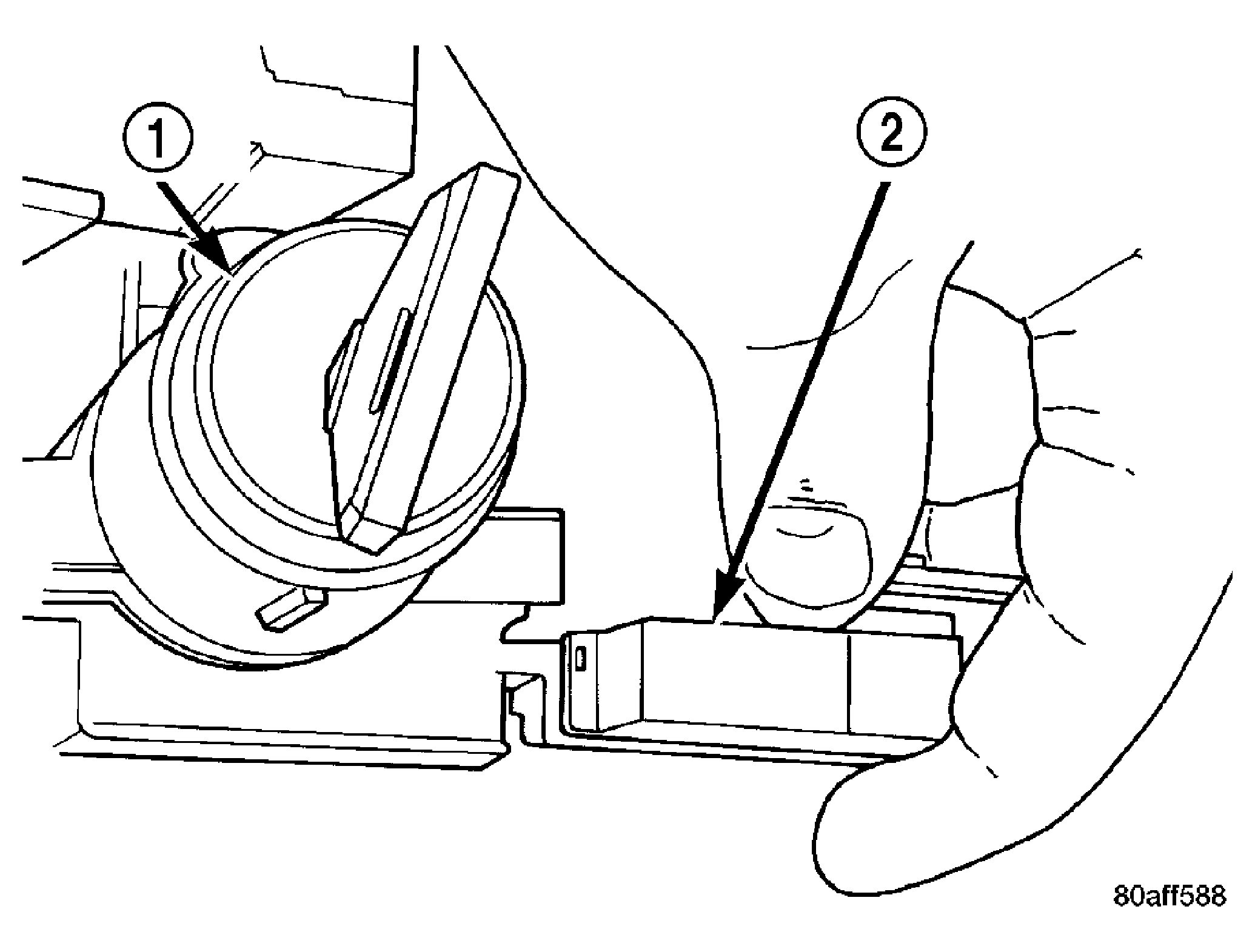

  2. Turn the ignition switch to the ON/RUN position. See Figure.
  3. Install the interlock cable into the interlock housing at the steering column. See Fig 1. Verify the cable snaps into the housing.

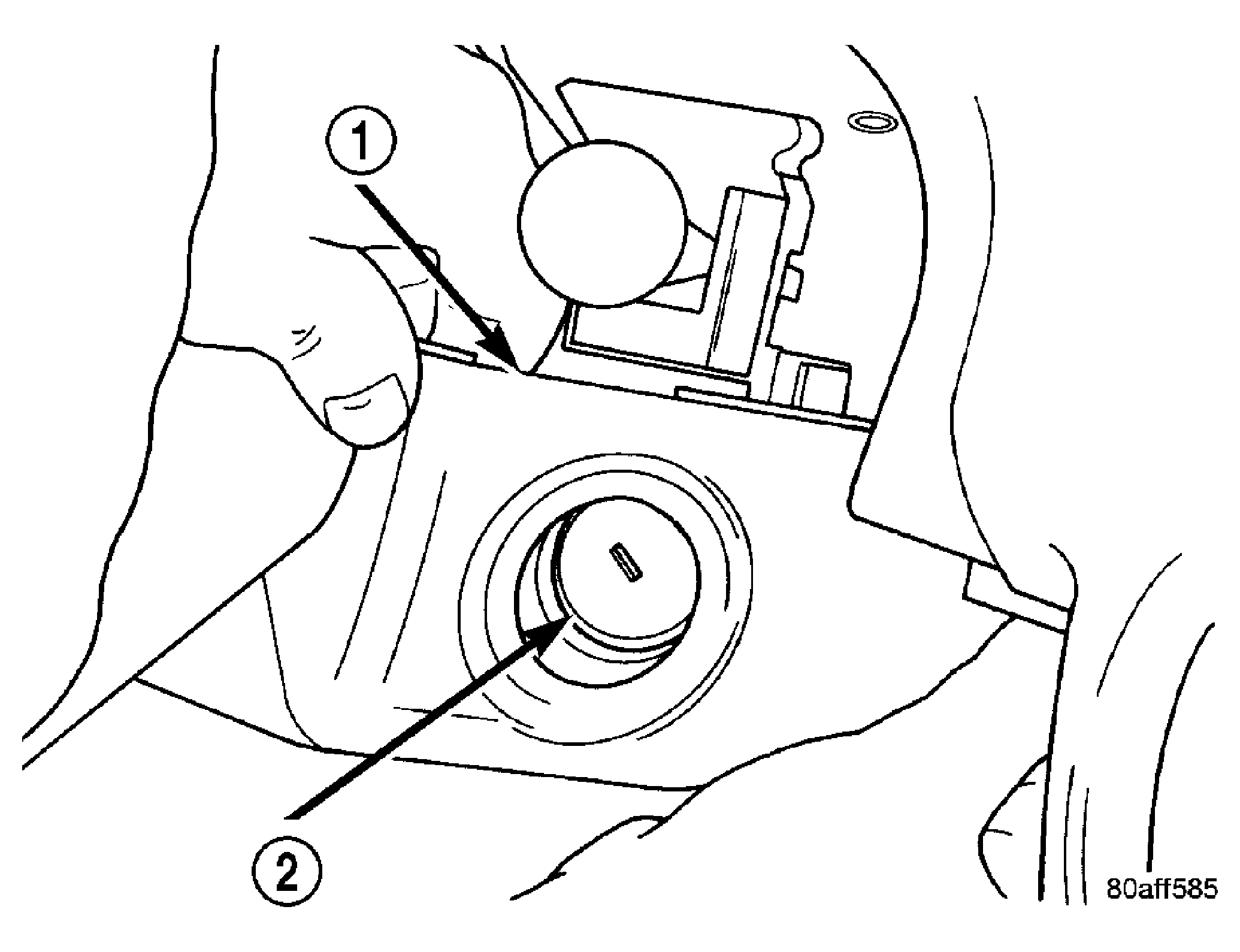

    Fig 1: Interlock Cable At Housing
    GC0031309Courtesy of DAIMLERCHRYSLER CORP.
    1 - IGNITION LOCK CYLINDER
    2 - INTERLOCK CABLE
  4. Install nylon cable retainer to lower column mounting stud.
  5. Connect BTSI solenoid connector.
  6. Insert interlock cable core wire into interlock adjustment lever groove. Make sure the interlock cable slug is seated in the groove. See Figure.
  7. Insert interlock cable adjuster end into bracket and snap into place. See Figure.
    NOTE: The Interlock Cable MUST be adjusted. (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE/SHIFT INTERLOCK CABLE - ADJUSTMENTS)
  8. Install center console assembly. See Figure.
  9. Install gearshift bezel. See Figure.
  10. Install the gearshift knob and tighten set screw to 2 N.m (20 in.lbs.). See Figure.
  11. Tilt wheel to full down position and install upper steering column shroud.
  12. Install steering column lower shroud. See Figure.
  13. Install lower knee bolster screws and knee bolster.

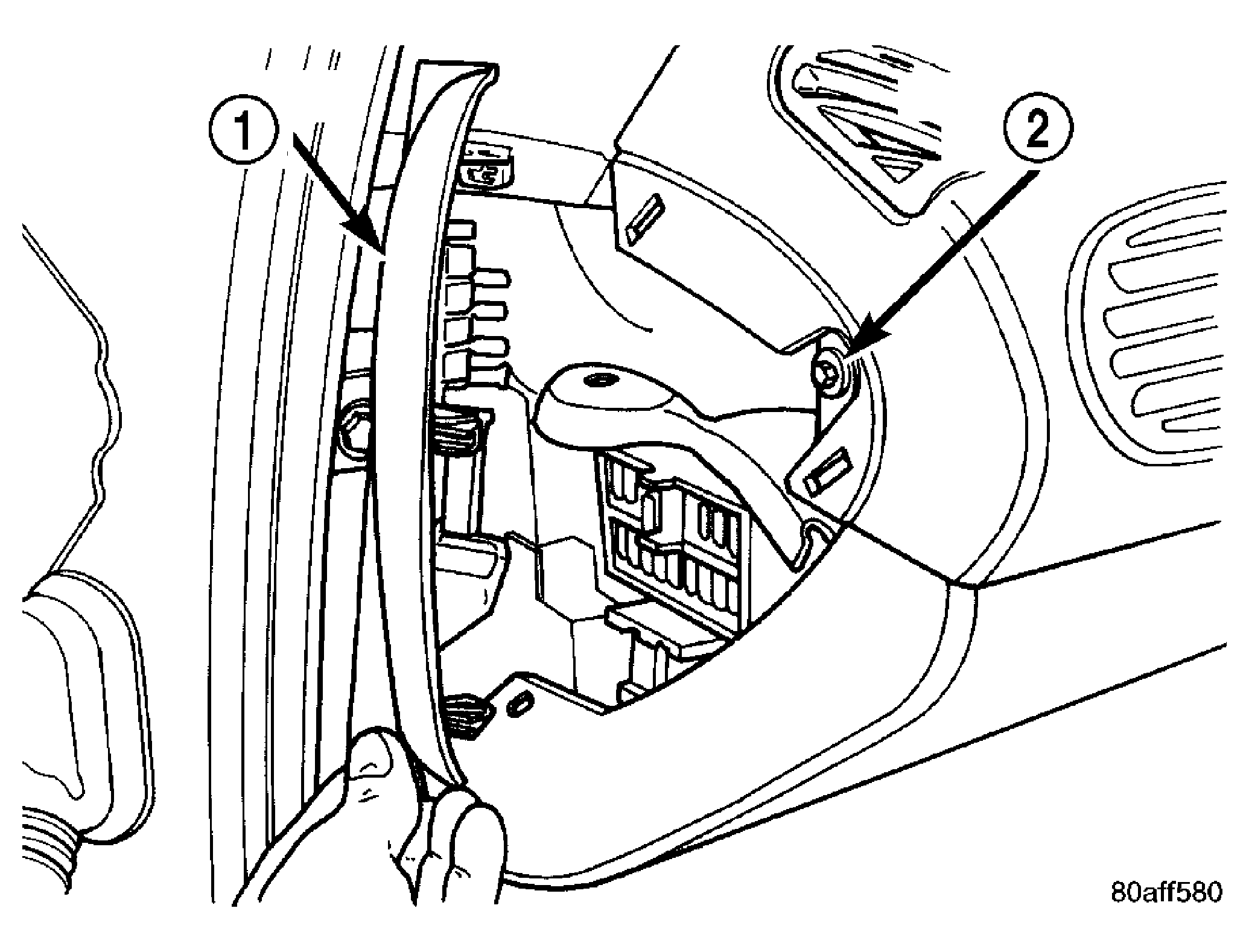

  14. Install fuse panel cover. See Figure.
  15. Connect the battery negative cable.
