Gearshift Linkage Adjustment: Adjustment

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set parking brake.
  2. Remove the gearshift knob set screw and knob.
  3. Remove gearshift selector bezel and lamp wiring.
  4. Install the gearshift knob set screw and knob.
  5. Place gearshift lever in the (P) (PARK) position.
  6. Loosen the gearshift cable adjuster nut at the shifter assembly. See Fig 1.

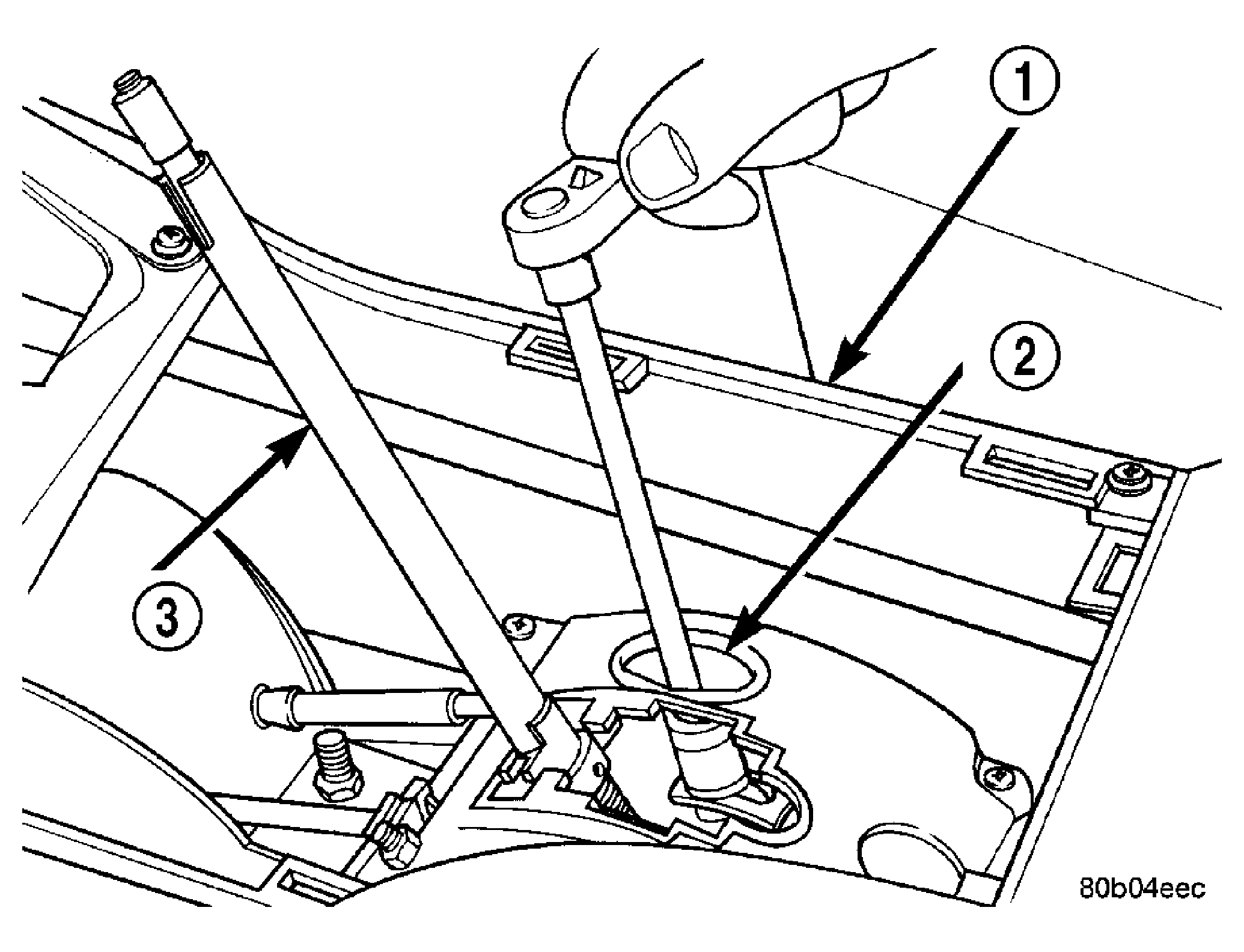

    Fig 1: Shift Cable Adjust Lever Nut
    GC0031292Courtesy of DAIMLERCHRYSLER CORP.
    1 - CONSOLE
    2 - ACCESS HOLE
    3 - SHIFTER HANDLE
  7. Move the gearshift lever on the transaxle to the park position.
  8. Verify the shift lever and transaxle are in park position. Tighten the gearshift cable adjuster nut at the shifter assembly. The gearshift linkage should now be properly adjusted.
  9. Check adjustment as follows:
    1. Detent position for neutral and drive should be within limits of hand lever gate stops.
    2. Key start must occur only when shift lever is in park or neutral positions.
